  • Stundenzähler: N03-110-401 (402) VDO

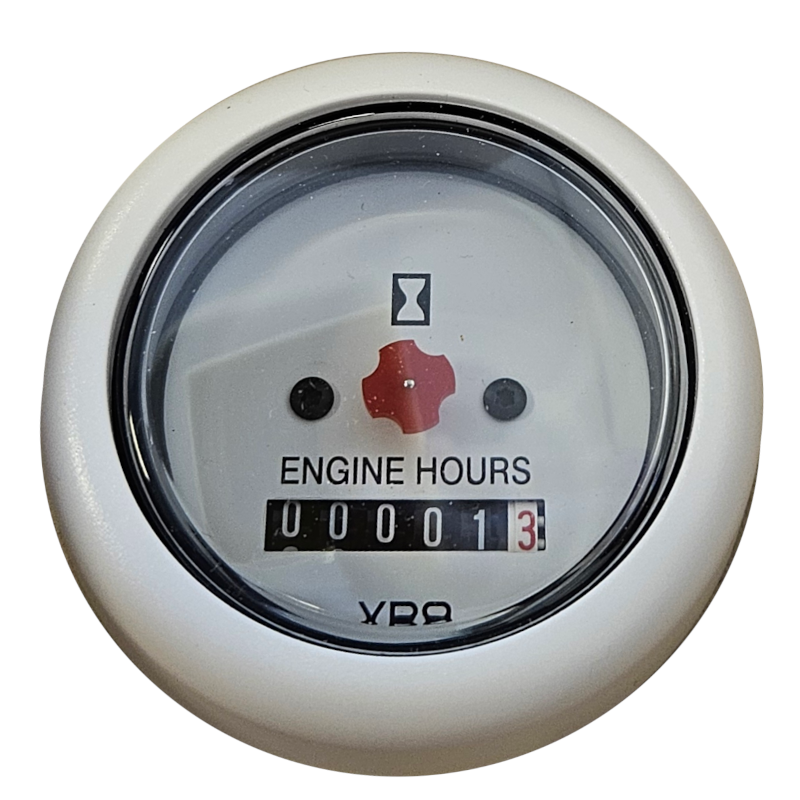

VDO OceanLine Betriebsstundenzähler Weiß 52mm

71,39 € (inkl. MwSt.)

59,00 € zzgl. MwSt.

Part-number:

VDO N03-110-401 (402)

  • Farbe: Weiß
  • Lochdurchmesser: 52 mm - 2 1/16"
  • Messbereich: 99999.9 Stunden
  • Front: Doppeldeckglas - Beschlagfrei
  • Retail Verpackung 1 EBZ
Logistical information:
Auslaufartikel begrenzt VerfügbarClick here for detailed information.
  • HS Code: 90291010
  • Weight: 0.45kg
Menge

Description OceanLine EHC Engine hours counter:

The OceanLine operating hours counter makes it easy to stick to an effective maintenance schedule.

VDO OceanLine White N03-110-401 (402) Full technical specifications:

Sizes and mounting:

Installation (Hole) diameter and Outside diameter: 52 mm - 2 1/16 Inch and 59 mm - 2 1/3 Inch
Installation depth: 87 mm
Locking height with Spinlock nut: Not possible
Locking height with bracket: 2 mm - 15 mm
Flushmount: Optional kit A2C59510864

Functionality:

EHC Measurement range: 0 - 99999.9 Hours
Signal Input: Plus ignition switch
Accuracy: ± 5 sec/d (At 14V DC - 23°C - NL45)
Connection: Included

Power supply:

Operating voltage: 12/24 V DC
Current consumption: < 140 mA
Short circuit protection: Not specified by VDO
Short circuit protection: Not specified by VDO

Dial & Pointer:

Dial: 6 Digits
Dial colour: White
Dial Illumination: Yes

Design:

Model: VDO OceanLine
Lens: Dual - Anti-glare - Anti-Fog
Standard bezel: Round white (Interchangeable)

Retail package:

  • VDO OceanLine N03-110-401White Engine hours counter
  • Mounting bracket
  • Bezel round white (Interchangeable)
  • Connector
  • Rubber seal
  • Illumination
  • Safety instructions and installation manual
VDO Continental I
N03-110-401 (402)

Technische Daten

Messbereich
0 - 99999.9 H
Warnlampe
Ohne
Betriebspannung
12 - 24 Volt DC
Verpackung
VDO Instrument Retail
Anwendung
VDO Motorüberwachung
Signal Analog
Plus contactslot Ontsteking
Serie
VDO Marine OceanLine
Farbe
Weiß
IP Klasse vorn
IP67 (IEC 60529)
Input
Analog
Einbau Abmessung
52 mm - 2 1/16 Inch
Funktionalität
Wartungsintervall
Frontring Austauschbar
Ja - Clip-on
Frontring Modell
Weiß Rund
Kommunikation
Analog
Kategorie
Betriebstundenzähler
Artikel Status
Auslaufartikel begrenzt Verfügbar
