  • Urentellers: N03-110-401 (402) VDO

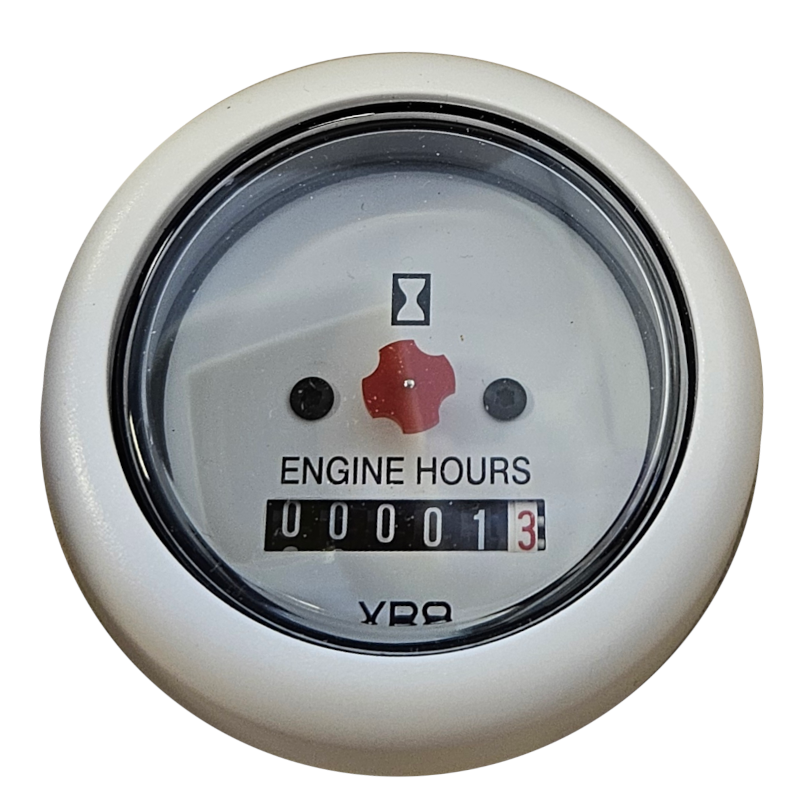

VDO OceanLine Urenteller Wit 52mm

€ 71,39 (incl. btw)

€ 59,00 excl. btw.

Part-number:

VDO N03-110-401 (402)

  • Kleur: Wit
  • Paneel gat diameter: 52 mm - 2 1/16"
  • Meetbereik: 99999.9 uur
  • Front: Dubbelglas - Anticondens
  • Retail verpakking 1 Urenteller
Logistical information:
Uitloopartikel beperkt leverbaarClick here for detailed information.
  • HS Code: 90291010
  • Weight: 0.45kg
Aantal

Description OceanLine EHC Engine hours counter:

The OceanLine operating hours counter makes it easy to stick to an effective maintenance schedule.

VDO OceanLine White N03-110-401 (402) Full technical specifications:

Sizes and mounting:

Installation (Hole) diameter and Outside diameter: 52 mm - 2 1/16 Inch and 59 mm - 2 1/3 Inch
Installation depth: 87 mm
Locking height with Spinlock nut: Not possible
Locking height with bracket: 2 mm - 15 mm
Flushmount: Optional kit A2C59510864

Functionality:

EHC Measurement range: 0 - 99999.9 Hours
Signal Input: Plus ignition switch
Accuracy: ± 5 sec/d (At 14V DC - 23°C - NL45)
Connection: Included

Power supply:

Operating voltage: 12/24 V DC
Current consumption: < 140 mA
Short circuit protection: Not specified by VDO
Short circuit protection: Not specified by VDO

Dial & Pointer:

Dial: 6 Digits
Dial colour: White
Dial Illumination: Yes

Design:

Model: VDO OceanLine
Lens: Dual - Anti-glare - Anti-Fog
Standard bezel: Round white (Interchangeable)

Retail package:

  • VDO OceanLine N03-110-401White Engine hours counter
  • Mounting bracket
  • Bezel round white (Interchangeable)
  • Connector
  • Rubber seal
  • Illumination
  • Safety instructions and installation manual
VDO Continental I
N03-110-401 (402)

Datasheet

Meetbereik
0 - 99999.9 H
Waarschuwings indicatie
Geen
Voedingsspanning
12 - 24 Volt DC
Verpakking
VDO Instrument retail
Toepassing
VDO Motorcontrole
Signaal analoog
Plus contactslot Ontsteking
Serie
VDO Marine OceanLine
Kleur
Wit
IP Klasse front
IP67 (IEC 60529)
Input
Analoog
Inbouwmaat
52 mm - 2 1/16 Inch
Functionaliteit
Service intervallen
Frontring verwisselbaar
Ja - Clip-on
Frontring model
Wit rond
Communicatie
Analoog
Categorie
Bedrijfsuren tellers
Artikel status
Uitloopartikel beperkt leverbaar
