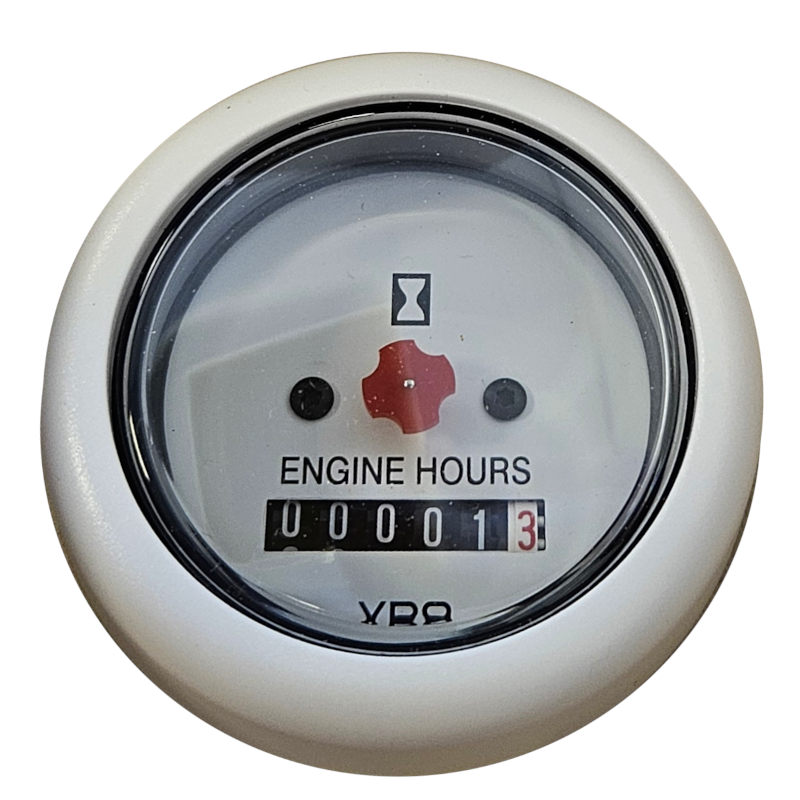

VDO OceanLine Hour Meter White 52mm
€71.39
(tax incl.)
€59.00 (VAT Excl.)
Part-number:
VDO N03-110-401 (402)
- Color: White
- Panel hole diameter: 52 mm - 2 1/16"
- Measuring Range: 99999.9 hours
- Front: Double glazing - Anti-fog
- Retail packaging 1 Hour meter
Logistical information:
- HS Code: 90291010
- Weight: 0.45kg
Description OceanLine EHC Engine hours counter:
The OceanLine operating hours counter makes it easy to stick to an effective maintenance schedule.
VDO OceanLine White N03-110-401 (402) Full technical specifications:
Sizes and mounting:
| Installation (Hole) diameter and Outside diameter: | 52 mm - 2 1/16 Inch and 59 mm - 2 1/3 Inch |
| Installation depth: | 87 mm |
| Locking height with Spinlock nut: | Not possible |
| Locking height with bracket: | 2 mm - 15 mm |
| Flushmount: | Optional kit A2C59510864 |
Functionality:
| EHC Measurement range: | 0 - 99999.9 Hours |
| Signal Input: | Plus ignition switch |
| Accuracy: | ± 5 sec/d (At 14V DC - 23°C - NL45) |
| Connection: | Included |
Power supply:
| Operating voltage: | 12/24 V DC |
| Current consumption: | < 140 mA |
| Short circuit protection: | Not specified by VDO |
| Short circuit protection: | Not specified by VDO |
Dial & Pointer:
| Dial: | 6 Digits |
| Dial colour: | White |
| Dial Illumination: | Yes |
Design:
| Model: | VDO OceanLine |
| Lens: | Dual - Anti-glare - Anti-Fog |
| Standard bezel: | Round white (Interchangeable) |
Retail package:
- VDO OceanLine N03-110-401White Engine hours counter
- Mounting bracket
- Bezel round white (Interchangeable)
- Connector
- Rubber seal
- Illumination
- Safety instructions and installation manual
N03-110-401 (402)
Data sheet
- Measuring range
- 0 - 99999.9 H
- Warning indication
- None
- Supply voltage
- 12 - 24 Volt DC
- Packaging
- VDO Instrument retail
- Application
- VDO Engine control
- Signal analog
- Plus ignition switch Ignition
- Series
- VDO Marine OceanLine
- Color
- White
- IP Class front
- IP67 (IEC 60529)
- Input
- Analogue
- Installation size
- 52 mm - 2 1/16 Inch
- Functionality
- Service intervals
- Front ring interchangeable
- Yes - Clip-on
- Front ring model
- White round
- Communication
- Analogue
- Category
- Engine Hours counters
- Article status
- Limited availability of run-out item
Specific References
- MPN
- N03-110-402
