VDO-Drucksender 0-80 PSI - 1/8-27 NPTF
112,25 €
(inkl. MwSt.)
92,77 € (Zzgl. MwSt)
Teilenummer:
VDO 360-081-030-023C
- Pressure range: 0 to 80 PSI
- Thread: 1/8 - 27 NPTF
- Sender resistance range: 10 - 184 Ohm
- Sensor signal: 1-pole common ground
- Warning contact: 6 PSI ± 2.0 PSI
Logistische Informationen:
- HS Code: 90269000
- Ean Code: 410359069092
- Gewicht: 0.12kg
Description engine oil pressure sender:
VDO 360 081 030 023C Full technical specifications:
Mechanical features:
| Pressure measuring range: | 0 - 80 PSI 0 - 5.5 Bar 0 - 550 KPa |
| Maximum pressure: | 30 Bar during 2 seconds |
| Thread: | 1/8 - 27 NPTF |

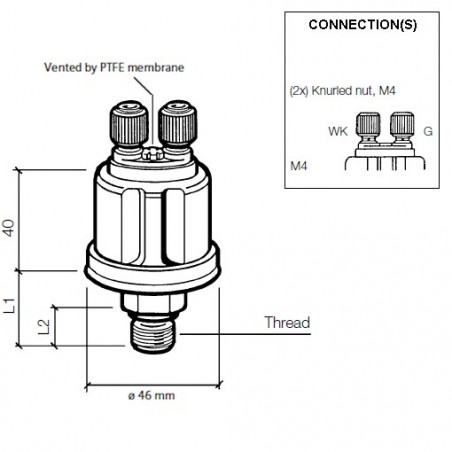

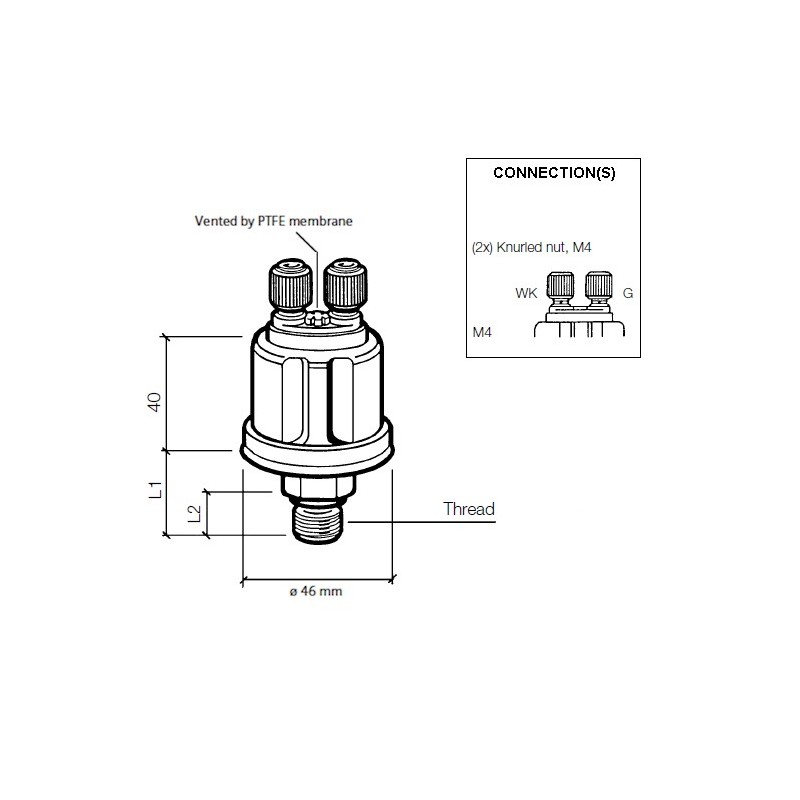

| Length thread + nut (L1): | 19.5 mm |
| Thread length (L2): | 11 mm |
| Torque: | 30 Nm |
| Operating temperature: | -25 °C to +100 °C |
| Pressure medium: | Oil - Fuel - Air |
Electrical features:
| Operating voltage: | 6 - 24 V DC |
| Resistor range: | 10 - 184 Ohm |
| Pressure sensor signal: | Single-Pole common ground |
| Warning contact: | 6 PSI ± 2.0 PSI |
| Warning contact switching capacity: | Maximum 5 Watt non-inductive |
| Warning contact features: | Closes with falling pressure |
| Pressure sender connector: | M4 Plastic knurled nut |
| Warning contact connector: | M4 Plastic knurled nut |
Datasheets and Tables:
| VDO 2014 Vehicle Electronics Catalog: | Page 123 - 125 |
| Type of connection: | A |
| VDO En Du Pressure senders Tables: | VDO Datasheet table 3 |
Retail package:
- VDO 360 081 030 023C Pressure sender 360-009
- VDO Sensors are - unless otherwise noted - delivered without connecting material
360-081-030-023C
Technische Daten
- Druckmessbereich
- 0 - 80 PSI
- Warnkontakt-Steckverbinder
- M4 Rändelmutter aus Kunststoff
- Warnkontakt
- 6 PSI ± 2,0 PSI
- Stromversorgung
- 6 - 24 Volt Gleichstrom
- Verpackung
- VDO Sensor Verkaufsverpackung
- Ausgabesignal
- 10 - 184 Ohm
- Anwendung
- VDO Motorsteuerung
- Signal analog
- 10 - 184 Ohm
- Sensor-Signal
- Minus in der Masse
- Sensor-Steckverbinder
- M4 Rändelmutter aus Kunststoff
- Spirale
- 1/8" - 27 NPTF Außengewinde
- Herkunftsland
- Deutschland
- Funktionalität
- Motoröldruck
- Typ des Steckverbinders
- M4 Rändelmutter aus Kunststoff
- Kommunikation
- Analog
- Kategorie
- Drucksensoren
- Status des Artikels
- Bestellbar
- Alternatives Format
- 360 081 030 023C
360/81/30/23C
Besondere Bestellnummern
- ean13
- 410359069092
- Hersteller-Teilenummer (MPN)
- 360-081-030-023C
VDO 360-081-030-023C
- Pressure range: 0 to 80 PSI
- Thread: 1/8 - 27 NPTF
- Sender resistance range: 10 - 184 Ohm
- Sensor signal: 1-pole common ground
- Warning contact: 6 PSI ± 2.0 PSI
