VDO-Drucksender 0-7 Bar – 1/8-27 NPTF
81,98 €
(inkl. MwSt.)
67,75 € (Zzgl. MwSt)
Teilenummer:
VDO 360-081-051-013C
- Pressure range: 0 to 7 Bar
- Thread: 1/8 - 27 NPTF
- Sender resistance range: 10 - 184 Ohm
- Sensor signal: 2-pole insulated return
- No warning contact
Logistische Informationen:
- HS Code: 90269000
- Ean Code: 4103590691453
- Gewicht: 0.11kg
Description engine oil pressure sender:
VDO 360 081 051 013C Full technical specifications:
Mechanical features:
| Pressure measuring range: | 0 - 7 Bar 0 - 101.5 PSI 0 - 700 KPa |
| Maximum pressure: | 30 Bar during 2 seconds |
| Thread: | 1/8 - 27 NPTF |

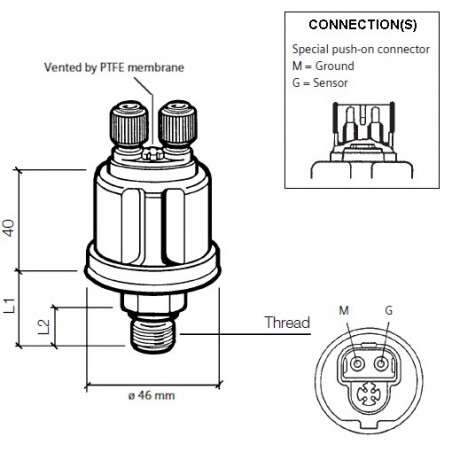

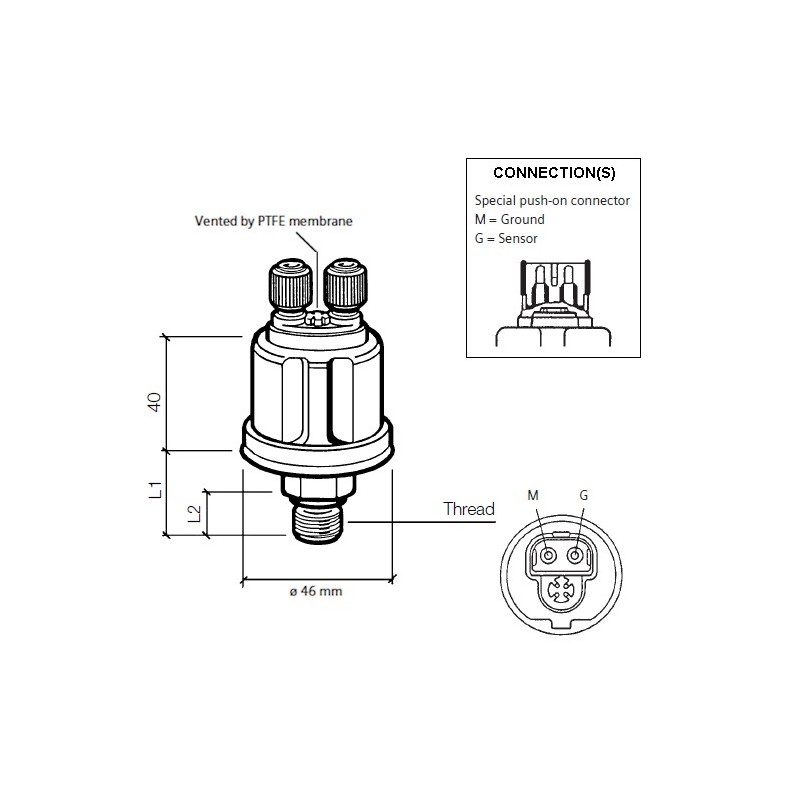

| Length thread + nut (L1): | 19.5 mm |
| Thread length (L2): | 11 mm |
| Torque: | 30 Nm |
| Operating temperature: | -25 °C to +100 °C |
| Pressure medium: | Oil - Fuel - Air |
Electrical features:
| Operating voltage: | 6 - 24 V DC |
| Resistor range: | 10 - 184 Ohm |
| Pressure sensor signal: | Dual-Pole insulated return |
| Warning contact: | None |
| Optional warning contact: | VDO A2C59510886 Makepoint Switch |
| Pressure sender connector: | Bosch special push-on connector |
Datasheets and Tables:
| VDO 2014 Vehicle Electronics Catalog: | Page 126 - 127 |
| Type of connection: | M |
| VDO En Du Pressure senders Tables: | Not specified by VDO |
Retail package:
- VDO 360 081 051 013C Pressure sender
- VDO Sensors are - unless otherwise noted - delivered without connecting material
360-081-051-013C
Technische Daten
- Druckmessbereich
- 0 - 7 Bar
- Warnkontakt
- Nein
- Stromversorgung
- 6 - 24 Volt Gleichstrom
- Verpackung
- VDO Sensor Verkaufsverpackung
- Ausgabesignal
- 10 - 184 Ohm
- Anwendung
- VDO Motorsteuerung
- Signal analog
- 10 - 184 Ohm
- Sensor-Signal
- Isoliert von der Masse
- Sensor-Steckverbinder
- Bosch Steckverbinder 2,8x0,8mm
- Spirale
- 1/8" - 27 NPTF Außengewinde
- Herkunftsland
- Deutschland
- Funktionalität
- Motoröldruck
- Typ des Steckverbinders
- Bosch Steckverbinder 2,8x0,8mm
- Kommunikation
- Analog
- Kategorie
- Drucksensoren
- Status des Artikels
- Bestellbar
- Alternatives Format
- 360 081 051 013C
360/81/51/13C
Besondere Bestellnummern
- ean13
- 4103590691453
- Hersteller-Teilenummer (MPN)
- 360-081-051-013C
VDO 360-081-051-013C
- Pressure range: 0 to 7 Bar
- Thread: 1/8 - 27 NPTF
- Sender resistance range: 10 - 184 Ohm
- Sensor signal: 2-pole insulated return
- No warning contact
