VDO-Drucksender 0-5 Bar - M12
93,47 €
(inkl. MwSt.)
77,25 € (Zzgl. MwSt)
Teilenummer:
VDO 360-081-030-006C
- Pressure range: 0 to 5 Bar
- Thread: M12 x 1.5
- Sender resistance range: 10 - 184 Ohm
- Sensor signal: 1-pole common ground
- Warning contact: 0.60 Bar ± 0.15 Bar
Logistische Informationen:
- HS Code: 90269000
- Ean Code: 4103590949585
- Gewicht: 0.12kg
Description engine oil pressure sender:
VDO 360 081 030 006C Full technical specifications:
Mechanical features:
| Pressure measuring range: | 0 - 5 Bar 0 - 72.5 PSI 0 - 500 KPa |
| Maximum pressure: | 30 Bar during 2 seconds |
| Thread: | M12 x 1.5 |

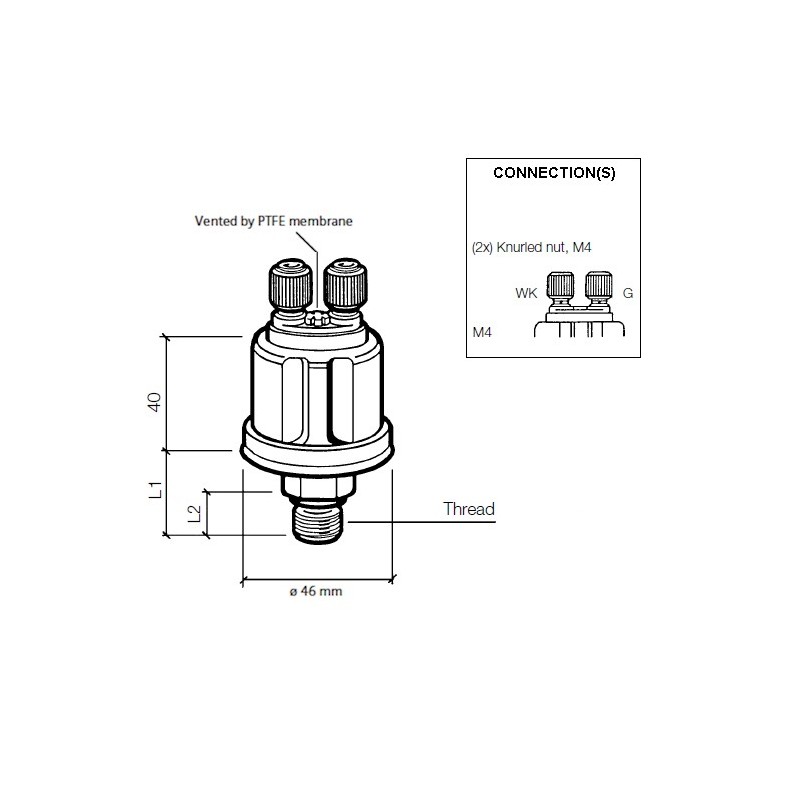

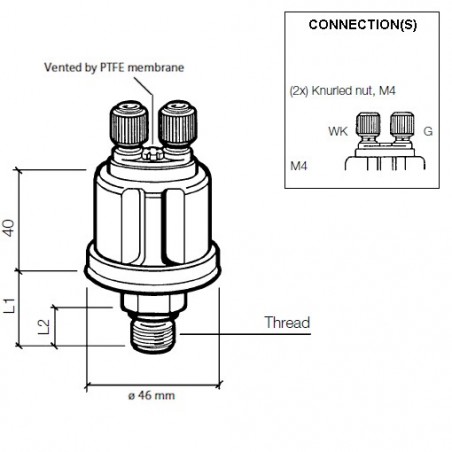

| Length thread + nut (L1): | 20.5 mm |
| Thread length (L2): | 12 mm |
| Torque: | 40 Nm |
| Operating temperature: | -25 °C to +100 °C |
| Pressure medium: | Oil - Fuel - Air |
Electrical features:
| Operating voltage: | 6 - 24 V DC |
| Resistor range: | 10 - 184 Ohm |
| Pressure sensor signal: | Single-Pole common ground |
| Warning contact: | 0.60 Bar ± 0.15 Bar |
| Warning contact switching capacity: | Maximum 5 Watt non-inductive |
| Warning contact features: | Closes with falling pressure |
| Pressure sender connector: | M4 Plastic knurled nut |
| Warning contact connector: | M4 Plastic knurled nut |
Datasheets and Tables:
| VDO 2014 Vehicle Electronics Catalog: | Page 123 - 125 |
| Type of connection: | A |
| VDO En Du Pressure senders Tables: | VDO Datasheet table 3 |
Retail package:
- VDO 360 081 030 006C Pressure sender
- VDO Sensors are - unless otherwise noted - delivered without connecting material
360-081-030-006C
Technische Daten
- Druckmessbereich
- 0 - 5 bar
- Warnkontakt-Steckverbinder
- M4 Rändelmutter aus Kunststoff
- Warnkontakt
- 0,60 bar ± 0,15 bar
- Stromversorgung
- 6 - 24 Volt Gleichstrom
- Verpackung
- VDO Sensor Verkaufsverpackung
- Ausgabesignal
- 10 - 184 Ohm
- Anwendung
- VDO Motorsteuerung
- Signal analog
- 10 - 184 Ohm
- Sensor-Signal
- Minus in der Masse
- Sensor-Steckverbinder
- M4 Rändelmutter aus Kunststoff
- Spirale
- M12 x 1,5 Außengewinde
- Herkunftsland
- Deutschland
- Funktionalität
- Motoröldruck
- Typ des Steckverbinders
- M4 Rändelmutter aus Kunststoff
- Kommunikation
- Analog
- Kategorie
- Drucksensoren
- Status des Artikels
- Bestellbar
- Alternatives Format
- 360 081 030 006C
360/81/30/6C
Besondere Bestellnummern
- ean13
- 4103590949585
- Hersteller-Teilenummer (MPN)
- 360-081-030-006C
VDO 360-081-030-006C
- Pressure range: 0 to 5 Bar
- Thread: M12 x 1.5
- Sender resistance range: 10 - 184 Ohm
- Sensor signal: 1-pole common ground
- Warning contact: 0.60 Bar ± 0.15 Bar
