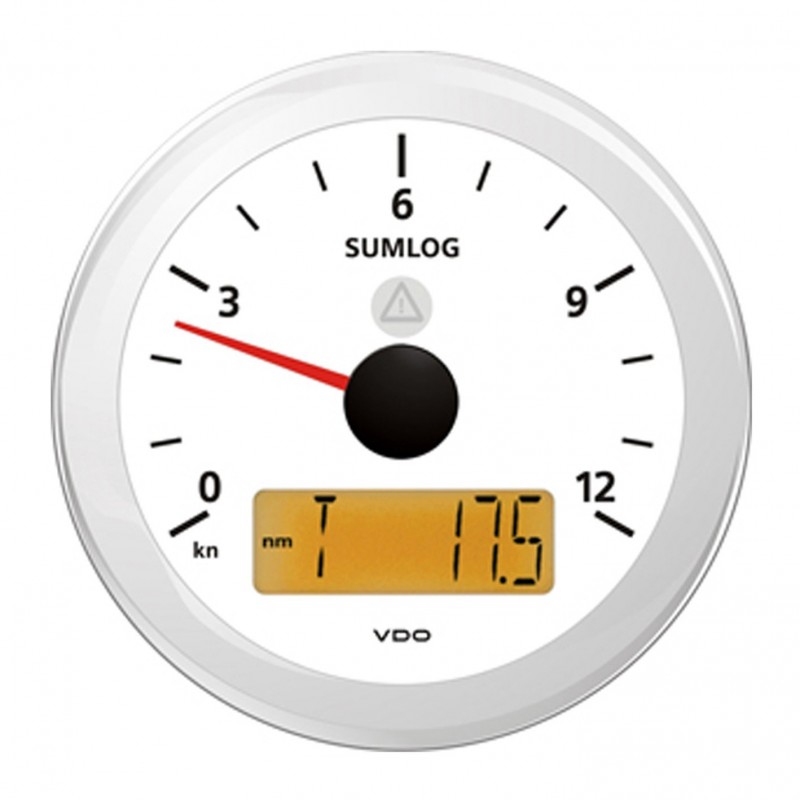

Veratron ViewLine Sumlog & Kompass Kit 12kn Weiß 85mm
240,79 €
(inkl. MwSt.)
199,00 € (Zzgl. MwSt)
Teilenummer:
Veratron A2C59514790
- Colour: White
- Panel hole diameter: 85 mm - 3 3/8"
- Range: 0 to 12 Knots
- Lens: Dual - Anti-Fog
- Replacing Sumlog kit on request
Logistische Informationen:
- Gewicht: 0.50kg
Description ViewLine Sumlog Combi compass:
Veratron ViewLine A2C59514790 Full technical specifications:
Sizes and mounting:
| Installation (Hole) diameter and Outside diameter: | 85 mm - 3 3/8 Inch and 93 mm - 3 2/3 Inch |
| Installation depth: | 50 mm |
| Locking height with Spinlock nut: | 0.5 mm - 20 mm |
| Locking height with bracket: | 2 mm - 15 mm (Optional) |
| Flushmount: | Optional kit A2C59510864 |
Functionality:
| Analog speed range: | 0 to 12 Knots |
| Display functionality (Depending on sender type): | Compass course Course Over Ground GPS-Time Steering aid Voltmeter Trip Odometer |
| Signal input Sumlog Combi Compass: | NMEA 0183 GPS and or Compass sender |
| Compatible sensors:: | Airmar WeatherStation® PB-100 Airmar WeatherStation® PB-150 (with GPS) Airmar WeatherStation® PB-200 (with GPS & Compass) |
| Accuracy: | ± 2.5% of full scale reading |
| Connection: | Hirschmann 8 & 14 pins MQS connector |
Power supply:
| Operating voltage: | 8.5 to 32 V DC |
| Current consumption: | < 150 mA including warning LED |
| Reverse polarity protection: | Yes - 5 Minutes |
| Short circuit protection: | Yes - 1 Minute |
Dial & Pointer:
| Deflection angle: | 240° |
| Dial colour: | White |
| Dial Illumination: | Amber LED backlight 605nm |
| Pointer: | Red LED backlight |
| Warning LED: | Red (632nm) |
| Programming: | Veratron USB software kit |
Design:
| Model: | Veratron ViewLine Marine |
| Lens: | Dual - Anti-glare - Anti-Fog |
| Standard bezel: | Round white (Interchangeable) |
Protection and standards:
| Front protection class: | IP67 (IEC 60529) |
| Rear protection class: | IP52 |
| Relative humidity: | Maximum 95% |
| Operating temperature: | -30°C to +80°C (Plastic bezel) |
| CE standard: | Yes |
| DNV GL Certification: | Yes |
| Mechanical shock continuous: | 25G - 6ms - 1Hz |
| Mechanical single shock | 100G - 11ms |
| Free fall test: | 1 Meter - 3x |
| Housing flame retarding: | UL94-VD |
Retail package:
- Veratron ViewLine White A2C59514790 Sumlog & Compass
- Spinlock nut
- Bezel round white (Interchangeable)
- Adapter cable with 8 & 14 pins Hirschmann MQS connector
- Rubber seal
- QR code
- Safety instructions and installation manual
- Veratron X11-719-000-086 Veratron Smart GPS-Sensor included
A2C59514790
Technische Daten
- Messbereich der Geschwindigkeit
- 0 - 12 Kn
- Warnhinweis
- Rote LED über Plus und Minus
- Stromversorgung
- 8 - 32 Volt Gleichstrom
- Verpackung
- VDO Kit (Instrument + Sensor)
- Anwendung
- VDO Navigation
- Reihe
- Veratron ViewLine Einzelhandel
- Linse
- Doppelter Antibeschlagschutz aus Kunststoff
- Farbe
- Weiß
- IP-Klasse vorne
- IP67 (IEC 60529)
- Eingabe
- NMEA-0183
- Größe der Installation
- 85 mm - 3 3/8 Zoll
- Funktionalität
- Sumlog Kombi-Kompass
- Vorderer Ring austauschbar
- Ja - Clip-on
- Modell mit vorderem Ring
- Weiße Runde
- Kommunikation
- NMEA 0183
- Kategorie
- Navigationsinstrumente
- Status des Artikels
- Abgelaufenes Produkt
Besondere Bestellnummern
- Hersteller-Teilenummer (MPN)
- A2C59514790
Veratron A2C59514790
- Colour: White
- Panel hole diameter: 85 mm - 3 3/8"
- Range: 0 to 12 Knots
- Lens: Dual - Anti-Fog
- Replacing Sumlog kit on request
