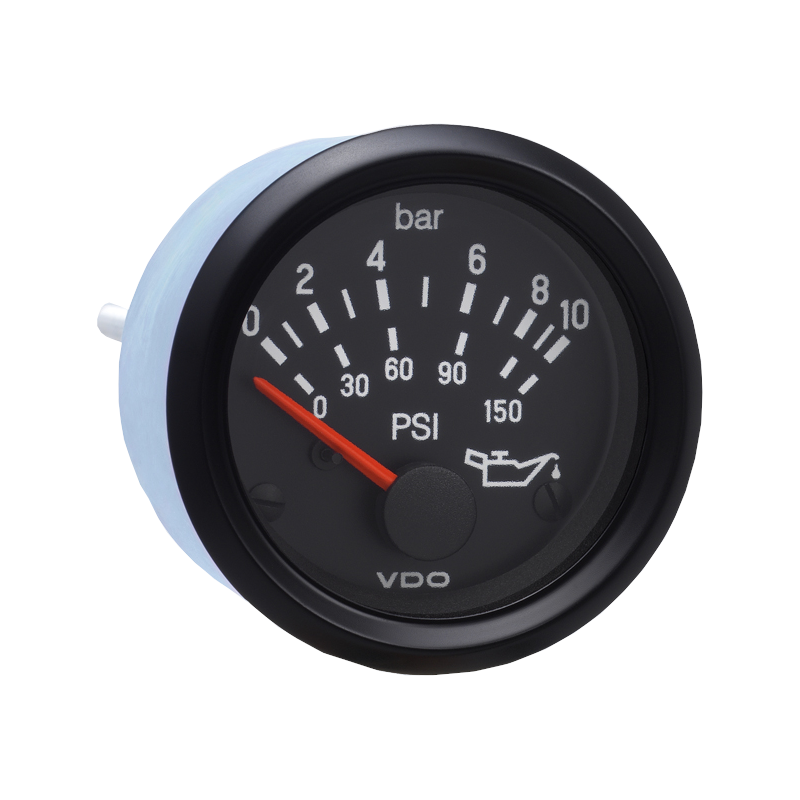

10 Pieces VDO Cockpit International Engine oil pressure 10Bar and 150 PSI 52mm 24V
639,12 €
(impuestos inc.)
528,20 € impuestos excl.
Part-number:
VDO 350-040-015C
- Colour: Black
- Panel hole diameter: 52 mm - 2 1/16"
- Range: 0 to 10 Bar & 150PSI
- Operating voltage: 24 Volt DC
- Bulk package 10x Pressue gauge
Logistical information:
- HS Code: 85122000
- Ean Code: 4103590690661
- Weight: 0.90kg
Description Cockpit International Pressure gauge:
VDO Cockpit International 350 040 015G specifications:
Sizes and mounting:
| Installation (Hole) diameter and Outside diameter: | 52 mm - 2 1/16 Inch en 59.25 mm - 2 1/3 Inch |
| Installation depth: | 67.5 mm |
| Locking height with Spinlock nut: | Not available |
| Locking height with bracket: | 0.5 mm - 8 mm |
| Flushmount: | None |
Functionality:
| Engine oil pressure range: | 0 to 10 Bar & 150 PSI |
| Sensor signal engine oil pressure gauge: | VDO Pressure sender 10 to 184 Ohm |
| Accuracy: | Not specified by VDO |
| Connection: | AMP Male blade connector 6,3 x 0,8mm (3x) |
| Illumination connection: | AMP Male blade connector 6,3 x 0,8mm (2x) |
Power supply:
| Operating voltage: | 21.5 - 30 Volt DC |
| Current consumption without illumination: | 82 mA |
| Reverse polarity protection: | Yes |
| Short circuit protection: | Not specified by VDO |
Dial & Pointer:
| Deflection angle: | 90° |
| Dial colour: | Black |
| Dial Illumination: | Floodlight 24V - 2 Watt White - Green - Red |
| Pointer: | Red backlight |
| Warning indication: | None |
| Programming: | None |
Design:
| Model: | Cockpit International |
| Lens: | Single - Anti-glare |
| Standard bezel: | Triangular black (Threaded ring) |
Protection and standards:
| Front protection class: | IP64 (DIN 40050) - Ozon proof - UV proof |
| Rear protection class: | IP42 (DIN 40050) |
| Relative humidity: | Not specified by VDO |
| Operating temperature: | -30°C to +85°C |
| CE standard: | Yes |
| DNV GL Certification: | Not specified by VDO |
| Mechanical shock 8 hours: | Max: 1G - 25Hz - 2000Hz |
| EMC test: | According to EN 13309 and ISO 13766 |
| Nominal position: | NL 0 to NL 90 - DIN 16257 |
| Housing: | Plastic flame retardant |
Retail package:
- VDO Cockpit International 350 040 015G Pressure gauge
- Steel bracket zinc-plated and chromatized
- Connecting material order separately
350-040-015C
Ficha técnica
- Rango de medición de presión
- 0 - 10 Bar
- Indicación de advertencia
- No
- Predecesor
- 350-921B
- Fuente de alimentación
- 21.5 - 30 Voltios DC
- Embalaje
- VDO Instrumentos OEM a granel
- Aplicación
- VDO Control del motor
- Señal analógica
- 10 - 184 Ohmios
- Serie
- VDO Cockpit Internacional
- Escala de medidor
- Doble
- Lente
- Plástico solo antideslumbrante
- País de origen
- Malasia
- Color
- Negro
- Frente de clase IP
- IP64 (DIN 40050)
- Tamaño incorporado
- 52 mm - 2 1/16 pulgadas
- Funcionalidad
- Presión del aceite del motor
- Anillo delantero intercambiable
- Sí - Se requieren herramientas especiales
- Modelo frontring
- Triángulo negro
- Comunicación
- Análogo
- Categoría
- Manómetros
- Estado del artículo
