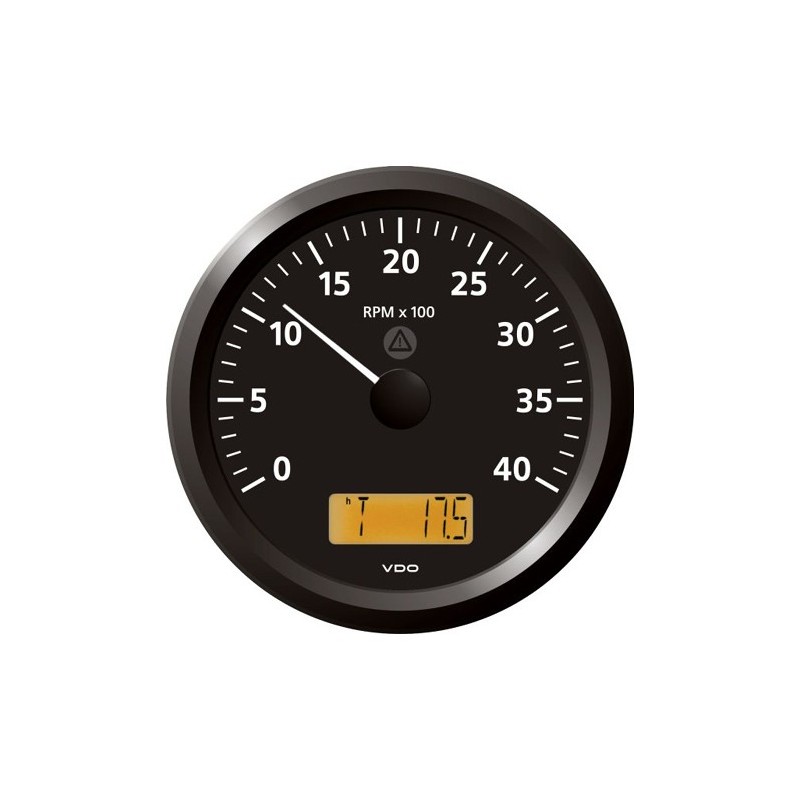

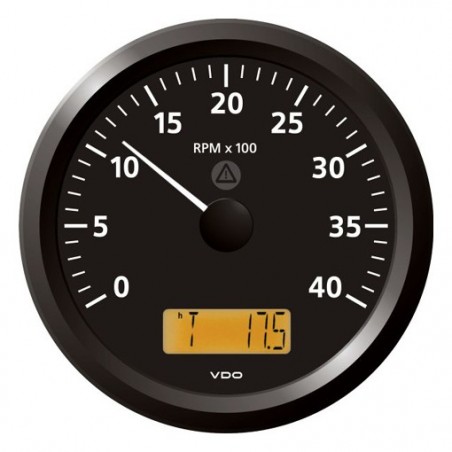

Veratron ViewLine Tachometer 4.000 RPM Black 110mm
190,87 €
(impuestos inc.)
157,74 € impuestos excl.
Part-number:
Veratron A2C59512414
- Colour: Black
- Panel hole diameter: 110 mm - 4 3/8"
- Range: 0 to 4.000 RPM
- Lens: Single
- Retail package 1 Tachometer
Logistical information:
- HS Code: 90292031
- Weight: 0.50kg
Description ViewLine Multifunction tachometer:
Veratron ViewLine A2C59512414 Full technical specifications:
Sizes and mounting:
| Installation (Hole) diameter and Outside diameter: | 110 mm - 4 3/8 Inch and 126 mm - 5 Inch |
| Installation depth: | 50 mm |
| Locking height with Spinlock nut: | 0.5 mm - 20 mm |
| Locking height with bracket: | 2 mm - 15 mm (Optional) |
| Flushmount: | Optional kit A2C59510864 |
Functionality:
| Analog RPM measurement range: | 0 to 4.000 RPM |
| Display functionality: | Engine hours counter Voltmeter Clock |
| Sensor signal input tachometer: | Alternator terminal: W Ignition terminal: 1 Outboard engine: Lightning coil NMEA 0183 |
| Accuracy: | ± 2.5% of full scale reading |
| Connection: | Hirschmann 8 & 14 pins MQS connector |
Power supply:
| Operating voltage: | 8 to 32 V DC |
| Current consumption: | < 175 mA including warning LED |
| Reverse polarity protection: | Yes - 1 Minutes |
| Short circuit protection: | Yes - 1 Minute |
Dial & Pointer:
| Deflection angle: | 240° |
| Dial colour: | Black |
| Dial Illumination: | Amber LED backlight 605nm |
| Pointer: | White LED backlight |
| Warning LED: | Red (632nm) |
| Programming: | Veratron USB software kit |
Design:
| Model: | Veratron ViewLine Standard |
| Lens: | Single - Anti-glare |
| Standard bezel: | Triangular black (Interchangeable) |
Protection and standards:
| Front protection class: | IP67 (IEC 60529) |
| Rear protection class: | IP52 |
| Relative humidity: | Maximum 95% |
| Operating temperature: | -30°C to +80°C (Plastic bezel) |
| CE standard: | Yes |
| DNV GL Certification: | Yes |
| Mechanical shock continuous: | 25G - 6ms - 1Hz |
| Mechanical single shock | 100G - 11ms |
| Free fall test: | 1 Meter - 3x |
| Housing flame retarding: | UL94-VD |
Retail package:
- Veratron ViewLine Black A2C59512414 Multifunction Tachometer
- Spinlock nut
- Bezel triangle black (Interchangeable)
- Adapter cable with 8 & 14 pins Hirschmann MQS connector
- Rubber seal
- QR code
- Safety instructions and installation manual
- Veratron RPM sender not included
A2C59512414
Ficha técnica
- Rango de medición de velocidad
- 0 - 4.000 RPM
- Indicación de advertencia
- LED rojo Vía más y menos
- Fuente de alimentación
- 8 - 32 Voltios DC
- Embalaje
- VDO venta al por menor de instrumentos
- Aplicación
- VDO Control del motor
- Señal analógica
- Señal de impulso de tacho
- Serie
- Veratron ViewLine Venta al por menor
- Lente
- Anticondens dobles de plástico
- Color
- Negro
- Frente de clase IP
- IP67 (IEC 60529)
- Entrada
- Análogo
- Tamaño incorporado
- 110 mm - 4 3/8 pulgadas
- Funcionalidad
- Tacómetros multifunción
- Anillo delantero intercambiable
- Sí - Clip-on
- Modelo frontring
- Triángulo negro
- Comunicación
- Análogo
- Categoría
- Tacómetros
- Estado del artículo
- Disponibilidad limitada del elemento de caño
