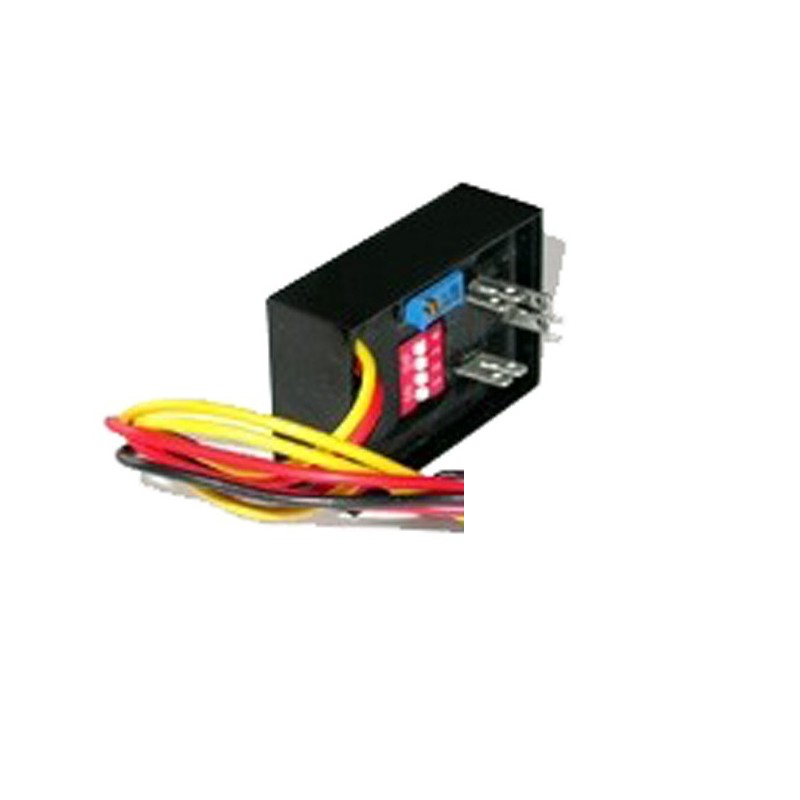

Veratron ViewLine Make Point Warning Switch - 12 Volt DC
89,54 €
(impuestos inc.)
74,00 € impuestos excl.
Part-number:
2910002025200
- VDO warning module
- Between sender and gauge
- For compatibility see specifications
- Retail package 1 Make point switch
Logistical information:
- HS Code: 90269000
- Weight: 0.26kg
Description VDO ViewLine Make point switch:
VDO ViewLine gauges have a built-in LED warning light. This LED can warn for example at a high temperature or low oil pressure. To use this feature the application of a VDO Make point switch is necessary. The 2910002025200 is compatible with Viewline gauges that have a resistance value as an input signal. Installation is easy. Plug the make point switch in the instrument and connect the sensor to the switch. Using the DIP switches and the potentiometer enables you to effortlessly correct limit value. In addition to the control of the red LED you can also connect a VDO buzzer or external control light can also be connected.
VDO 2910002025200 Warning module specifications:
VDO Make point switch features:
| Compatible with VDO ViewLine gauges: | Temperature Pressure Fuel level Trim Rudder position |
| Adjustments: | Stepless 0-100% |
| Settings: | 4 x DIP Switch and Potentiometer |
| Operating voltage: | 12 - 24 V DC |
| Operating temperature: | -20° C to +70° C |
A2C59510886
Ficha técnica
- Predecesor
- A2C59510886
- Fuente de alimentación
- 12 voltios CC
- Serie
- VDO Universal
- Categoría
- Modificadores de valor límite
- Estado del artículo
- Plazo de entrega bajo petición
2910002025200
- VDO warning module
- Between sender and gauge
- For compatibility see specifications
- Retail package 1 Make point switch
