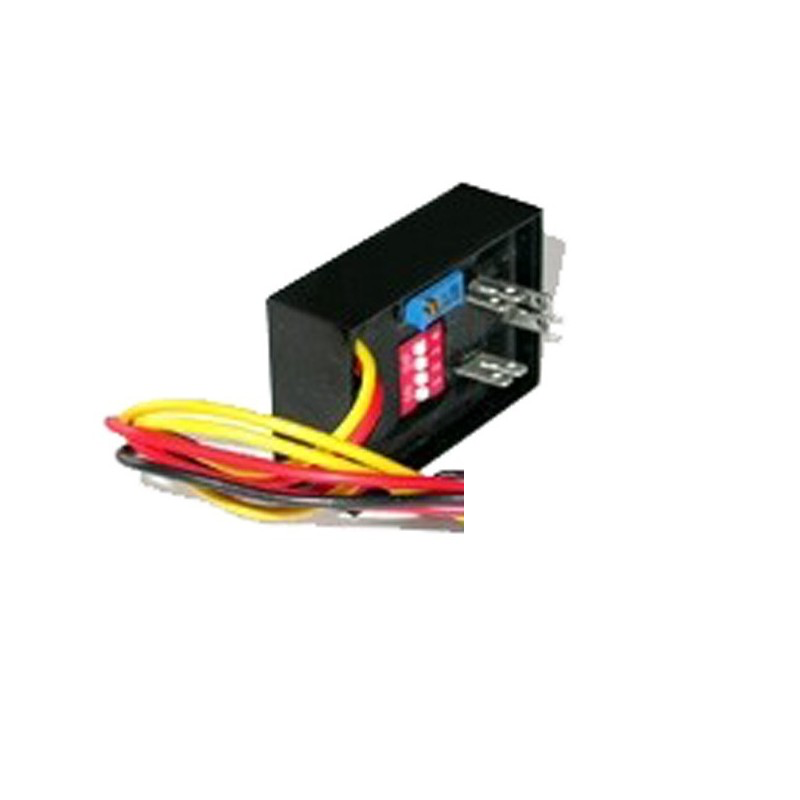

Continental VDO Limit value switch - 12 Volt DC
€89.54
(tax incl.)
€74.00 (VAT Excl.)
Part-number:
2910002025200
- ViewLine limit value module
- Placement between sensor and instrument
- See specifications for compatibility
- Retail Packaging 1 Makepoint Switch
Logistical information:
- HS Code: 85318070
- Weight: 0.26kg
Description VDO ViewLine Makepoint switch:
VDO viewline instruments have a built-in LED warning light. These can warn, for example, of too high a temperature or too low oil pressure. To use this function, the application of a VDO ViewLine Makepoint alarm switch item A2C59510886 necessary. The A2C59510886 is compatible with the ViewLine instruments that have a resistance value as an input signal. Installation is simple. Plug the Makepoint switch into the instrument and connect the sensor to the switch. With the help of the dip switches and the potentiometer, you can effortlessly set the correct limit value. In addition to controlling the red LED, a VDO buzzer or external control light can also be connected.
VDO A2C59510886 Alarm value module specifications:
Front ring features:
| Compatible with VDO ViewLine meters: | Temperature Pressure Fuel Level Trim mode Rudder position |
| Adjustments: | Stepless 0-100% |
| Settings by: | 4 x DIP Switch and Potentiometer |
| Supply voltage: | 12 - 24 V DC |
| Ambient temperature: | -20° C to +70° C |
A2C59510886
Data sheet
- Predecessor
- A2C59510886
- Supply voltage
- 12 Volts DC
- Series
- VDO Universal
- Category
- Limit value switches
- Article status
- Available to order
Specific References
- MPN
- 2910002025200
2910002025200
- ViewLine limit value module
- Placement between sensor and instrument
- See specifications for compatibility
- Retail Packaging 1 Makepoint Switch
