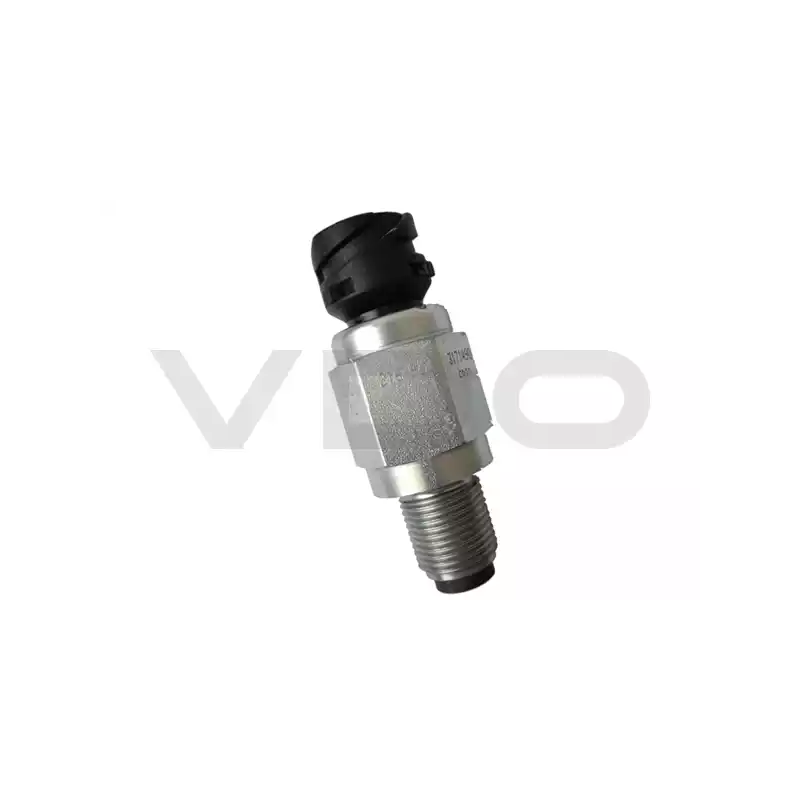

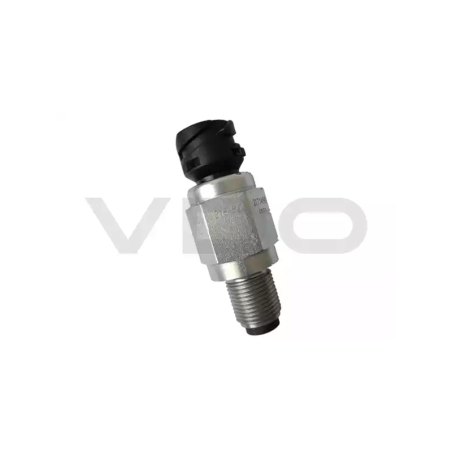

VDO Blocking oscillator tacho - speed sender - M18

VDO Blocking oscillator tacho - speed sender - M18

144,38 € (impuestos inc.)

119,32 € impuestos excl.

Part-number:
VDO 340-216-008-010Z
  • Sender type: Blocking Oscillator - 400Hz
  • Thread: M18 x 1.5 Male
  • Power supply: 6.3 - 8V Stabilized
  • Sensor signal: 2-pole insulated return
  • Connector: 4-pole special OEM
Logistical information:
Puede solicitarse enClick here for detailed information.
  • HS Code: 90308900
  • Ean Code: 4103590933867
  • Weight: 0.09kg
Cantidad

Description Blocking Oscillator speedo and tacho sender:

VDO 340 216 008 010Z Full technical specifications:

Mechanical features:

Thread:M18 x 1.5 Male
Maximum frequency:400 Hz = 24.000 Pulsen per minuut
Operating temperature:-40°C to +130°C
Sender length overall (L2):78.6 mm ± 1 mm
Sender element length including thread (L1):25 mm
Distance sender - pulse generator:0.3 mm to 1.4 mm
Duty cycle: (t on + t off) / t on = 1.43 to 3.33

Electrical features:

Operating voltage:6.3 - 8V DC Stabilized
Signal output:Insulated return
Connector:Connector 4-pole special
Current consumption:12 mA

Datasheets and Tables:

2010 EU VDO Sensors Catalogue DownloadPage 56 - 57
Image:Not specified by VDO

VDO Sender 340-216-008-010Z replaces manufacturer OEM number:

MERCEDES-BENZ Part number:013 542 62 17

Retail package:

  • VDO 340-216-008-010Z Blocking Oscillator tacho - speedo sender
  • VDO Sensors are - unless otherwise noted - delivered without connecting material
VDO Continental I
340-216-008-010Z

Ficha técnica

Rango de medición
0 - 400 Hz
Embalaje
VDO Sensor de embalaje minorista
Aplicación
VDO Control del motor
Tipo de sensor
RPM Onda cuadrada
Señal del sensor
Aislado de la masa
Hélice
M18 x 1.5 Macho
País de origen
República Checa
Funcionalidad
Sensores de onda cuadrada
Tipo de conector
Especial de 4 polos
Categoría
Sensores de onda cuadrada
Estado del artículo
Puede solicitarse en
Formato alternativo
340 216 008 010Z
340/216/8/10Z
