VDO Induktiv Drehzahl - Geschwindigkeit Sensor - M18
176,16 €
(inkl. MwSt.)
145,59 € (Zzgl. MwSt)
Teilenummer:
VDO 340-804-030-005B
- Sender type: Inductive - 250Hz
- Thread: M18 x 1.5
- Resistance: 1.050 ± 100 Ohm
- Sensor signal: 2-pole insulated return
- Connector: AMP 2-pole pin 1.6mm
Logistische Informationen:
- HS Code: 90318080
- Ean Code: 41035906905
- Gewicht: 0.11kg
Description Inductive speedo and tacho sender:
VDO 340 804 030 005B Full technical specifications:
Mechanical features:
| Thread: | M18 x 1.5 Male |
| Frequency: | 250 Hz = 15.000 Pulses per minut |
| Operating temperature: | -25°C to +140°C |

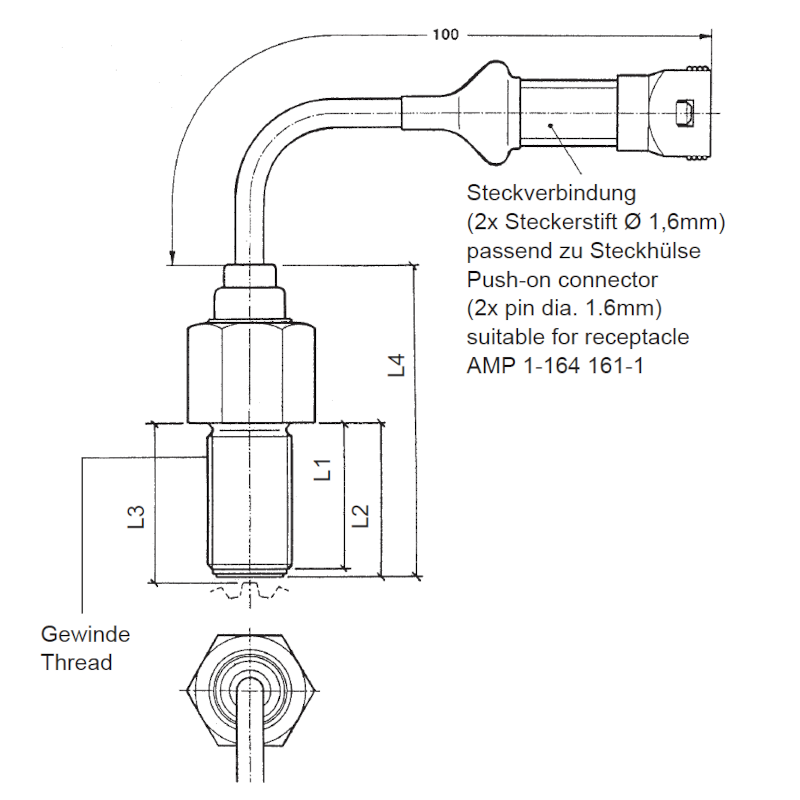

| Sender length overall (L4): | 67 mm |
| Sender length (L1): | 23.3 mm |
| Sender length (L2): | 25 mm |
| Sender length (L3): | 26.1 ± 0.1 mm |
Electrical features:
| Operating voltage: | Independent |
| Signal output: | Insulated return |
| Connector: | Connector 2-pole AMP 1-164 161-1 Pin diameter 1.6 mm |
| Interne resistance: | 1.050 Ohm ± 100 Ohm |
Datasheets and Tables:
| 2014 EU VDO Complete Range Catalogue Download | Page 114 - 115 |
| Image: | D |
Retail package:
- VDO 340-804-030-005B Inductive tacho - speedo sender
- VDO Sensors are - unless otherwise noted - delivered without connecting material
340-804-030-005B
Technische Daten
- Messbereich
- 0 - 250 Hz
- Verpackung
- VDO Sensor Retail Verpackung
- Anwendung
- VDO Motorüberwachung
- Sensor Typ
- RPM Inductiv
- Sensor Signal
- Massefrei
- Gewinde
- M18 x 1.5 Male
- Herkunftsland
- Tsjechië
- Funktionalität
- Induktivsensoren
- Steckersystem Typ
- 2-Polig AMP
- Kategorie
- Induktivsensoren
- Artikel Status
- bestellbar
- Alternative Notation
- 340 804 030 005B
340/804/30/5B
Besondere Bestellnummern
- isbn
- 90318080
- ean13
- 41035906905
- Hersteller-Teilenummer (MPN)
- 340-804-030-005B
VDO 340-804-030-005B
- Sender type: Inductive - 250Hz
- Thread: M18 x 1.5
- Resistance: 1.050 ± 100 Ohm
- Sensor signal: 2-pole insulated return
- Connector: AMP 2-pole pin 1.6mm
