VDO Inductive tacho - speed sender - M18
€176.16
(tax incl.)
€145.59 (VAT Excl.)
Part-number:
VDO 340-804-030-005B
- Sender type: Inductive - 250Hz
- Thread: M18 x 1.5
- Resistance: 1,050 ± 100 Ohm
- Sensor signal: 2-pole insulated return
- Connector: AMP 2-pole pin 1.6mm
Logistical information:
- HS Code: 90318080
- Ean Code: 41035906905
- Weight: 0.11kg
Description Inductive speedo and tacho sender:
VDO 340 804 030 005B Full technical specifications:
Mechanical features:
| Thread: | M18 x 1.5 Male |
| Frequency: | 250 Hz = 15,000 Pulses per minute |
| Operating temperature: | -25°C to +140°C |

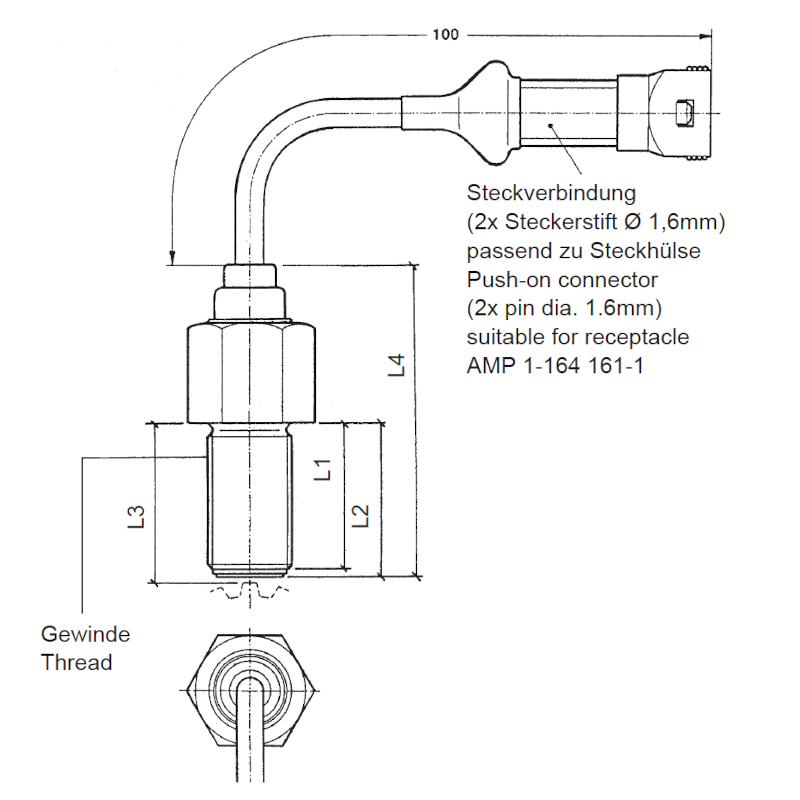

| Sender length overall (L4): | 67 mm |
| Sender length (L1): | 23.3 mm |
| Sender length (L2): | 25 mm |
| Sender length (L3): | 26.1 ± 0.1 mm |
Electrical features:
| Operating voltage: | Independent |
| Signal output: | Insulated return |
| Connector: | Connector 2-pole AMP 1-164 161-1 Pin diameter 1.6 mm |
| Internal resistance: | 1,050 Ohm ± 100 Ohm |
Datasheets and Tables:
| 2014 EU VDO Complete Range Catalogue Download | Page 114 - 115 |
| Image: | D |
Retail package:
- VDO 340-804-030-005B Inductive tacho - speedo sender
- VDO Sensors are - unless otherwise noted - delivered without connecting material
340-804-030-005B
Data sheet
- Measuring range
- 0 - 250 Hz
- Packaging
- VDO Sensor retail packaging
- Application
- VDO Engine control
- Sensor type
- RPM Induction
- Sensor signal
- Isolated from mass
- Thread
- M18 x 1.5 Male
- Country of origin
- Czech Republic
- Functionality
- Induction sensors
- Connector type
- 2-pole AMP
- Category
- Induction sensors
- Article status
- Available to order
- Alternate format
- 340 804 030 005B
340/804/30/5B - L1 Length
- 23.3 mm
- L2 Length
- 25 mm
- L3 Length
- 26.1 ± 0.1 mm
- L4 Length
- 67 mm
Specific References
- EAN13
- 41035906905
- MPN
- 340-804-030-005B
VDO 340-804-030-005B
- Sender type: Inductive - 250Hz
- Thread: M18 x 1.5
- Resistance: 1,050 ± 100 Ohm
- Sensor signal: 2-pole insulated return
- Connector: AMP 2-pole pin 1.6mm
