VDO Druksensor 0-10 Bar - M12
€ 137,61
(incl. btw)
€ 113,73 (Excl. BTW)
Onderdeel nummer:
VDO 360-081-063-001C
- Pressure range: 0 to 10 Bar
- Thread: M12 x 1.5
- Sender resistance range: 10 - 184 Ohm
- Sensor signal: 2-pole insulated return
- Warning contact: 5.20 Bar ± 0.30 Bar
Logistieke informatie:
- HS Code: 90269000
- Ean Code: 4103590691538
- Gewicht: 0.13kg
Description engine oil pressure sender:
VDO 360 081 063 001C Full technical specifications:
Mechanical features:
| Pressure measuring range: | 0 - 10 Bar 0 - 145 PSI 0 - 1000 KPa |
| Maximum pressure: | 30 Bar during 2 seconds |
| Thread: | M12 x 1.5 |

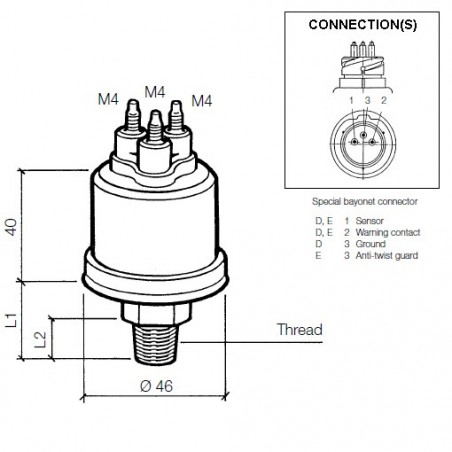

| Length thread + nut (L1): | 20.5 mm |
| Thread length (L2): | 12 mm |
| Torque: | 40 Nm |
| Operating temperature: | -25 °C to +100 °C |
| Pressure medium: | Oil - Fuel - Air |
Electrical features:
| Operating voltage: | 6 - 24 V DC |
| Resistor range: | 10 - 184 Ohm |
| Pressure sensor signal: | Dual-Pole insulated return |
| Warning contact: | 5.20 Bar ± 0.30 Bar |
| Warning contact switching capacity: | Maximum 5 Watt non-inductive |
| Warning contact features: | Closes with falling pressure |
| Pressure sender connector: | Bosch push-on connector 2.8x0.8mm |
| Warning contact connector: | Bosch push-on connector 2.8x0.8mm |
Datasheets and Tables:
| VDO 2014 Vehicle Electronics Catalog: | Page 128 - 129 |
| Type of connection: | D-E |
| VDO En Du Pressure senders Tables: | VDO Datasheet table 4 |
Retail package:
- VDO 360 081 063 001C Pressure sender
- VDO Sensors are - unless otherwise noted - delivered without connecting material
360-081-063-001C
Datasheet
- Druk Meetbereik
- 0 - 10 Bar
- Waarschuwingscontact connector
- Bosch push-on connector 2.8x0.8mm
- Waarschuwings contact
- 5.20 Bar ± 0.30 Bar
- Voedingsspanning
- 6 - 24 Volt DC
- Verpakking
- VDO Sensor retail verpakking
- Uitgangsignaal
- 10 - 184 Ohm
- Toepassing
- VDO Motorcontrole
- Signaal analoog
- 10 - 184 Ohm
- Sensor signaal
- Geïsoleerd van massa
- Sensor connector
- Bosch push-on connector 2.8x0.8mm
- Schroefdraad
- M12 x 1.5 Male
- Land van oorsprong
- Duitsland
- Functionaliteit
- Motoroliedruk
- Connector type
- Bosch push-on connector 2.8x0.8mm
- Communicatie
- Analoog
- Categorie
- Druksensoren
- Artikel status
- Bestelbaar
- Alternatieve notatie
- 360 081 063 001C
360/81/63/1C
Specifieke referenties
- isbn
- 90269000
- ean13
- 4103590691538
- MPN
- 360-081-063-001C
