VDO Olie Temperatuursensor 200°C – 1/8-27 NPTF
€ 75,81
(incl. btw)
€ 62,65 (Excl. BTW)
Onderdeel nummer:
VDO 323-801-018-001D
- Temperature range: +50°C to +200°C
- Thread: 1/8-27 NPTF
- Sender resistance range: 482.5 - 14.3 Ohm
- Sensor signal: 1-pole common ground
- No warning contact
Logistieke informatie:
- HS Code: 90259000
- Ean Code: 4103590949318
- Gewicht: 0.10kg
Description cylinder temperature sender:
VDO 323 801 018 001D Full technical specifications:
Mechanical features:
| Temperature measuring range: | +50°C to +200°C |
| Minimum - Maximum operating temperature: | +170 °C to +250 °C |
| Thread: | 1/8-27 NPTF |

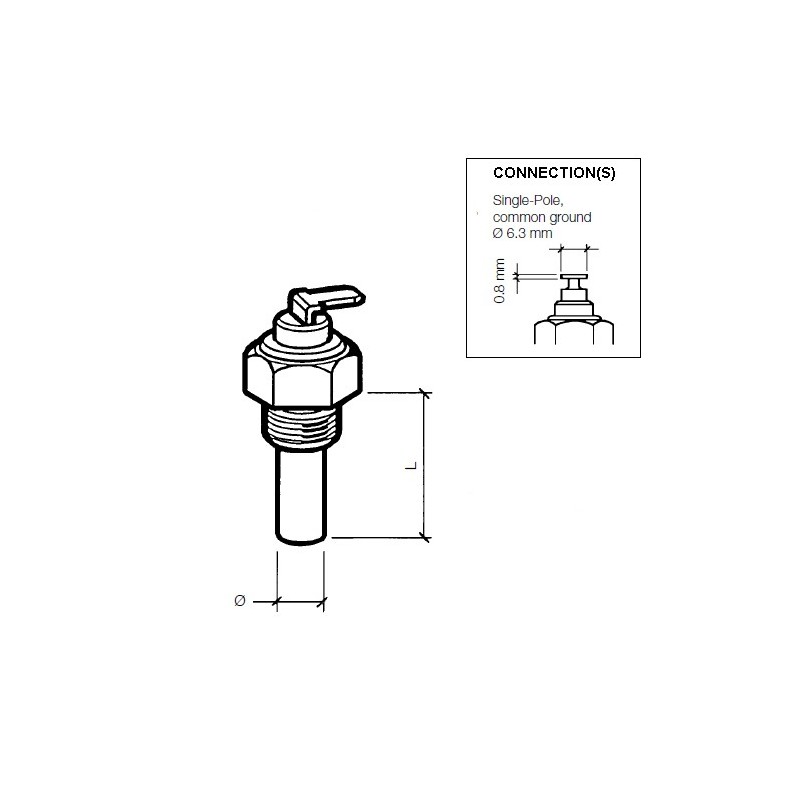

| Sender element length + thread (L): | 10.5 mm |
| Sensor diameter: | 8.4 mm |
| Torque: | 10 Nm |
| Temperature medium: | Coolant - Water - Air - Engine oil - Transmission oil - Fuel |
Electrical features:
| Operating voltage: | 6 - 24 V DC |
| Resistor range: | 482.5 - 14.3 Ohm |
| Temperature sensor signal: | Single-Pole common ground |
| Warning contact: | None |
| Optional warning contact: | VDO A2C59510886 Makepoint Switch |
| Temperature sender connector: | AMP Male T-model 6.3 x 0.8 mm |
Datasheets and Tables:
| VDO 2014 Vehicle Electronics Catalog: | Page 136 - 137 |
| Type of connection: | C |
| VDO En Du Temperature senders Tables: | VDO table: 12 |
| Temperature 100 °C > Resistance: | 100 °C = 148.81 Ohm ± 15.16 Ohm |
Retail package:
- VDO 323 801 018 001D Temperature sender
- VDO Sensors are - unless otherwise noted - delivered without connecting material
323-801-018-001D
Datasheet
- Temperatuur Meetbereik
- +50°C tot +200°C
- Waarschuwings contact
- Geen
- Voedingsspanning
- 6 - 24 Volt DC
- Verpakking
- VDO Sensor retail verpakking
- Uitgangsignaal
- 482.5 - 14.3 Ohm
- Toepassing
- VDO Motorcontrole
- Signaal analoog
- 482.5 - 14.3 Ohm
- Sensor signaal
- Min aan massa
- Sensor connector
- Vlakstekker T-model 6.3 x 0.8 mm
- Schroefdraad
- 1/8" - 27 NPTF Male
- Land van oorsprong
- Tsjechië
- Functionaliteit
- Cilinder temperatuur
- Connector type
- Vlakstekker T-model 6.3 x 0.8 mm
- Communicatie
- Analoog
- Categorie
- Temperatuursensoren
- Artikel status
- Uitloopartikel beperkt leverbaar
- Alternatieve notatie
- 323 801 018 001D
323/801/18/1D
Specifieke referenties
- isbn
- 90259000
- ean13
- 4103590949318
- MPN
- 323-801-018-001D
VDO 323-801-018-001D
- Temperature range: +50°C to +200°C
- Thread: 1/8-27 NPTF
- Sender resistance range: 482.5 - 14.3 Ohm
- Sensor signal: 1-pole common ground
- No warning contact
