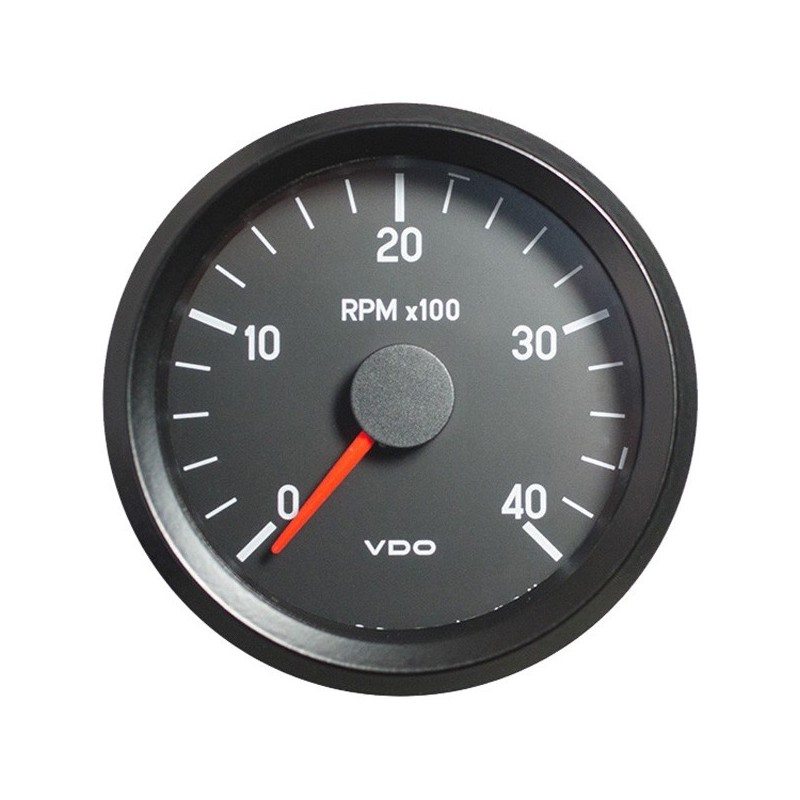

VDO Cockpit International Toerenteller 4.000 RPM 80mm 24V
€ 242,83
(incl. btw)
€ 200,69 (Excl. BTW)
Onderdeel nummer:
VDO 333-045-002G
- Colour: Black
- Panel hole diameter: 80 mm - 3 1/8"
- Range: 0 to 4.000 RPM
- Operating voltage: 24 Volt DC
- Retail package 1 Tachometer
Logistieke informatie:
- HS Code: 90292031
- Ean Code: 4103590659644
- Gewicht: 0.41kg
Description Cockpit International Toerenteler:
VDO Cockpit International 333 045 002G specifications:
Sizes and mounting:
| Installation (Hole) diameter and Outside diameter: | 80 mm - 3 1/8 Inch en 85 mm - 3 1/3 Inch |
| Installation depth: | 91 mm |
| Locking height with Spinlock nut: | Optional 0.5 mm - 23 mm |
| Locking height with bracket: | 0.5 mm - 12 mm |
| Flushmount: | None |
Functionality:
| Analog RPM measurement range: | 0 to 4.000 RPM |
| Sensor signal tachometer: | Alternator terminal: W Ignition terminal: 1 |
| Accuracy: | Not specified by VDO |
| Connection: | 8-Pole AMP Male blade connector 6,3 x 0,8mm |
| Illumination connection: | AMP Male blade connector 6,3 x 0,8mm (4x) |
Power supply:
| Operating voltage: | 21.5 - 30 Volt DC |
| Current consumption without illumination: | < 100 mA |
| Reverse polarity protection: | Yes |
| Short circuit protection: | Not specified by VDO |
Dial & Pointer:
| Deflection angle: | 320° |
| Dial colour: | Black |
| Dial Illumination: | Floodlight Double - 12V - 3.4 Watt White - Green - Red and 24V - 3 Watt - Optional |
| Pointer: | Red backlight |
| Warning indication: | None |
| Programming: | Yes |
Design:
| Model: | Cockpit International |
| Lens: | Single - Anti-glare |
| Standard bezel: | Triangular black (Threaded ring) |
Protection and standards:
| Front protection class: | IP64 (DIN 40050) - Ozon proof - UV proof |
| Rear protection class: | IP42 (DIN 40050) |
| Relative humidity: | Not specified by VDO |
| Operating temperature: | -20°C to +70°C |
| CE standard: | Yes |
| DNV GL Certification: | Not specified by VDO |
| Mechanical shock 8 hours: | Max: 1G - 25Hz - 2000Hz |
| EMC test: | According to EN 13309 and ISO 13766 |
| Nominal position: | NL 0 to NL 90 - DIN 16257 |
| Housing: | Plastic flame retardant |
Retail package:
- VDO Cockpit International 333 045 002G Tachometer
- 2 x Steel bracket zinc-plated and chromatized
- Connecting material order separately
333-045-002G
Datasheet
- Toerental Meetbereik
- 0 - 4.000 RPM
- Waarschuwings indicatie
- Geen
- Voedingsspanning
- 21.5 - 30 Volt DC
- Verpakking
- VDO Instrument retail
- Toepassing
- VDO Motorcontrole
- Signaal analoog
- Tacho impuls signaal
- Serie
- VDO Cockpit International
- Lens
- Kunststof enkel ontspiegeld
- Land van oorsprong
- Zwitserland
- Kleur
- Zwart
- IP Klasse front
- IP64 (DIN 40050)
- Inbouwmaat
- 80 mm - 3 1/8 Inch
- Functionaliteit
- Toerental - RPM
- Frontring verwisselbaar
- Ja - Speciaal gereedschap vereist
- Frontring model
- Zwart driehoek
- Communicatie
- Analoog
- Categorie
- Toerentellers
- Artikel status
- Bestelbaar
- Opvolger
- A2C3832990001
Specifieke referenties
- isbn
- 90292031
- ean13
- 4103590659644
- MPN
- 333-045-002G
