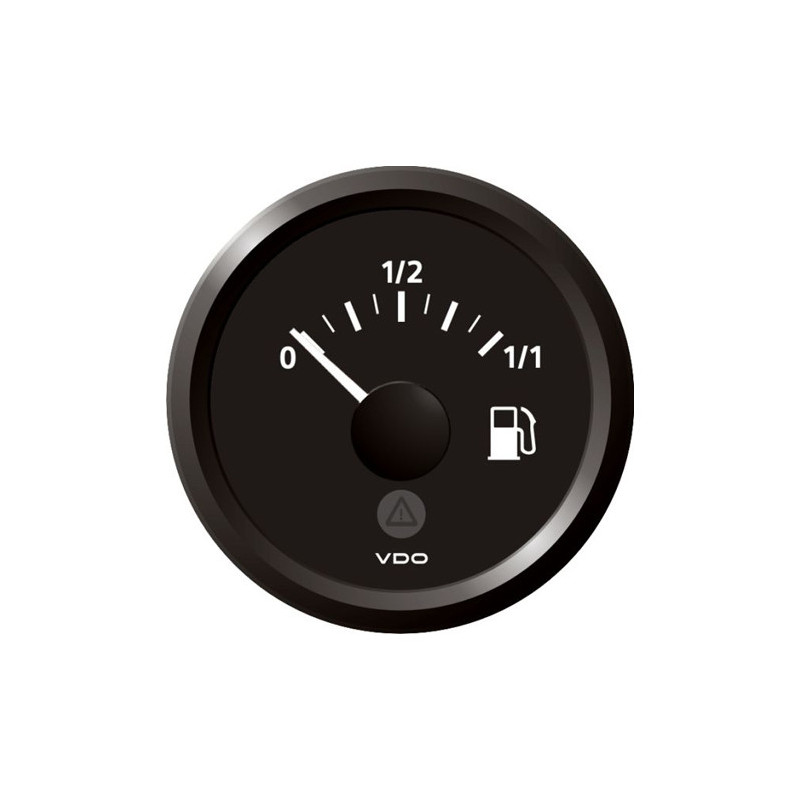

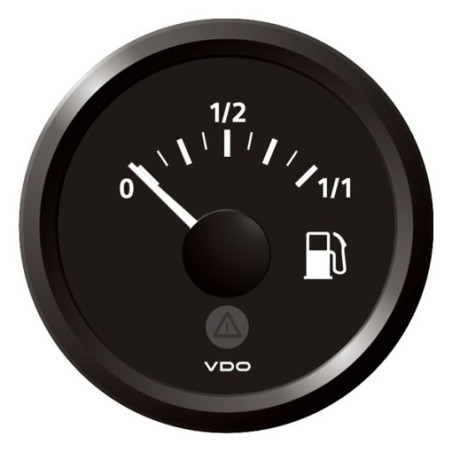

Veratron ViewLine Brandstofniveau 90-0.5 Ohm* Zwart 52mm
Functionele beschrijving ViewLine Brandstofniveaumeter:
Veratron ViewLine A2C59514081 Specificaties:
Maten en montage:
Inbouw (Gat) diameter en Buiten diameter: |
52 mm - 2 1/16 Inch en 59.25 mm - 2 1/3 Inch |
Installatie diepte: |
50 mm |
Paneeldikte met spinlock moer: |
0.5mm - 20mm |
Paneeldikte met bracket montage: |
2mm - 15mm (Optioneel) |
Flushmount montage: |
Optionele kit A2C59510864 |
Functioneel:
Meetbereik brandstofniveau: |
0 - 1/2 - 1/1 |
Weerstand leeg: |
90 Ohm |
Weerstand vol: |
0 Ohm |
Ingangsignaal brandstofniveau: |
Veratron Buisvlotter 90 - 0.5 Ohm EU Instelbaar |
Meetnauwkeurigheid: |
< 3.6° van de volle schaal |
Aansluiting |
Hirschmann 8 pins MQS connector |
Voeding:
Voedingspanning: |
8 - 32 V DC |
Stroomverbruik: |
< 140 mA inclusief waarschuwings LED |
Ompoolbeveiliging: |
Ja - 5 Minuten |
Kortsluitbestendigheid: |
Ja - 1 Minuut |
Schaal & wijzer:
Schaalverdeling: |
90° |
Schaal kleur: |
Zwart |
Schaalverlichting: |
Amber LED backlight 605nm |
Wijzer: |
Wit met LED verlichting |
Alarm LED: |
Rood (632nm) |
Programmering: |
Veratron USB software kit |
Uitvoering:
Model: |
Veratron ViewLine Marine |
Front glas type: |
Dubbel - Anticondens - Ontspiegeld |
Standaard frontring: |
Driehoek zwart (Verwisselbaar) |
Beschermklasse en certificering:
Front beschermingsklasse: |
IP67 (IEC 60529) |
Achterkant beschermingsklasse |
IP52 |
Relatieve vochtigheid: |
Maximaal 95% |
Bedrijfstemperatuur: |
-30°C tot +80°C (Kunststof frontring) |
CE Certificering: |
Ja |
DNV GL Certificering: |
Ja |
Vibratie test: |
25G - 6ms - 1Hz |
Schoktest: |
100G - 11ms |
Valtest: |
1 Meter - 3x |
Brandveiligheid: |
UL94-VD |
Retail verpakking:
- Veratron ViewLine Zwart A2C53412986 Brandstofniveaumeter
- Kabel met Hirschmann connector 8-pins
- Frontring Zwart driehoek
- Spinlock moer
- Rubber pakking
- QR code
- Veiligheids- en installatie instructies
- Levering exclusief Veratron brandstofsensor
A2C59514081
Datasheet
- Niveau Meetbereik
- 0 - 1/2 - 1/1
- Waarschuwings indicatie
- Rode LED Via plus en min
- Voedingsspanning
- 8 - 32 Volt DC
- Verpakking
- VDO Instrument retail
- Toepassing
- VDO Niveaumeting
- Signaal analoog
- Leeg - Vol : 60-90 - 0.5 Ohm
- Serie
- Veratron ViewLine Retail
- Lens
- Kunststof dubbel anticondens
- Kleur
- Zwart
- IP Klasse front
- IP67 (IEC 60529)
- Input
- Analoog
- Inbouwmaat
- 52 mm - 2 1/16 Inch
- Functionaliteit
- EU Buisvlotters 90-0 Ohm
- Frontring verwisselbaar
- Ja - Clip-on
- Frontring model
- Zwart driehoek
- Communicatie
- Analoog
- Categorie
- Brandstofniveau meters
- Artikel status
- Vervallen product
