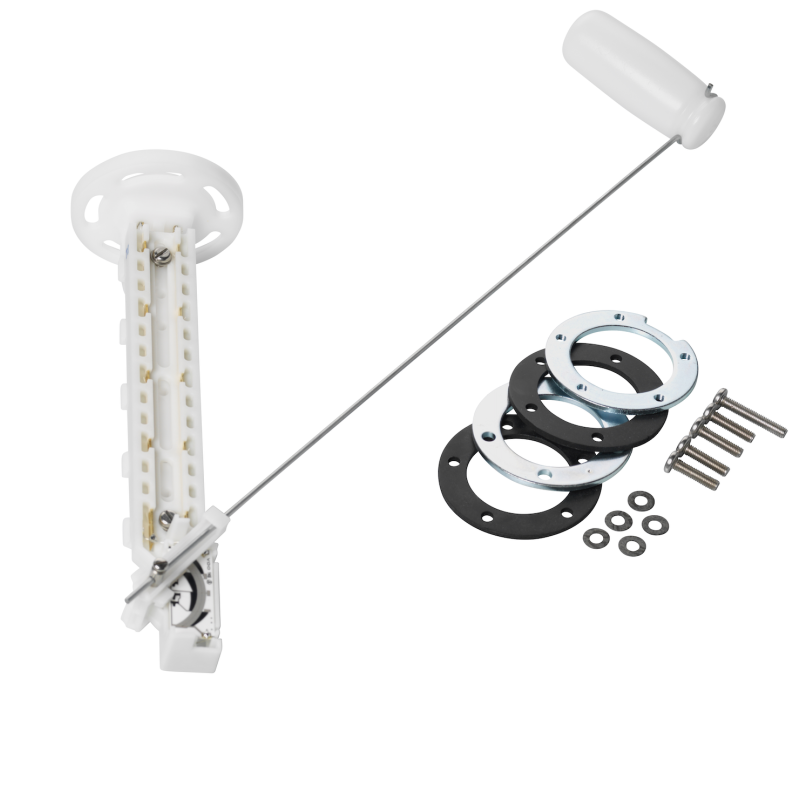

VDO Fuel lever arm sender 145 adjustable 3-180 Ohm
€126.02
(tax incl.)
€104.15 tax excl.
Part-number:
VDO 226-801-015-001G
- Voor 1 Fuel gauge
- Tank depth: 150 - 600 mm (Adjustable)
- 5-Hole SAE Flange 54 mm
- Resistance empty-full: 3.0 - 180.0 Ohm
- N02-240-110
- Retail package 1 Plastic lever arm sender
Logistical information:
- HS Code: 90269000
- Ean Code: 410359068888
- Weight: 0.50kg
Description Fuel lever-arm sender:
VDO 226 801 015 001G Full technical specifications:
Mechanical features:
| Tank depth: | 150 mm - 600 mm |
| Mounting flange: | 5-Hole SAE 54 mm |
| Operating temperature: | -25 °C to +65 °C |
| Fuel: | Oil - petroleum - diesel - gasoline |
Electrical features:
| Operating voltage: | 6 - 24 V DC |
| Resistance empty: | 3 Ohm ± 1.5 Ohm |
| Resistance full: | 180 Ohm |
| Warning contact: | None |
| Optional warning contact: | VDO A2C59510886 Makepoint Switch |
Datasheets and Tables:
| VDO 2012 EN-DE Lever arm sender: | Page 4 |
Retail package:
- VDO 226 801 015 001G Lever arm fuel level sender
- VDO Sensors are - unless otherwise noted - delivered without connecting material
226-801-015-001G
Data sheet
- Measurement range
- 3 - 180 Ohm
- Warning contact
- None
- Operating voltage
- 6 - 24 Volt DC
- Adjustable sensor
- Ja
- Packaging
- VDO Sensor retail package
- Application
- VDO Level measurement
- Tank depth range
- Adjustable: 150mm - 600mm
- Signal analogue
- Empty - Full : 3 - 180 Ohm
- Sensor type
- Fuel lever arm senders standard
- Sensor signal
- Insulated return
- Country of origin
- Zwitserland
- Installation dimension
- 54 mm SAE 5-Hole flange
- Functionality
- Brandstofniveau
- Connector type
- AMP Blade 6.3 x 0.8 mm
- Communication
- Analog
- Category
- Fuel level sensors
- Article status
- Orderable
VDO 226-801-015-001G
- Voor 1 Fuel gauge
- Tank depth: 150 - 600 mm (Adjustable)
- 5-Hole SAE Flange 54 mm
- Resistance empty-full: 3.0 - 180.0 Ohm
- N02-240-110
- Retail package 1 Plastic lever arm sender
