VDO Ø54mm Fuel Tube Float 634.5mm

Part-number:
VDO 224-011-110-634G
  • Fuel tube float sensor metal
  • Tube Length: 634.5 mm + Auxiliary Spring 21 mm
  • 5-Hole SAE Flange 54 mm
  • Resistance empty-full: 79.0 - 1.0 Ohm
  • Retail packaging 1 Pipe float L = 634.5mm
Logistical information:
Limited availability of run-out itemClick here for detailed information.
  • HS Code: 90269000
  • Ean Code: 4103590688781
  • Weight: 0.64kg
Discontinued article
Replacement article on request

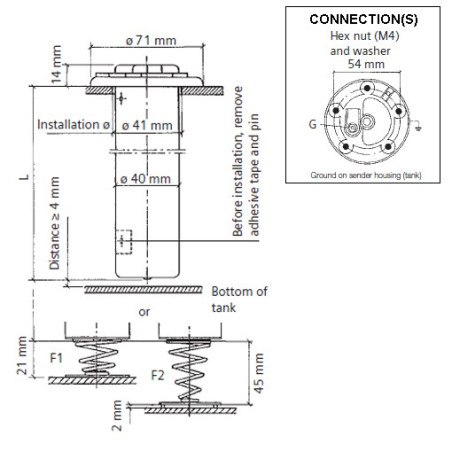

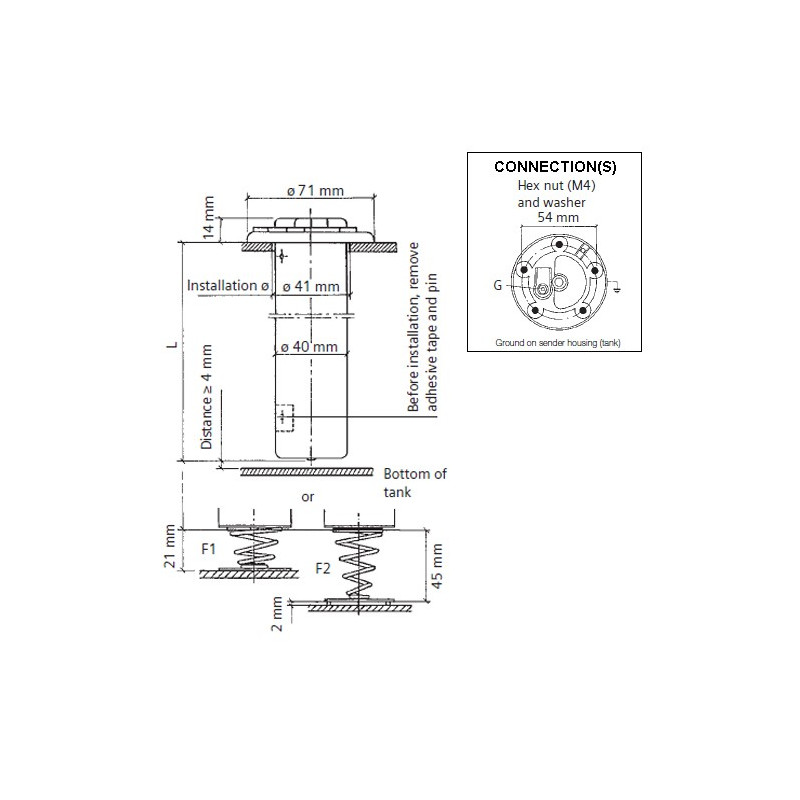

Technical description Ø54mm Fuel Tube Float Sensor:

VDO 224 011 110 634G Specifications:

Mechanical properties:

Tube length:634.5 mm ± 2.0 mm
Minimum tank depth:634.5 mm ± 2.0 mm + 4.0 mm
Auxiliary spring:Yes - 21 mm
Mounting flange:5-Hole SAE 54 mm
Operating Temperature:-25 °C to +65 °C
Fuel:Oil - petroleum - diesel - petrol

Electrical properties:

Supply voltage:6 - 24 V DC
Resistance value empty:79.0 Ohm ± 2.3 Ohm
Resistance value full:1.0 Ohms ± 1.0 Ohms
Warning contact:None
Warning function:Optional VDO A2C59510886 Makepoint Switch
Fuel tube sensor output signal:1-pole min to ground

Datasheets and tables:

VDO 2010 EN Tubular Standard 54mm:Page 1 - 5

Retail packaging:

  • VDO 224 011 110 634G Standard 54mm Metal Fuel Tube Float Level Sensor
  • VDO Sensors are - unless otherwise stated - supplied without connection material
VDO Continental I
224-011-110-634G

Data sheet

Warning contact
None
Predecessor
224-082-005-121R
Supply voltage
6 - 24 Volt DC
Adjustable sensor
No
Packaging
VDO Sensor retail packaging
Application
VDO Level measurement
Tank depth range
600 mm to 650 mm
Signal analog
Empty - Full : 60-90 - 0.5 Ohm
Sensor type
Tube Sensors 54mm Aluminum
Sensor signal
Minus in mass
Country of origin
Brazil
Installation size
54mm SAE 5-Hole Flange
Connector type
M4 Hex Nut
Communication
Analogue
Category
Fuel level sensors
Article status
Limited availability of run-out item

Specific References

EAN13
4103590688781
MPN
224-011-110-634G
