VDO Ø54mm Fuel Tube Float 596.5mm

Part-number:

VDO 224-011-120-596G

  • Fuel tube float sensor metal
  • Tube length: 596.5 mm + Auxiliary spring 21 mm
  • 5-Hole SAE Flange 54 mm
  • Resistance empty-full: 74.1 - 1.0 Ohm
  • Retail packaging 1 Pipe float L = 596.5mm
Logistical information:
Expired productClick here for detailed information.
  • HS Code: 90269000
  • Ean Code: 4103590688859
  • Weight: 0.70kg
Discontinued article
Replacement article on request

Technical description Ø54mm Fuel Tube Float Sensor:

VDO 224 011 120 596G Specifications:

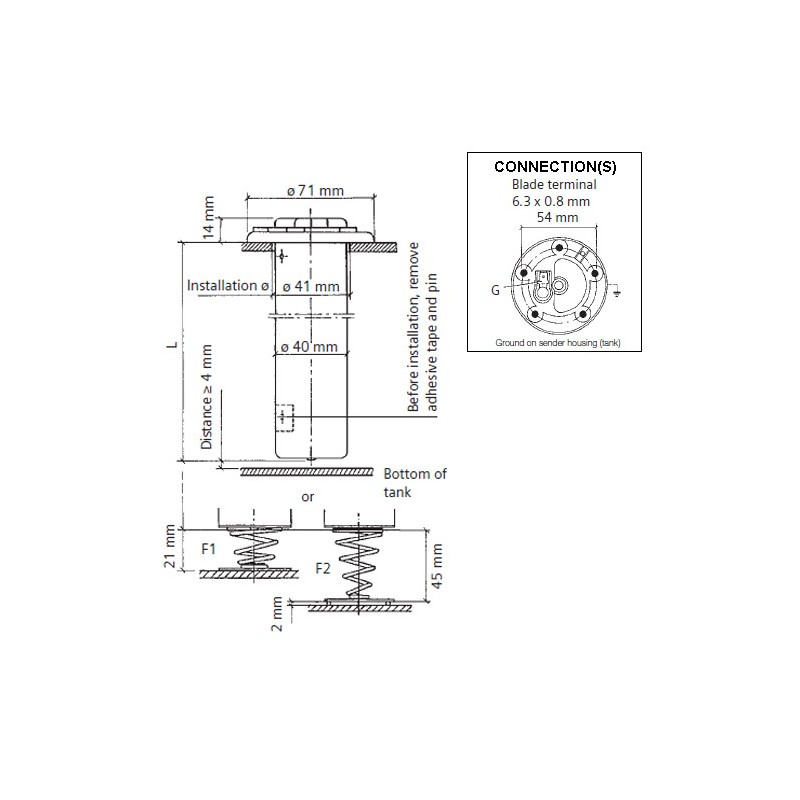

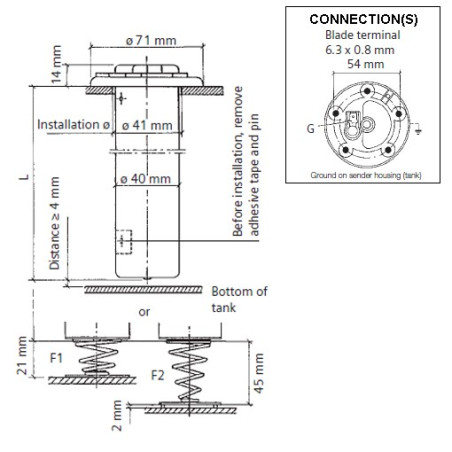

Mechanical properties:

Tube length: 596.5 mm ± 2.0 mm
Minimum tank depth: 596.5 mm ± 2.0 mm + 4.0 mm
Auxiliary spring: Yes - 21 mm
Mounting flange: 5-Hole SAE 54 mm
Operating Temperature: -25 °C to +65 °C
Fuel: Oil - petroleum - diesel - petrol

Electrical properties:

Supply voltage: 6 - 24 V DC
Resistance value empty: 74.1 Ohms ± 2.3 Ohms
Resistance value full: 1.0 Ohms ± 1.0 Ohms
Warning contact: None
Warning function: Optional VDO A2C59510886 Makepoint Switch
Fuel tube sensor output signal: 1-pole min to ground

Datasheets and tables:

VDO 2010 EN Tubular Standard 54mm: Page 1 - 5

Retail packaging:

  • VDO 224 011 120 596G Standard 54mm Metal Fuel Tube Float Level Sensor
  • VDO Sensors are - unless otherwise stated - supplied without connection material
VDO Continental I
224-011-120-596G

Data sheet

Warning contact
None
Supply voltage
6 - 24 Volt DC
Adjustable sensor
No
Packaging
VDO Sensor retail packaging
Application
VDO Level measurement
Tank depth range
550 mm to 600 mm
Signal analog
Empty - Full : 60-90 - 0.5 Ohm
Sensor type
Tube Sensors 54mm Aluminum
Sensor signal
Minus in mass
Country of origin
Brazil
Installation size
54mm SAE 5-Hole Flange
Connector type
M4 Hex Nut
Communication
Analogue
Category
Fuel level sensors
Article status
Expired product

Specific References

EAN13
4103590688859
MPN
224-011-120-596G
