VDO Ø54mm Fuel Tube Float 392.5mm
Part-number:
VDO 224-082-007-023R
- Fuel tube float sensor metal
- Tube Length: 392.5 mm
- 5-Hole SAE Flange 54 mm
- Resistance empty-full: 71.1 - 1.5 Ohm
- Retail packaging 1 Pipe float L = 392.5mm
Logistical information:
- HS Code: 90269000
- Weight: 0.50kg
Technical description Ø54mm Fuel Tube Float Sensor:
VDO 224 082 007 023R specifications:
Mechanical properties:

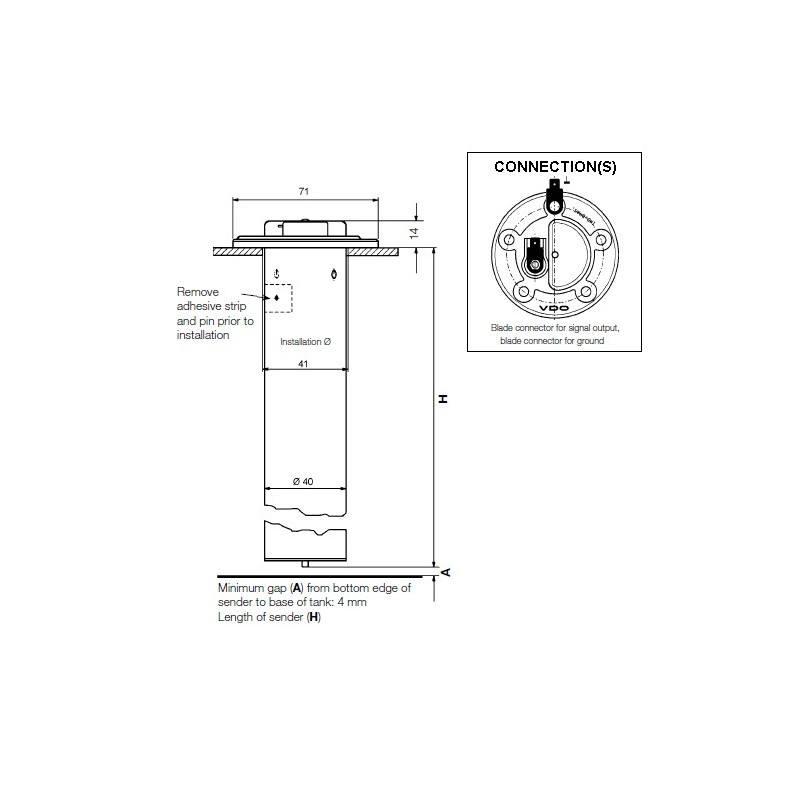

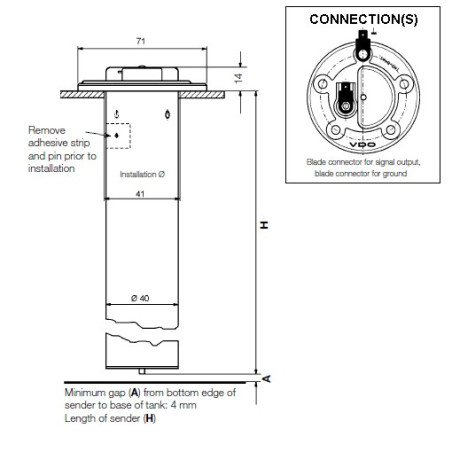

| Tube length: | 392.5 mm ± 2.0 mm |
| Minimum tank depth: | 392.5 mm ± 2.0 mm + 4.0 mm |
| Auxiliary spring: | No |
| Mounting flange: | 5-Hole SAE 54 mm |
| Operating Temperature: | -25 °C to +65 °C |
| Fuel: | Oil - petroleum - diesel - petrol |
Electrical properties:
| Supply voltage: | 6 - 24 V DC |
| Resistance value empty: | 71.1 Ohms ± 1.6 Ohms |
| Resistance value full: | 1.5 Ohms ± 0.4 Ohms |
| Warning contact: | None |
| Warning function: | Optional VDO A2C59510886 Makepoint Switch |
| Fuel tube sensor output signal: | 1-pole min to ground |
Datasheets and tables:
| VDO 2010 EN Tubular Standard 54mm: | Page 1 - 5 |
Retail packaging:
- VDO 224 082 007 023R Standard 54mm Metal Fuel Tube Float Level Sensor
- VDO Sensors are - unless otherwise stated - supplied without connection material
224-082-007-023R
Data sheet
- Warning contact
- None
- Supply voltage
- 6 - 24 Volt DC
- Adjustable sensor
- No
- Packaging
- VDO Sensor retail packaging
- Application
- VDO Level measurement
- Tank depth range
- 350 mm to 400 mm
- Signal analog
- Empty - Full : 60-90 - 0.5 Ohm
- Sensor type
- Tube Sensors 54mm Aluminum
- Sensor signal
- Minus in mass
- Installation size
- 54mm SAE 5-Hole Flange
- Connector type
- M4 Hex Nut
- Communication
- Analogue
- Category
- Fuel level sensors
- Article status
- Expired product
Specific References
- MPN
- 224-082-007-023R
VDO 224-082-007-023R
- Fuel tube float sensor metal
- Tube Length: 392.5 mm
- 5-Hole SAE Flange 54 mm
- Resistance empty-full: 71.1 - 1.5 Ohm
- Retail packaging 1 Pipe float L = 392.5mm
