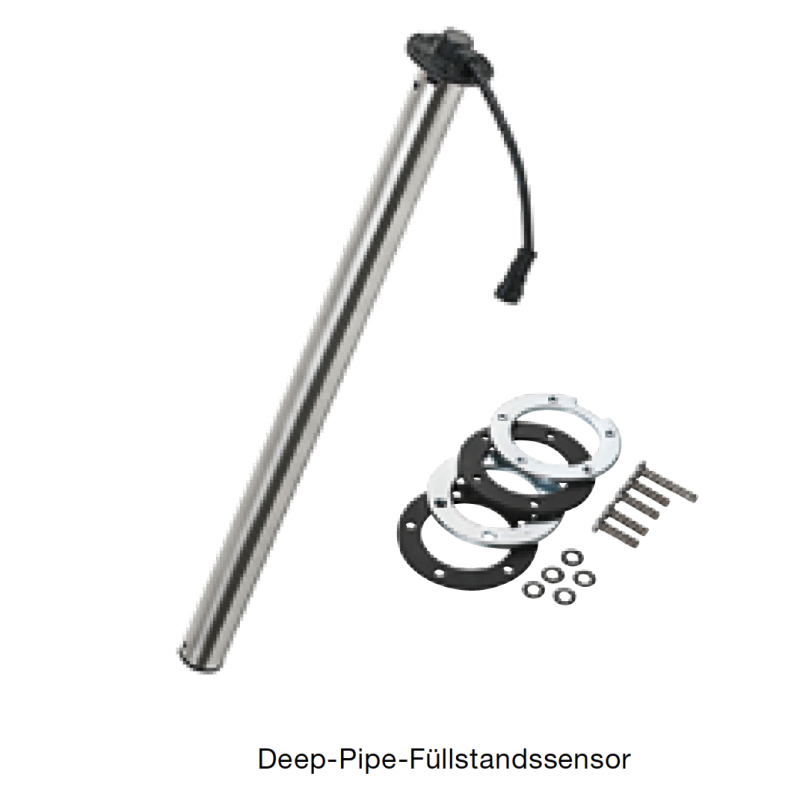

A2C1750750001 Veratron Ø54mm Stainless Steel 316 Pipe Float Contactless 850 mm - Empty-Full 90-4 Ohm
search
  • A2C1750750001 Veratron Ø54mm Stainless Steel 316 Pipe Float Contactless 850 mm - Empty-Full 90-4 Ohm
  • A2C1750750001 Veratron Ø54mm Stainless Steel 316 Pipe Float Contactless 850 mm - Empty-Full 90-4 Ohm
  • A2C1750750001 Veratron Ø54mm Stainless Steel 316 Pipe Float Contactless 850 mm - Empty-Full 90-4 Ohm
  • A2C1750750001 Veratron Ø54mm Stainless Steel 316 Pipe Float Contactless 850 mm - Empty-Full 90-4 Ohm

Veratron Ø54mm Stainless Steel 316 Pipe Float Contactless 850 mm - Empty-Full 90-4 Ohm

€145.20 (tax incl.)

€120.00 (VAT Excl.)

Part-number:

Veratron A2C1750750001

  • Pipe float sensor stainless steel
  • Tube length: 850mm - Ø38mm
  • 5-Hole SAE Flange 54 mm PA66 GF30
  • Resistance empty-full: 90-4 Ohm
  • Suitable for water and fuel
  • Packaging 1 Pipe float L = 850mm
Logistical information:
Available to orderClick here for detailed information.
  • HS Code: 90261000
  • Ean Code: 7640178726703
  • Weight: 1.63kg
Quantity

Technical description Ø54mm Fuel Tube Float Sensor:

Veratron A2C1750750001 specifications:

Mechanical properties:

Tube length: 850 mm ± 2.0 mm
Minimum tank depth: 850mm ± 2.0mm + 4.0mm
Auxiliary spring: No
Mounting flange: 5-Hole SAE 54 mm
Operating Temperature: -25 °C to +65 °C
Fuel: Oil - petroleum - diesel - petrol

Electrical properties:

Supply voltage: 6 - 24 V DC
Resistance value empty: 81.6 Ohms ± 2.5 Ohms
Resistance value full: 2.0 Ohms ± 1.5 Ohms
Warning contact: None
Warning function: Optional Veratron A2C59510886 Makepoint Switch
Fuel tube sensor output signal: 1-pole min to ground

Retail packaging:

  • Veratron A2C1750750001 Standard 54mm Metal Fuel Tube Float Level Sensor
  • Veratron Sensors are supplied - unless otherwise stated - without connection material
Veratron VDO
A2C1750750001

Data sheet

Warning contact
None
Supply voltage
6 - 24 Volt DC
Adjustable sensor
No
Packaging
VDO Sensor retail packaging
Application
VDO Level measurement
Tank depth range
800 mm to 900 mm
Signal analog
Empty - Full : 90 - 4 Ohm
Sensor type
Tube sensors 54mm stainless steel
Sensor signal
Isolated from mass
Installation size
54mm SAE 5-Hole Flange
Connector type
TE Superseal 2-pole IP67
Communication
Analogue
Category
Fuel level sensors
Article status
Available to order

Specific References

EAN13
7640178726703
MPN
A2C1750750001
