A2C1745910001 Veratron 54mm Stainless Steel Pipe Float 950mm - L-V is 0-180 Ω - Contactless 43 Resistors
search

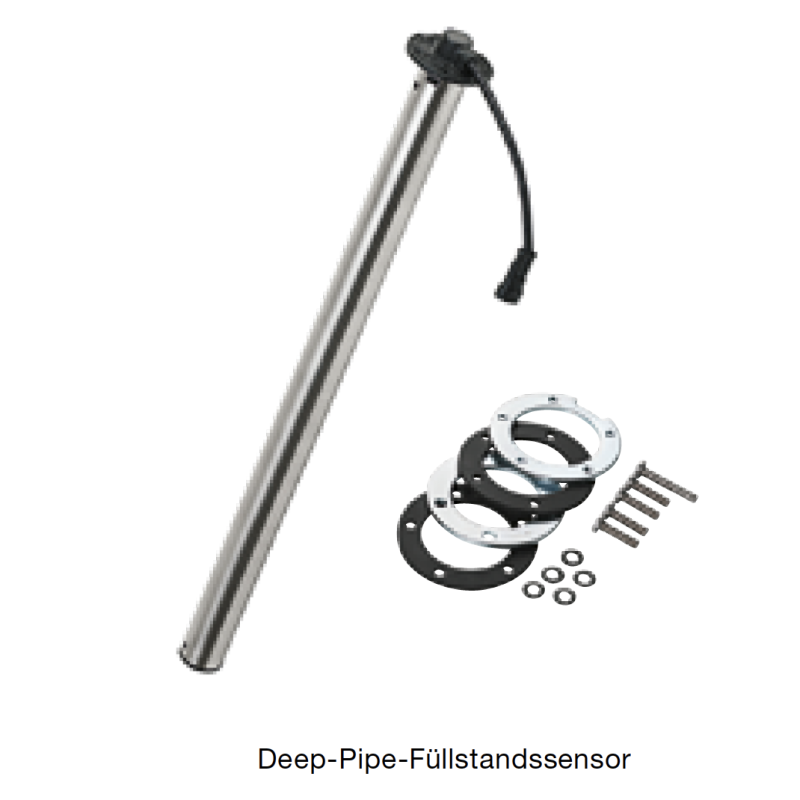

  • A2C1745910001 Veratron 54mm Stainless Steel Pipe Float 950mm - L-V is 0-180 Ω - Contactless 43 Resistors

Veratron 54mm Stainless Steel Pipe Float 950mm - L-V is 0-180 Ω - Contactless 43 Resistances

€135.94 (tax incl.)

€112.35 (VAT Excl.)

Part-number:

Veratron A2C1745910001

  • Pipe float sensor stainless steel
  • Tube length: 950mm - Ø38mm
  • 5-Hole SAE Flange 54 mm PA66 GF30
  • Resistance empty-full: 0-180 Ohm
  • Suitable for water and fuel
  • Packaging 1 Pipe float L = 950mm
Logistical information:
Available to orderClick here for detailed information.
  • HS Code: 90261000
  • Ean Code: 7640178725720
  • Weight: 1.63kg
Quantity

Technical description Ø54mm Fuel Tube Float Sensor:

VDO A2C1745910001 specifications:

Mechanical properties:

Tube length: 950 mm ± 2.0 mm
Minimum tank depth: 950 mm ± 2.0 mm + 4.0 mm
Auxiliary spring: No
Mounting flange: 5-Hole SAE 54 mm
Operating Temperature: -25 °C to +65 °C
Fuel: Oil - petroleum - diesel - petrol

Electrical properties:

Supply voltage: 6 - 24 V DC
Resistance value empty: 81.6 Ohms ± 2.5 Ohms
Resistance value full: 2.0 Ohms ± 1.5 Ohms
Warning contact: None
Warning function: Optional VDO A2C59510886 Makepoint Switch
Fuel tube sensor output signal: 1-pole min to ground

Retail packaging:

  • VDO A2C1745910001 Standard 54mm Metal Fuel Tube Float Level Sensor
  • VDO Sensors are supplied - unless otherwise stated - without connection material
Veratron VDO
A2C1745910001

Data sheet

Warning contact
None
Supply voltage
6 - 24 Volt DC
Adjustable sensor
No
Packaging
VDO Sensor retail packaging
Application
VDO Level measurement
Tank depth range
900 mm to 1,500 mm
Signal analog
Empty - Full : 0 - 180 Ohm
Sensor type
Tube sensors 54mm stainless steel
Sensor signal
Isolated from mass
Installation size
54mm SAE 5-Hole Flange
Connector type
TE Superseal 2-pole IP67
Communication
Analogue
Category
Fuel level sensors
Article status
Available to order

Specific References

EAN13
7640178725720
MPN
A2C1745910001
