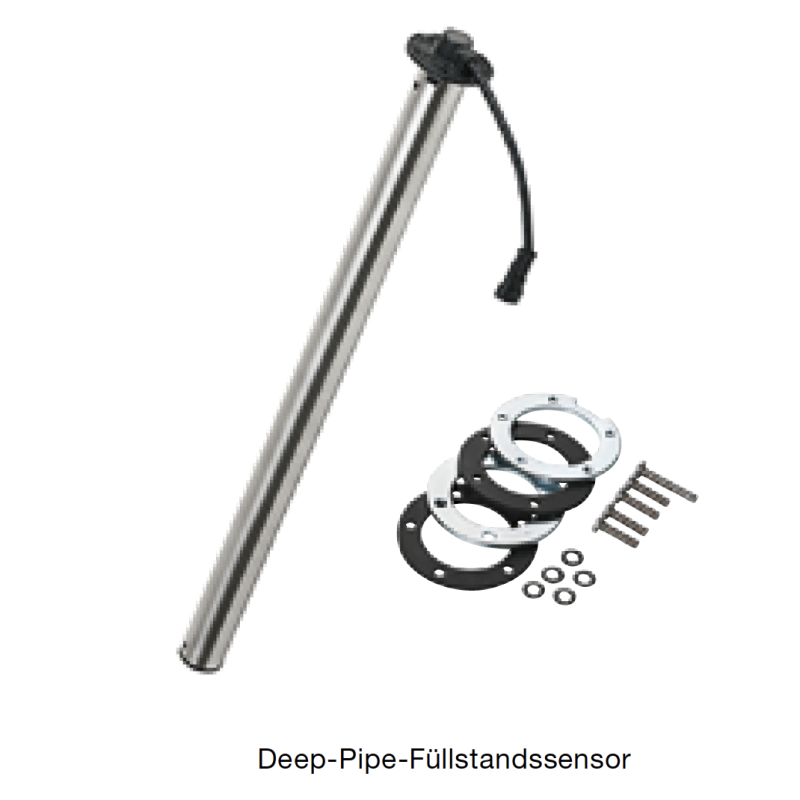

Veratron Ø54mm SS 316 tubular sensor non-contact 260 mm - empty-full 90-4 ohm
€67.93
(tax incl.)
€56.14 (VAT Excl.)
Part-number:
Veratron A2C1750200001
- Tubular sensor stainless steel
- Tube length: 260mm - Ø38mm
- 5-hole SAE Flange 54 mm PA66 GF30
- Resistance empty-full: 90-4 Ohm
- Suitable for water and fuel
- Package 1 Tubular sensor L = 260mm
Logistical information:
- HS Code: 90261021
- Ean Code: 7640178726390
- Weight: 1.15kg
Description Ø54mm Tubular fuel sensor:
Veratron A2C1750200001 Full technical specifications:
Mechanical features:
| Tube length: | 260 mm ± 2.0 mm |
| Minimum tank depth: | 260mm ± 2.0mm + 4.0mm |
| Support spring: | None |
| Mounting flange: | 5-Hole SAE 54 mm |
| Operating temperature: | -25 °C to +65 °C |
| Fuel: | Oil - petroleum - diesel - gasoline |
Electrical features:
| Operating voltage: | 6 - 24 V DC |
| Resistance empty: | 90 Ohm ± 2.5 Ohm |
| Resistance full: | 4.0 Ohms ± 1.5 Ohms |
| Warning contact: | None |
| Optional warning contact: | Veratron A2C59510886 Makepoint Switch |
Retail package:
- Veratron A2C1750200001 Standard 54 mm metal tubular fuel level sender
- Veratron Sensors are - unless otherwise noted - delivered without connecting material
A2C1750200001
Data sheet
- Warning contact
- None
- Supply voltage
- 6 - 24 Volt DC
- Adjustable sensor
- No
- Packaging
- VDO Sensor retail packaging
- Application
- VDO Level measurement
- Tank depth range
- 250 mm to 300 mm
- Signal analog
- Empty - Full : 90 - 4 Ohm
- Sensor type
- Tube sensors 54mm stainless steel
- Sensor signal
- Isolated from mass
- Installation size
- 54mm SAE 5-Hole Flange
- Connector type
- TE Superseal 2-pole IP67
- Communication
- Analogue
- Category
- Fuel level sensors
- Article status
- Available to order
Specific References
- EAN13
- 7640178726390
- MPN
- A2C1750200001
Veratron A2C1750200001
- Tubular sensor stainless steel
- Tube length: 260mm - Ø38mm
- 5-hole SAE Flange 54 mm PA66 GF30
- Resistance empty-full: 90-4 Ohm
- Suitable for water and fuel
- Package 1 Tubular sensor L = 260mm
