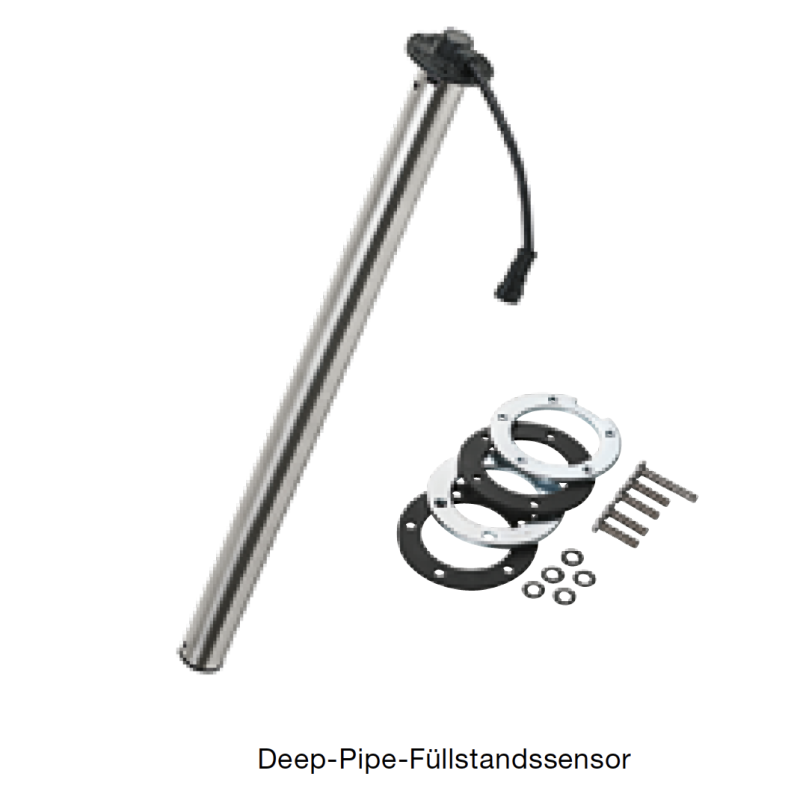

Veratron 54mm Stainless Steel Pipe Float 1100mm - L-V is 0-180 Ω - Contactless 50 Resistors
€155.62
(tax incl.)
€128.61 (VAT Excl.)
Part-number:
A2C1745940001
- Stainless Steel Pipe Float Sensor
- Tube length: 1.100mm - Tube Ø 38mm
- Application: Water-Fuel-Alcohol
- 5-Hole SAE Flange 54mm PA66 GF30
- Signal Empty-Full: 0-180 Ohm
- Connector 2-pole IP67 - Ground-free
Logistical information:
- HS Code: 90261000
- Ean Code: 7640178725751
- Weight: 1.40kg
A2C1745940001
Data sheet
- Warning contact
- None
- Supply voltage
- 6 - 24 Volt DC
- Adjustable sensor
- No
- Packaging
- VDO Sensor retail packaging
- Application
- VDO Level measurement
- Tank depth range
- 900 mm to 1,500 mm
- Signal analog
- Empty - Full : 0 - 180 Ohm
- Sensor type
- Tube sensors 54mm stainless steel
- Sensor signal
- Isolated from mass
- Installation size
- 54mm SAE 5-Hole Flange
- Connector type
- TE Superseal 2-pole IP67
- Communication
- Analogue
- Category
- Fuel level sensors
- Article status
- Available to order
Specific References
- EAN13
- 7640178725751
- MPN
- A2C1745940001
A2C1745940001
- Stainless Steel Pipe Float Sensor
- Tube length: 1.100mm - Tube Ø 38mm
- Application: Water-Fuel-Alcohol
- 5-Hole SAE Flange 54mm PA66 GF30
- Signal Empty-Full: 0-180 Ohm
- Connector 2-pole IP67 - Ground-free
