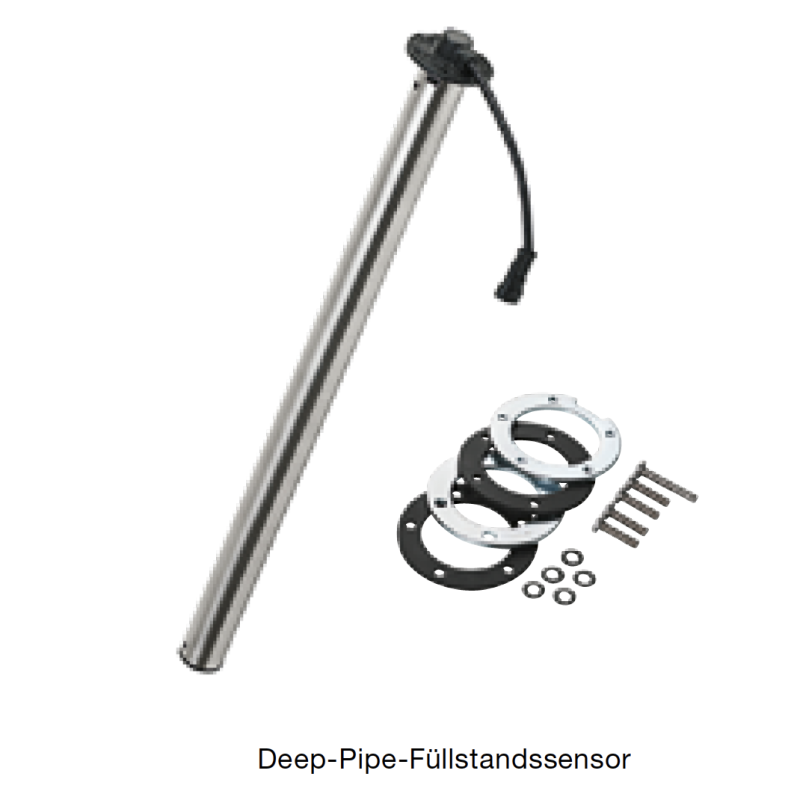

Veratron 54mm Stainless Steel Pipe Float 500mm - L-V is 90-4 Ω - Contactless 21 Resistances
€84.45
(tax incl.)
€69.79 (VAT Excl.)
Part-number:
A2C1750500001
- Stainless Steel Pipe Float Sensor
- Tube length: 500mm - Tube Ø 38mm
- Application: Water-Fuel-Alcohol
- 5-Hole SAE Flange 54mm PA66 GF30
- Signal Empty-Full: 90-4 Ohms
- Connector 2-pole IP67 - Ground-free
Logistical information:
- HS Code: 90261000
- Ean Code: 7640178726635
- Weight: 0.95kg
A2C1750500001
Data sheet
- Warning contact
- None
- Supply voltage
- 6 - 24 Volt DC
- Adjustable sensor
- No
- Packaging
- VDO Sensor retail packaging
- Application
- VDO Level measurement
- Tank depth range
- 500 mm to 550 mm
- Signal analog
- Empty - Full : 90 - 4 Ohm
- Sensor type
- Tube sensors 54mm stainless steel
- Sensor signal
- Isolated from mass
- Installation size
- 54mm SAE 5-Hole Flange
- Connector type
- TE Superseal 2-pole IP67
- Communication
- Analogue
- Category
- Fuel level sensors
- Article status
- Available to order
Specific References
- EAN13
- 7640178726635
- MPN
- A2C1750500001
A2C1750500001
- Stainless Steel Pipe Float Sensor
- Tube length: 500mm - Tube Ø 38mm
- Application: Water-Fuel-Alcohol
- 5-Hole SAE Flange 54mm PA66 GF30
- Signal Empty-Full: 90-4 Ohms
- Connector 2-pole IP67 - Ground-free
