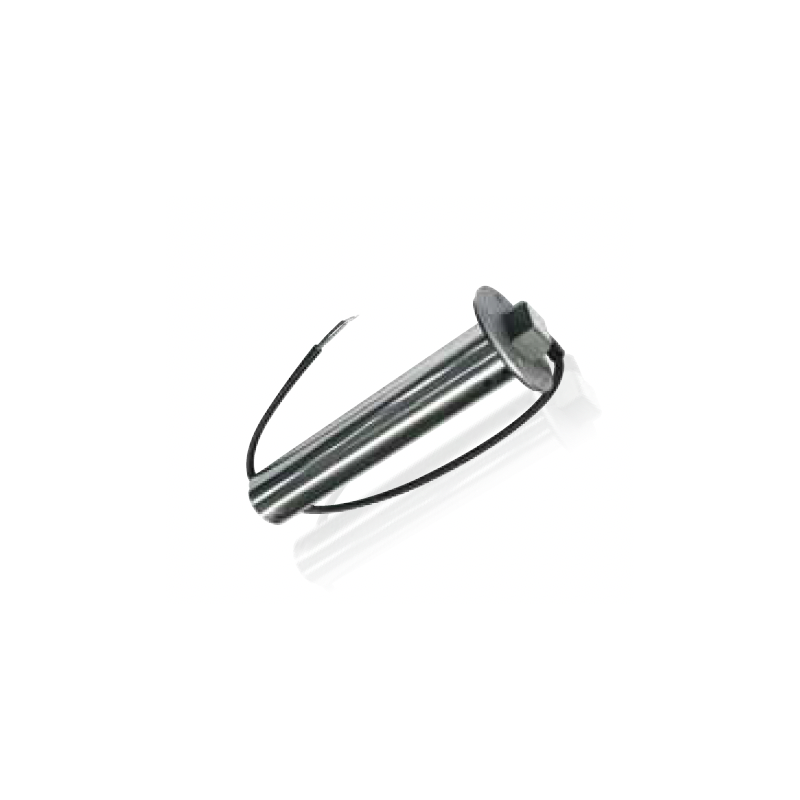

ES-224-011-0450G VDO Ø54mm Stainless Steel 316 Tube Float Contactless 450 mm - Empty-Full 0-180 Ohm
search
  • ES-224-011-0450G VDO Ø54mm Stainless Steel 316 Tube Float Contactless 450 mm - Empty-Full 0-180 Ohm
  • ES-224-011-0450G VDO Ø54mm Stainless Steel 316 Tube Float Contactless 450 mm - Empty-Full 0-180 Ohm

VDO Ø54mm Stainless Steel 316 Pipe Float Contactless 450 mm - Empty-Full 0-180 Ohm

€115.49 (tax incl.)

€95.45 (VAT Excl.)

Part-number:

VDO ES-224-011-0450G

  • Pipe float sensor stainless steel AISI316
  • Tube length: 450mm - Ø40.5mm
  • 5-Hole SAE Flange 54 mm PA66 GF30
  • Resistance empty-full: 0-180 Ohm
  • Suitable for water and fuel
  • Packaging 1 Pipe float L = 450mm
Logistical information:
Limited availability of run-out itemClick here for detailed information.
  • HS Code: 90269000
  • Ean Code: 4103590761194
  • Weight: 0.71kg
Quantity

Technical description Ø54mm Fuel Tube Float Sensor:

VDO ES-224-011-0450G specifications:

Mechanical properties:

Tube length: 450 mm ± 2.0 mm
Minimum tank depth: 450mm ± 2.0mm + 4.0mm
Auxiliary spring: No
Mounting flange: 5-Hole SAE 54 mm
Operating Temperature: -30°C to +70°C
Fuel: Oil - petroleum - diesel - petrol

Electrical properties:

Supply voltage: 6 - 24 V DC
Resistance value empty: 0 Ohm ± 2.5 Ohm
Resistance value full: 180 Ohm ± 1.5 Ohm
Warning contact: None
Warning function: Optional VDO A2C59510886 Makepoint Switch
Fuel tube sensor output signal: 1-pole min to ground

Retail packaging:

  • VDO ES-224-011-0450G Standard 54mm Metal Fuel Tube Float Level Sensor
  • Safety Instructions
  • Installation Instructions
VDO Continental I
ES-224-011-0450G

Data sheet

Warning contact
None
Supply voltage
6 - 24 Volt DC
Adjustable sensor
No
Packaging
VDO Sensor retail packaging
Application
VDO Level measurement
Tank depth range
450 mm to 500 mm
Signal analog
Empty - Full : 0 - 180 Ohm
Sensor type
Tube sensors 54mm stainless steel
Sensor signal
Isolated from mass
Installation size
54mm SAE 5-Hole Flange
Connector type
None
Communication
Analogue
Category
Fuel level sensors
Article status
Limited availability of run-out item

Specific References

EAN13
4103590761194
MPN
ES-224-011-0450G
