  • 54mm Fuel Tubular Sensors: A2C1750750001 VDO

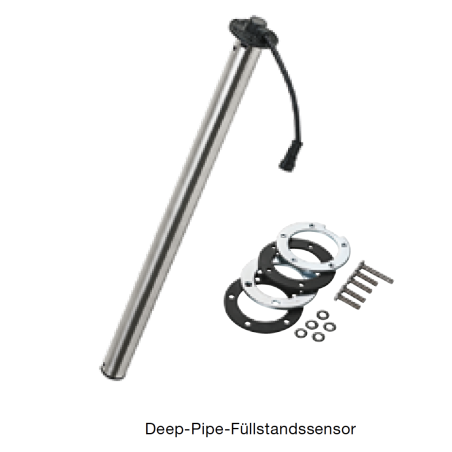

Veratron Ø54mm SS 316 Tubular Sensor Contactless 850 mm - Empty-Full 90-4 Ohm

€145.20 (tax incl.)

€120.00 (VAT Excl.)

Part-number:

Veratron A2C1750750001

  • Tubular sensor stainless steel
  • Tube length: 850mm - Ø38mm
  • 5-hole SAE Flange 54 mm PA66 GF30
  • Resistance empty-full: 90-4 Ohm
  • Suitable for water and fuel
  • Package 1 Tubular sensor L = 850mm
Logistical information:
OrderableClick here for detailed information.
  • HS Code: 90261000
  • Ean Code: 7640178726703
  • Weight: 1.63kg
Quantity

Description Ø54mm Tubular fuel sensor:

Veratron A2C1750750001 Full technical specifications:

Mechanical features:

Tube length: 850 mm ± 2.0 mm
Minimum tank depth: 850 mm ± 2.0 mm + 4.0 mm
Support spring: None
Mounting flange: 5-Hole SAE 54 mm
Operating temperature: -25 °C to +65 °C
Fuel: Oil - petroleum - diesel - gasoline

Electrical features:

Operating voltage: 6 - 24 V DC
Resistance empty: 81.6 Ohm ± 2.5 Ohm
Resistance full: 2.0 Ohm ± 1.5 Ohm
Waarschuwings contact: None
Optional warning contact: Veratron A2C59510886 Makepoint Switch

Retail package:

  • Veratron A2C1750750001 Standard 54 mm metal tubular fuel level sender
  • Veratron Sensors are - unless otherwise noted - delivered without connecting material
Veratron VDO
A2C1750750001

Data sheet

Warning contact
None
Operating voltage
6 - 24 Volt DC
Adjustable sensor
No
Packaging
VDO Sensor retail package
Application
VDO Level measurement
Tank depth range
800 mm to 900 mm
Signal analogue
Empty - Full : 90 - 4 Ohm
Sensor type
Tubular sensors 54mm SS
Sensor signal
Insulated return
Installation dimension
54 mm SAE 5-Hole flange
Connector type
TE Superseal 2-Pole IP67
Communication
Analog
Category
Fuel level sensors
Article status
Orderable

Specific References

ISBN
90261000
EAN13
7640178726703
MPN
A2C1750750001
