VDO Heavy Duty Ø80mm Pipe Float - 551mm
Part-number:
VDO X10-224-009-053
- Heavy Duty Fuel Tube Float Sensor
- Tube length: 551 mm
- 6-Hole Flange 80 mm
- Resistance empty-full: 69.3 - 0.8 Ohm
- Retail packaging 1 HD Pipe float 551mm
Logistical information:
- HS Code: 90269000
- Ean Code: 410359069542
- Weight: 1.24kg
Technical description Heavy Duty Ø80mm Pipe Float Sensor:
VDO X10 224 009 053 specifications:

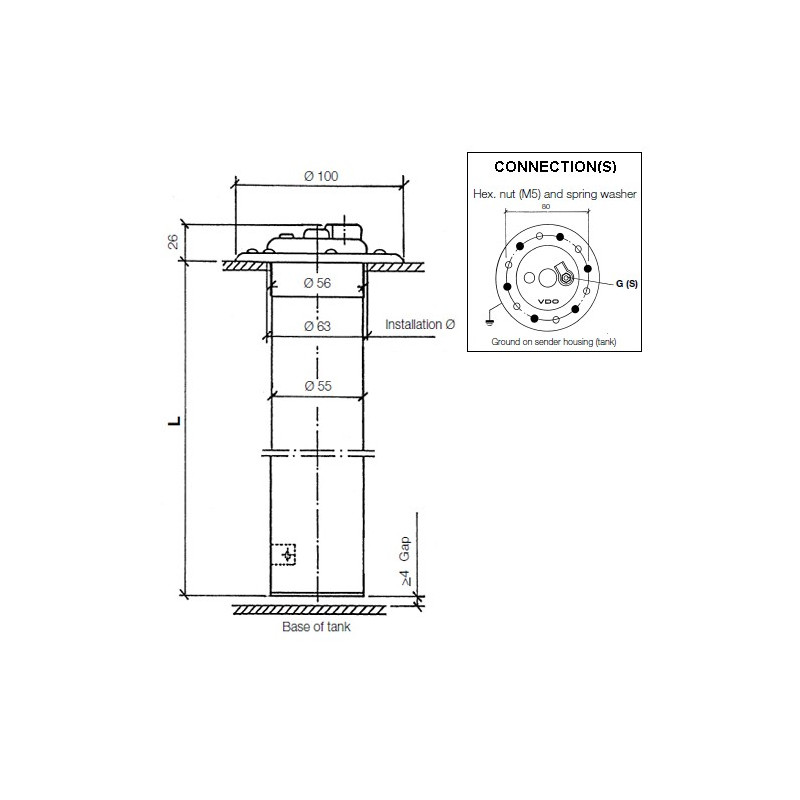

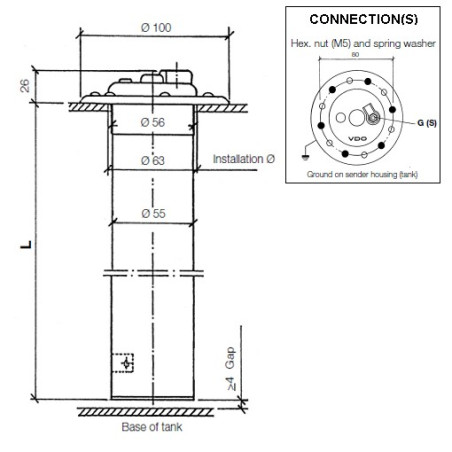

Mechanical properties:
| Tube length: | 551 mm ± 2.0 mm |
| Minimum tank depth: | 551 mm ± 2.0 mm + 4.0 mm |
| Auxiliary spring: | No |
| Mounting flange: | 6-Hole 80 mm |
| Operating Temperature: | -25 °C to +65 °C |
| Liquids: | Oil - petroleum - diesel - petrol |
Electrical properties:
| Supply voltage: | 6 - 24 V DC |
| Resistance value empty: | 69.3 Ohms ± 1.4 Ohms |
| Resistance value full: | 0.8 Ohm ± 0.4 Ohm |
| Warning contact: | None |
| Warning function: | Optional VDO A2C59510886 Makepoint Switch |
| Fuel tube sensor output signal: | 1-pole min to ground |
Datasheets and tables:
| VDO 2014 EN Full Program Catalog: | Page 188 - 190 |
Retail packaging:
- VDO X10 224 009 053 Fuel tube float level sensor
- VDO Sensors are - unless otherwise stated - supplied without connection material
X10-224-009-053
Data sheet
- Warning contact
- None
- Predecessor
- 224082009053R
- Adjustable sensor
- No
- Packaging
- VDO Sensor retail packaging
- Application
- VDO Level measurement
- Tank depth range
- 550 mm to 600 mm
- Signal analog
- Empty - Full : 60-90 - 0.5 Ohm
- Sensor type
- Tube Sensors 80mm Aluminum
- Sensor signal
- Minus in mass
- Country of origin
- Germany
- Installation size
- 80mm 6-Hole Flange
- Communication
- Analogue
- Category
- Fuel level sensors
- Article status
- Expired product
Specific References
- EAN13
- 410359069542
- MPN
- X10-224-009-053
