VDO Heavy Duty Ø80mm Pipe Float - 846mm

Part-number:

VDO X10-224-021-006

  • Heavy Duty Fuel Tube Float Sensor
  • Tube length: 846 mm
  • 6-Hole Flange 80 mm
  • Resistance empty-full: 75.0 - 0.7 Ohm
  • Retail packaging 1 HD Pipe float 846mm
Logistical information:
Expired productClick here for detailed information.
  • HS Code: 90269000
  • Weight: 0.50kg
Discontinued article
Replacement article on request

Technical description Heavy Duty Ø80mm Pipe Float Sensor:

VDO X10 224 021 006 Specifications:

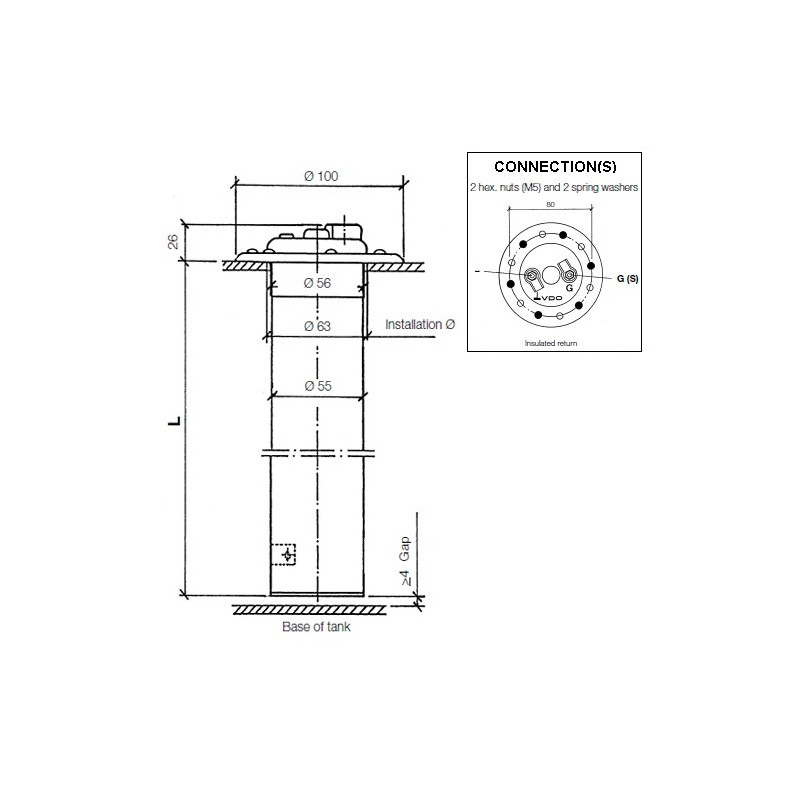

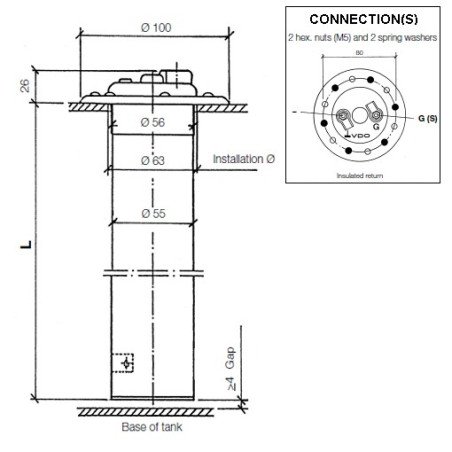

Mechanical properties:

Tube length: 846 mm ± 2.0 mm
Minimum tank depth: 846 mm ± 2.0 mm + 4.0 mm
Auxiliary spring: No
Mounting flange: 6-Hole 80 mm
Operating Temperature: -25 °C to +65 °C
Liquids: Oil - petroleum - diesel - petrol

Electrical properties:

Supply voltage: 6 - 24 V DC
Resistance value empty: 75.0 Ohm ± 1.6 Ohm
Resistance value full: 0.7 Ohm ± 0.4 Ohm
Warning contact: None
Warning function: Optional VDO A2C59510886 Makepoint Switch
Fuel tube sensor output signal: 1-pole min to ground

Datasheets and tables:

VDO 2014 EN Full Program Catalog: Page 188 - 190

Retail packaging:

  • VDO X10 224 021 006 Fuel tube float level sensor
  • VDO Sensors are - unless otherwise stated - supplied without connection material
X10-224-021-006

Data sheet

Warning contact
None
Adjustable sensor
No
Packaging
VDO Sensor retail packaging
Application
VDO Level measurement
Tank depth range
800 mm to 900 mm
Signal analog
Empty - Full : 60-90 - 0.5 Ohm
Sensor type
Tube Sensors 80mm Aluminum
Sensor signal
Isolated from mass
Installation size
80mm 6-Hole Flange
Communication
Analogue
Category
Fuel level sensors
Article status
Expired product

Specific References

MPN
X10-224-021-006
