VDO Heavy Duty Ø80mm Pipe Float - 426mm
€318.71
(tax incl.)
€263.40 (VAT Excl.)
Part-number:
VDO X10-224-014-021
- Heavy Duty Fuel Tube Float Sensor
- Tube length: 426 mm
- 6-Hole Flange 80 mm
- Resistance empty-full: 78.4 - 1.5 Ohm
- Replacement HD Pipe Float 426mm on request
Logistical information:
- Weight: 0.50kg
Technical description Heavy Duty Ø80mm Pipe Float Sensor:
VDO X10 224 014 021 Specifications:

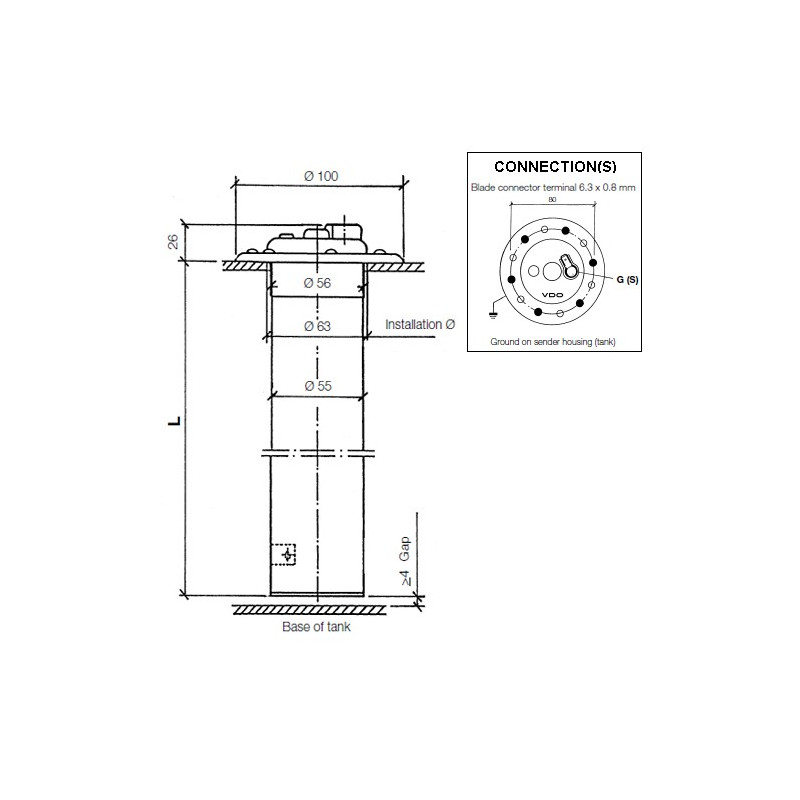

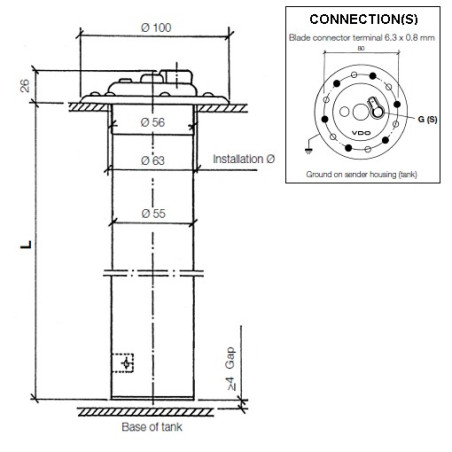

Mechanical properties:
| Tube length: | 426 mm ± 2.0 mm |
| Minimum tank depth: | 426 mm ± 2.0 mm + 4.0 mm |
| Auxiliary spring: | No |
| Mounting flange: | 6-Hole 80 mm |
| Operating Temperature: | -25 °C to +65 °C |
| Liquids: | Oil - petroleum - diesel - petrol |
Electrical properties:
| Supply voltage: | 6 - 24 V DC |
| Resistance value empty: | 78.4 Ohms ± 1.6 Ohms |
| Resistance value full: | 1.5 Ohms ± 0.4 Ohms |
| Warning contact: | None |
| Warning function: | Optional VDO A2C59510886 Makepoint Switch |
| Fuel tube sensor output signal: | 1-pole min to ground |
Datasheets and tables:
| VDO 2014 EN Full Program Catalog: | Page 188 - 190 |
Replacement Item:
- Replacement item on request
- VDO Sensors are supplied - unless otherwise stated - without connection material
X10-224-014-021
Data sheet
- Warning contact
- None
- Adjustable sensor
- No
- Application
- VDO Level measurement
- Tank depth range
- 400 mm to 450 mm
- Signal analog
- Empty - Full : 60-90 - 0.5 Ohm
- Sensor type
- Tube Sensors 80mm Aluminum
- Sensor signal
- Minus in mass
- Installation size
- 80mm 6-Hole Flange
- Communication
- Analogue
- Category
- Fuel level sensors
- Article status
- Limited availability of run-out item
Specific References
- MPN
- X10-224-014-021
