VDO Heavy Duty Ø80mm Pipe Float - 380mm

Part-number:

VDO X10-224-014-030

  • Heavy Duty Fuel Tube Float Sensor
  • Tube length: 380 mm
  • 6-Hole Flange 80 mm
  • Resistance empty-full: 88.5 - 2.2 Ohm
  • Replacement HD Pipe Float 380mm on request
Logistical information:
Expired productClick here for detailed information.
  • Weight: 0.50kg
Discontinued article
Replacement article on request

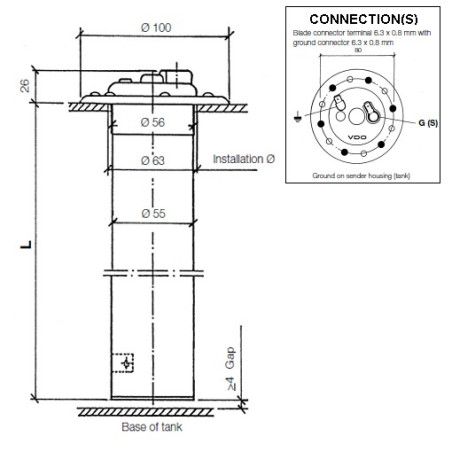

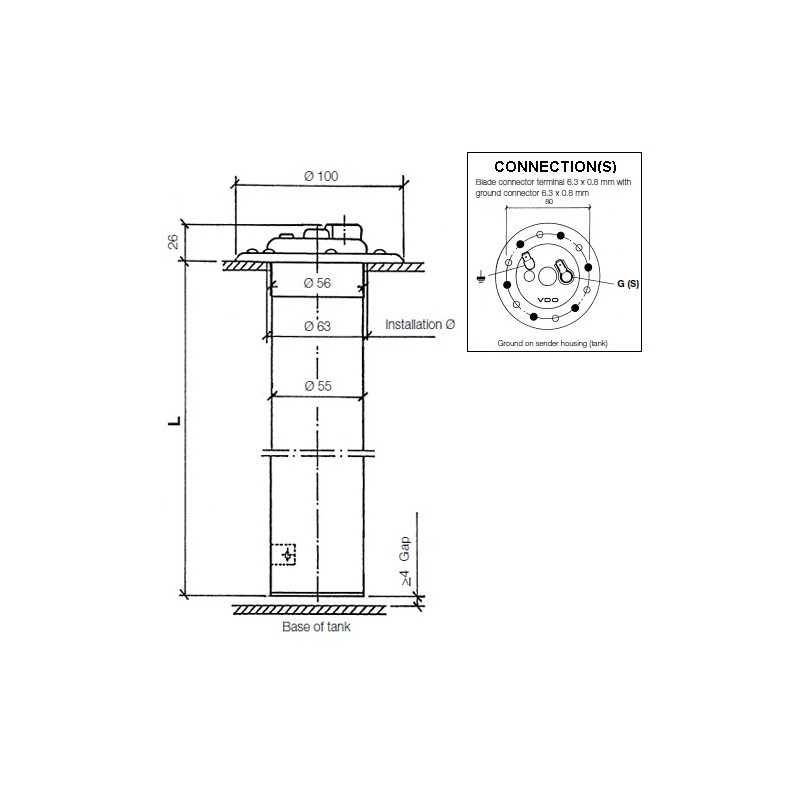

Technical description Heavy Duty Ø80mm Pipe Float Sensor:

VDO X10 224 014 030 Specifications:

Mechanical properties:

Tube length: 380 mm ± 2.0 mm
Minimum tank depth: 380mm ± 2.0mm + 4.0mm
Auxiliary spring: No
Mounting flange: 6-Hole 80 mm
Operating Temperature: -25 °C to +65 °C
Liquids: Oil - petroleum - diesel - petrol

Electrical properties:

Supply voltage: 6 - 24 V DC
Resistance value empty: 88.5 Ohms ± 1.8 Ohms
Resistance value full: 2.2 Ohms ± 0.4 Ohms
Warning contact: None
Warning function: Optional VDO A2C59510886 Makepoint Switch
Fuel tube sensor output signal: 1-pole min to ground

Datasheets and tables:

VDO 2014 EN Full Program Catalog: Page 188 - 190

Replacement Item:

  • Replacement item on request
  • VDO Sensors are supplied - unless otherwise stated - without connection material
X10-224-014-030

Data sheet

Warning contact
None
Adjustable sensor
No
Application
VDO Level measurement
Tank depth range
350 mm to 400 mm
Signal analog
Empty - Full : 60-90 - 0.5 Ohm
Sensor type
Tube Sensors 80mm Aluminum
Sensor signal
Minus in mass
Installation size
80mm 6-Hole Flange
Communication
Analogue
Category
Fuel level sensors
Article status
Expired product

Specific References

MPN
X10-224-014-030
