VDO Heavy Duty Ø80mm Pipe Float - 536mm
Part-number:
VDO X10-224-021-001
- Heavy Duty Fuel Tube Float Sensor
- Tube length: 536 mm
- 6-Hole Flange 80 mm
- Resistance empty-full: 67.9 - 1.0 Ohm
- Replacement HD Pipe Float 536mm on request
Logistical information:
- Weight: 0.50kg
Technical description Heavy Duty Ø80mm Pipe Float Sensor:
VDO X10 224 021 001 specifications:

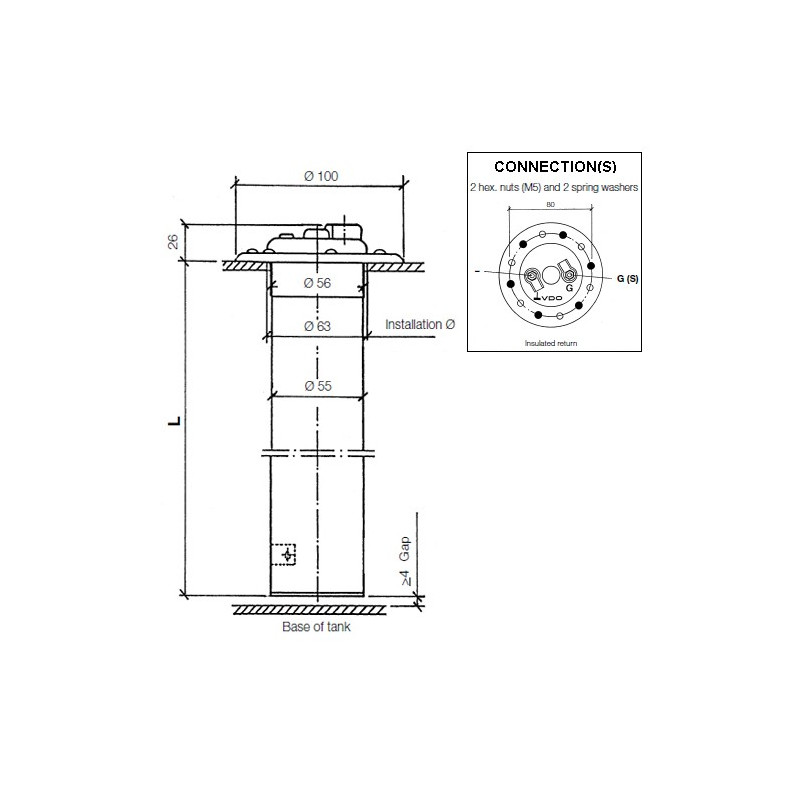

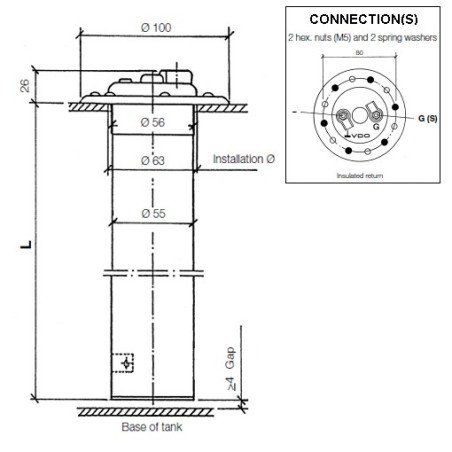

Mechanical properties:
| Tube length: | 536 mm ± 2.0 mm |
| Minimum tank depth: | 536 mm ± 2.0 mm + 4.0 mm |
| Auxiliary spring: | No |
| Mounting flange: | 6-Hole 80 mm |
| Operating Temperature: | -25 °C to +65 °C |
| Liquids: | Oil - petroleum - diesel - petrol |
Electrical properties:
| Supply voltage: | 6 - 24 V DC |
| Resistance value empty: | 67.9 Ohms ± 1.4 Ohms |
| Resistance value full: | 1.0 Ohm ± 0.4 Ohm |
| Warning contact: | None |
| Warning function: | Optional VDO A2C59510886 Makepoint Switch |
| Fuel tube sensor output signal: | 1-pole min to ground |
Datasheets and tables:
| VDO 2014 EN Full Program Catalog: | Page 188 - 190 |
Replacement Item:
- Replacement item on request
- VDO Sensors are supplied - unless otherwise stated - without connection material
X10-224-021-001
Data sheet
- Warning contact
- None
- Adjustable sensor
- No
- Application
- VDO Level measurement
- Tank depth range
- 500 mm to 550 mm
- Signal analog
- Empty - Full : 60-90 - 0.5 Ohm
- Sensor type
- Tube Sensors 80mm Aluminum
- Sensor signal
- Isolated from mass
- Installation size
- 80mm 6-Hole Flange
- Communication
- Analogue
- Category
- Fuel level sensors
- Article status
- Expired product
Specific References
- MPN
- X10-224-021-001
