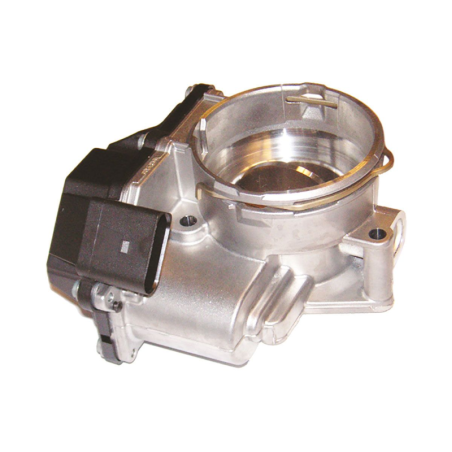

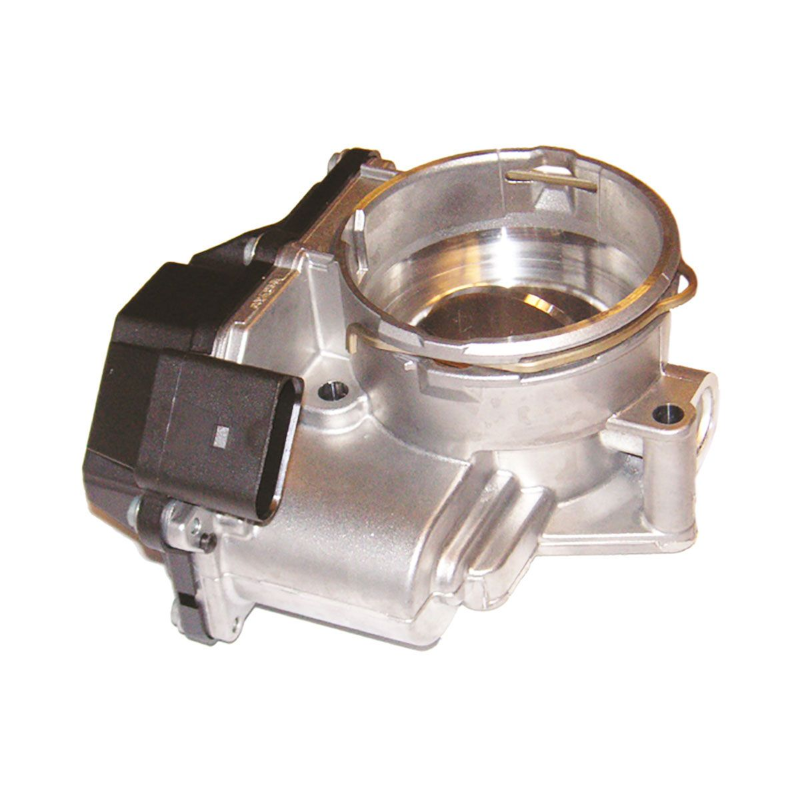

VDO A2C59512934 Throttle Body for Audi Seat Skoda Volkswagen (VW)
Part-number:
VDO A2C59512934
- Diameter 47mm
- Gasket included
- Electric control
- Controller needs to be taught/updated
- Replaced by A2C59511699
Logistical information:
- HS Code: 84818059
- Weight: 1.00kg
Specifications A2C59512934:
Always compare the old and new part (especially the OE number).
Parts at risk from electrostatic discharge (DO NOT TOUCH THE CONTACTS OF THE SOCKET)
| Audi Seat Skoda VW OE Number | Reference info |
| 03G 128 063 M | Including gasket, controller must be taught/updated |
| 03G128063M | Gasket included, controller needs learning/updating |
| 03G 128 063 G | Gasket included, controller must be taught-in/updated |
| 03G128063G | Gasket included, controller must be taught-in/updated |
| 03G 128 063 A | Gasket included, controller must be taught-in/updated |
| 03G128063A | Packing included, controller must be taught-in/updated |
| 03G 128 063 Q | Packing included, inverter must be taught-in/updated |
| 03G128063MQ | Packing included, controller needs learning/updating |
| Model Audi | Model year | kW | HP | cc | Type |
| A3 (8P1) 1.9 TDI Engine Code: BLS | 05.2003-05.2010 | 77 | 105 | 1896 | Hatchback |
| A3 (8P1) 2.0 TDI Engine Code: BMM | 06.2005-06.2008 | 103 | 140 | 1968 | Hatchback |
| A3 (8P1) 2.0 TDI quattro Engine Code: BMM | 01.2006-06.2008 | 103 | 140 | 1968 | Hatchback |
| A3 Convertible (8P7) 1.9 TDI Engine Code: BLS | 04.2008-10.2009 | 77 | 105 | 1896 | Convertible |
| A3 Sportback (8PA) 1.9 TDI Engine Code: BLS | 09.2004-05.2010 | 77 | 105 | 1896 | Hatchback |
| A3 Sportback (8PA) 2.0 TDI Engine Code: BMM | 06.2005-06.2008 | 103 | 140 | 1968 | Hatchback |
| A3 Sportback (8PA) 2.0 TDI quattro Engine Code: BMM | 01.2006-06.2008 | 103 | 140 | 1968 | Hatchback |
| Model Seat | Model year | kW | HP | cc | Type |
| TOLEDO III (5P2) 2.0 TDI Engine Code: BMM | 11.2005-05.2009 | 103 | 140 | 1968 | MPV |
| TOLEDO III (5P2) 1.9 TDI Engine Code: BLS | 10.2004-05.2009 | 77 | 105 | 1896 | MPV |
| LEON (1P1) 2.0 TDI Engine Code: BMM Chassis number (VIN) from: 1P-6-000 001 | 10.2005-10.2010 | 103 | 140 | 1968 | Hatchback |
| LEON (1P1) 1.9 TDI Engine Code: BLS Chassis number (VIN) from: 1P-6-000 001 | 07.2005-12.2010 | 77 | 105 | 1896 | Hatchback |
| IBIZA IV SC (6J1, 6P5) 1.9 TDI Engine Code: BLS Chassis number (VIN) from: 6J-9-000 001 | 07.2008-06.2010 | 77 | 105 | 1896 | Hatchback |
| IBIZA IV SC (6J1, 6P5) 1.9 TDI Engine Code: BXJ Chassis number (VIN) from: 6J-9-000 001 | 06.2008-06.2010 | 66 | 90 | 1896 | Hatchback |
| IBIZA IV SC (6J1, 6P5) 1.4 TDI Engine Code: BMS Chassis number (VIN) from: 6J-9-000 001 | 07.2008-06.2010 | 59 | 80 | 1422 | Hatchback |
| IBIZA IV (6J5, 6P1) 1.9 TDI Engine Code: BLS Chassis number (VIN) from: 6J-9-000 001 | 03.2008-06.2010 | 77 | 105 | 1896 | Hatchback |
| IBIZA IV (6J5, 6P1) 1.9 TDI Engine Code: BXJ Chassis number (VIN) from: 6J-9-000 001 | 07.2008-06.2010 | 66 | 90 | 1896 | Hatchback |
| IBIZA IV (6J5, 6P1) 1.4 TDI Engine Code: BMS Chassis number (VIN) from: 6J-9-000 001 | 07.2008-06.2010 | 59 | 80 | 1422 | Hatchback |
| IBIZA III (6L1) 1.9 TDI Engine Code: BMT Year built from: 01.2006 | 02.2002-11.2009 | 74 | 100 | 1896 | Hatchback |
| IBIZA III (6L1) 1.4 TDI Engine Code: BMS | 06.2005-11.2009 | 59 | 80 | 1422 | Hatchback |
| CORDOBA (6L2) 1.9 TDI Engine Code: BMT Year built from: 01.2006 | 09.2002-11.2009 | 74 | 100 | 1896 | Saloon |
| CORDOBA (6L2) 1.4 TDI Engine Code: BMS | 06.2005-11.2009 | 59 | 80 | 1422 | Saloon |
| ALTEA XL (5P5, 5P8) 2.0 TDI 4x4 Engine Code: BMM | 06.2007-11.2010 | 103 | 140 | 1968 | MPV |
| ALTEA XL (5P5, 5P8) 2.0 TDI Engine Code: BMM | 10.2006-11.2010 | 103 | 140 | 1968 | MPV |
| ALTEA XL (5P5, 5P8) 1.9 TDI Engine Code: BLS | 10.2006-12.2010 | 77 | 105 | 1896 | MPV |
| ALTEA (5P1) 2.0 TDI Engine Code: BMM | 11.2005-11.2010 | 103 | 140 | 1968 | MPV |
| ALTEA (5P1) 1.9 TDI Engine Code: BLS | 04.2004-12.2010 | 77 | 105 | 1896 | MPV |
| Model Skoda | Model year | kW | HP | cc | Type |
| SUPERB II Estate (3T5) 2.0 TDI Engine Code: BMP Chassis number (VIN) from: 3T-8-000 001 | 10.2009-03.2010 | 103 | 140 | 1968 | Estate |
| SUPERB II Estate (3T5) 1.9 TDI Engine Code: BLS Chassis number (VIN) from: 3T-8-000 001 | 10.2009-11.2010 | 77 | 105 | 1896 | Estate |
| SUPERB II (3T4) 2.0 TDI Engine Code: BMP Chassis number (VIN) from: 3T-8-000 001 | 03.2008-05.2010 | 103 | 140 | 1968 | Hatchback |
| SUPERB II (3T4) 1.9 TDI Engine Code: BLS Chassis number (VIN) from: 3T-8-000 001 | 03.2008-11.2010 | 77 | 105 | 1896 | Hatchback |
| ROOMSTER (5J7) 1.4 TDI Engine Code: BMS | 09.2006-03.2010 | 59 | 80 | 1422 | MPV |
| OCTAVIA II Combi (1Z5) 2.0 TDI 4x4 Engine Code: BMM Chassis number (VIN) from: 1Z-4-000 001 | 07.2006-05.2010 | 103 | 140 | 1968 | Estate |
| OCTAVIA II Combi (1Z5) 2.0 TDI Engine Code: BMM Chassis number (VIN) from: 1Z-4-000 001 | 11.2005-05.2010 | 103 | 140 | 1968 | Estate |
| OCTAVIA II Combi (1Z5) 1.9 TDI 4x4 Engine Code: BLS Chassis number (VIN) from: 1Z-4-000 001 | 11.2004-12.2010 | 77 | 105 | 1896 | Estate |
| OCTAVIA II Combi (1Z5) 1.9 TDI Engine Code: BLS Chassis number (VIN) from: 1Z-4-000 001 | 09.2004-12.2010 | 77 | 105 | 1896 | Estate |
| OCTAVIA II (1Z3) 2.0 TDI Engine Code: BMM Chassis number (VIN) from: 1Z-4-000 001 | 11.2005-05.2010 | 103 | 140 | 1968 | Hatchback |
| OCTAVIA II (1Z3) 1.9 TDI Engine Code: BLS Chassis number (VIN) from: 1Z-4-000 001 | 06.2004-12.2010 | 77 | 105 | 1896 | Hatchback |
| FABIA II Combi (545) 1.9 TDI Engine Code: BLS Chassis number (VIN) from: 5J-7-000 001 | 10.2007-03.2010 | 77 | 105 | 1896 | Estate |
| FABIA II Combi (545) 1.4 TDI Engine Code: BMS Chassis number (VIN) from: 5J-7-000 001 | 10.2007-03.2010 | 59 | 80 | 1422 | Estate |
| FABIA II (542) 1.9 TDI Engine Code: BLS Chassis number (VIN) from: 5J-7-000 001 | 04.2007-03.2010 | 77 | 105 | 1896 | Hatchback |
| FABIA II (542) 1.4 TDI Engine Code: BMS Chassis number (VIN) from: 5J-7-000 001 | 01.2007-03.2010 | 59 | 80 | 1422 | Hatchback |
| Model Volkswagen (VW) | Model year | kW | HP | cc | Type |
| TRANSPORTER T5 Van (7HA, 7HH, 7EA, 7EH) 1.9 TDI Mototr Code: BRS Chassis number (VIN) from: 7H-6-000 001, until 7J-9-020 000 | 01.2006-11.2009 | 75 | 102 | 1896 | From |
| TRANSPORTER T5 Van (7HA, 7HH, 7EA, 7EH) 1.9 TDI Mototr Code: BRR Chassis number (VIN) from: 7H-6-000 001, until 7J-9-020 000 | 01.2006-11.2009 | 62 | 84 | 1896 | From |
| TRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F 1.9 TDI Mototr Code: BRS Chassis number (VIN) from: 7H-6-000 001, until 7J-9-020 000 | 01.2006-11.2009 | 75 | 102 | 1896 | Platform/Chassis |
| TRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F 1.9 TDI Mototr Code: BRR Chassis number (VIN) from: 7H-6-000 001, until 7J-9-020 000 | 01.2006-11.2009 | 62 | 84 | 1896 | Platform/Chassis |
| TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ) 1.9 TDI Mototr Code: BRS Chassis number (VIN) from: 7H-6-000 001, until 7J-9-020 000 | 01.2006-11.2009 | 75 | 102 | 1896 | Bus |
| TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ) 1.9 TDI Mototr Code: BRR Chassis number (VIN) from: 7H-6-000 001, until 7J-9-020 000 | 01.2006-11.2009 | 62 | 84 | 1896 | Bus |
| totURAN (1T1, 1T2) 2.0 TDI Mototr Code: BMM Year built from: 01.2006 | 12.2005-05.2010 | 103 | 140 | 1968 | MPV |
| totURAN (1T1, 1T2) 1.9 TDI Mototr Code: BLS Year built from: 01.2006 | 08.2003-05.2010 | 77 | 105 | 1896 | MPV |
| POLO IV (9N_, 9A_) 1.9 TDI Mototr Code: BMT Year built from: 01.2005 Chassis number (VIN) from: 9N-5-500 001 | 10.2001-11.2009 | 74 | 101 | 1896 | Hatchback |
| POLO IV (9N_, 9A_) 1.4 TDI Mototr Code: BMS Chassis number (VIN) from: 9N-5-500 001 | 04.2005-11.2009 | 59 | 80 | 1422 | Hatchback |
| POLO IV (9N_, 9A_) 1.4 TDI Mototr Code: BWB Chassis number (VIN) from: 9N-5-500 001 | 04.2005-11.2009 | 51 | 70 | 1422 | Hatchback |
| PASSAT B6 Variant (3C5) 2.0 TDI 4motion Mototr Code: BMP Year built to: 12.2008 | 08.2005-05.2009 | 103 | 140 | 1968 | Estate |
| PASSAT B6 Variant (3C5) 2.0 TDI Mototr Code: BMP Built to: 12.2008 | 08.2005-05.2009 | 103 | 140 | 1968 | Estate |
| PASSAT B6 Variant (3C5) 1.9 TDI Mototr Code: BLS | 08.2005-11.2010 | 77 | 105 | 1896 | Estate |
| PASSAT B6 (3C2) 2.0 TDI 4motion Mototr Code: BMP Year built to: 12.2008 | 03.2005-05.2009 | 103 | 140 | 1968 | Saloon |
| PASSAT B6 (3C2) 2.0 TDI Mototr Code: BMP Built to: 12.2008 | 03.2005-05.2009 | 103 | 140 | 1968 | Saloon |
| PASSAT B6 (3C2) 1.9 TDI Mototr Code: BLS | 03.2005-07.2010 | 77 | 105 | 1896 | Saloon |
| JETTA III (1K2) 2.0 TDI Mototr Code: BMM Year built until: 12.2008 | 10.2005-10.2010 | 103 | 140 | 1968 | Saloon |
| JETTA III (1K2) 1.9 TDI Mototr Code: BLS | 08.2005-10.2010 | 77 | 105 | 1896 | Saloon |
| GOLF V Variant (1K5) 2.0 TDI Mototr Code: BMM | 06.2007-07.2009 | 103 | 140 | 1968 | Estate |
| GOLF V Variant (1K5) 1.9 TDI 4motion Mototr Code: BLS | 01.2008-07.2009 | 77 | 105 | 1896 | Estate |
| GOLF V Variant (1K5) 1.9 TDI Mototr Code: BLS | 06.2007-07.2009 | 77 | 105 | 1896 | Estate |
| GOLF V (1K1) 2.0 TDI 4motion Mototr Code: BMM | 01.2007-11.2008 | 103 | 140 | 1968 | Hatchback |
| GOLF V (1K1) 2.0 TDI Mototr Code: BMM | 12.2004-11.2008 | 103 | 140 | 1968 | Hatchback |
| GOLF V (1K1) 1.9 TDI 4motion Mototr Code: BLS Year built from: 01.2008 | 08.2004-11.2008 | 77 | 105 | 1896 | Hatchback |
| GOLF V (1K1) 1.9 TDI Mototr Code: BLS Year built from: 01.2008 | 10.2003-11.2008 | 77 | 105 | 1896 | Hatchback |
| GOLF V (1K1) 1.9 TDI Mototr Code: BXJ Year built from: 01.2008 | 05.2004-11.2008 | 66 | 90 | 1896 | Hatchback |
| GOLF PLUS V (5M1, 521) 2.0 TDI Mototr Code: BMM Year built until: 12.2007 | 12.2005-05.2011 | 103 | 140 | 1968 | Hatchback |
| GOLF PLUS V (5M1, 521) 1.9 TDI Mototr Code: BLS Built to: 12.2007 | 01.2005-01.2009 | 77 | 105 | 1896 | Hatchback |
| EOS (1F7, 1F8) 2.0 TDI Mototr Code: BMM | 06.2006-05.2008 | 103 | 140 | 1968 | Convertible |
| CADDY III MPV (2KB, 2KJ, 2CB, 2CJ) 2.0 TDI Mototr Code: BMM | 09.2007-08.2010 | 103 | 140 | 1968 | MPV |
| CADDY III MPV (2KB, 2KJ, 2CB, 2CJ) 1.9 TDI 4motion Mototr Code: BLS | 05.2008-08.2010 | 77 | 105 | 1896 | MPV |
| CADDY III MPV (2KB, 2KJ, 2CB, 2CJ) 1.9 TDI Mototr Code: BLS | 04.2004-08.2010 | 77 | 105 | 1896 | MPV |
| CADDY III MPV (2KB, 2KJ, 2CB, 2CJ) 1.9 TDI Mototr Code: BSU | 09.2005-08.2010 | 55 | 75 | 1896 | MPV |
| CADDY III Box Body/MPV (2KA, 2KH, 2CA, 2CH) 2.0 TDI Mototr Code: BMM | 09.2007-08.2010 | 103 | 140 | 1968 | Box Body/MPV |
| CADDY III Box Body/MPV (2KA, 2KH, 2CA, 2CH) 1.9 TDI Mototr Code: BLS | 04.2004-08.2010 | 77 | 105 | 1896 | Box Body/MPV |
| CADDY III Box Body/MPV (2KA, 2KH, 2CA, 2CH) 1.9 TDI Mototr Code: BSU | 09.2005-08.2010 | 55 | 75 | 1896 | Box Body/MPV |
A2C59512934
Data sheet
- Country of origin
- Germany
- Fuel
- Diesel
- Article status
- Expired product
- Car brand
- Audi
Seat
Skoda
Volkswagen
Specific References
- MPN
- A2C59512934
