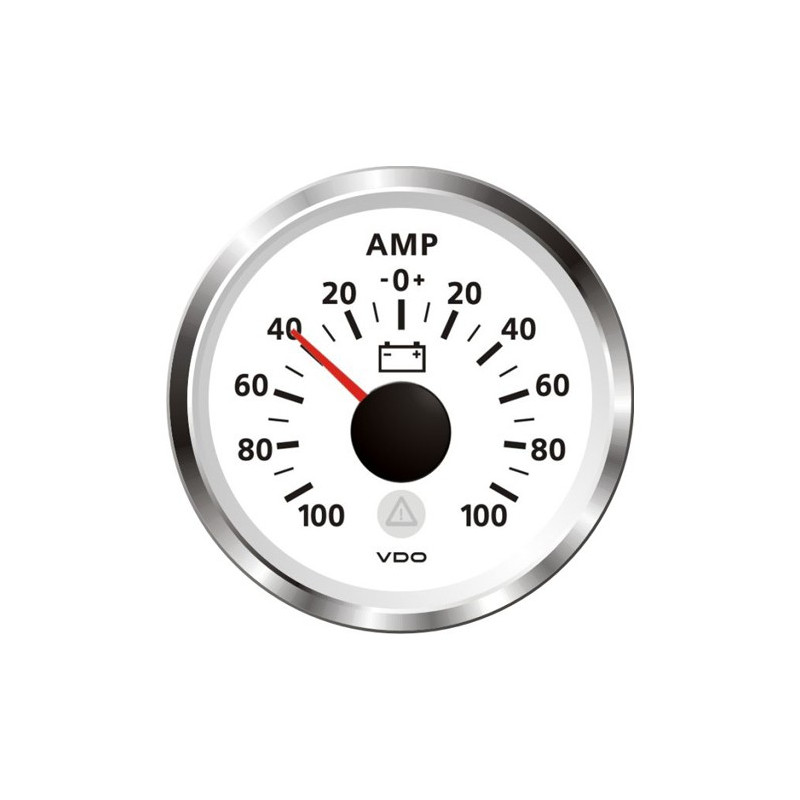

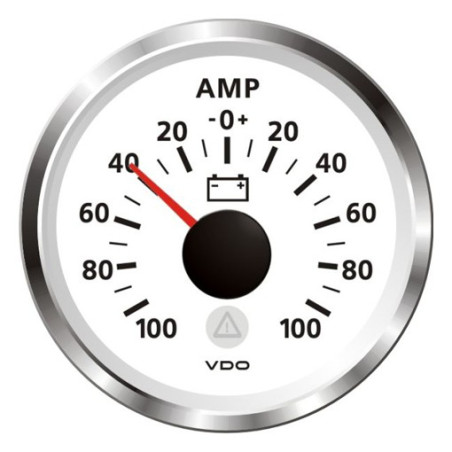

Name: Veratron Marine ViewLine Ammeter 100A White 52mm - SLTC
Brand: Veratron Marine
SKU: A2C59512312

A2C59512312 Veratron Marine ViewLine Ammeter 100A White 52mm - SLTC

Part-number:

Veratron A2C59512312

White - Front ring chrome triangle
Panel hole diameter: 52 mm - 2 1/16"
Measurement range: -100A to +100A DC
Analogue signal: -60 to +60 mV
Front: Single glazed
Front ring interchangeable

Logistical information:

Expired productClick here for detailed information.

HS Code: 90303399
Weight: 0.25kg

Technical specifications
Product Details

Functional description ViewLine Ammeter:

Veratron ViewLine Ammeters are used to measure the charging and discharging current of the battery and serve to check the alternator operation. ViewLine Ammeters work exclusively with the help of a shunt. The shunt is a low-impedance resistor that is incorporated into the battery cable. The advantage of this is that the battery cable does not have to be routed to the instrument. The battery cable is connected to the shunt and the Ammeter is then controlled by cables with a normal thickness of 0.75-1.5 mm2. The ViewLine meters are available in the Ampèrages 30 – 60 – 100 and 150. As a separate instrument or as a complete kit including shunt. The Veratron ammeters are equipped with LED backlight scale and pointer lighting. They have a very clear and easy-to-read white or black scale with red or white pointer for optimal contrast. There are 9 different models of interchangeable front rings in 3 different colors and 3 different profiles. The Veratron ViewLine meters can literally and figuratively take a beating. The front of the instruments is dust and waterproof with protection class IP67. The vibration resistance is 25G. The maximum ambient temperature is 80°C with a plastic front ring and when using a chrome front ring it is 70°C. The ViewLine marine series is equipped with a double anti-fog lens. The standard series has a single lens. Veratron ViewLine instruments are protected against polarity reversal and short circuits. Below you will find the full specifications. If you have any questions about Veratron ammeters, you can contact us by e-mail. Our technical staff will be happy to advise you on the Veratron programme and of course also on our other products in the field of ship technology.

Veratron ViewLine White A2C59512312 Specifications:

Dimensions and assembly:

Built-in (Hole) diameter and Outside diameter:	52 mm - 2 1/16 Inch and 59.25 mm - 2 1/3 Inch
Installation depth:	50 mm
Panel thickness with spinlock nut:	0.5 mm - 20 mm
Panel thickness with bracket mounting:	2 mm - 15 mm (Optional)
Flushmount mounting:	Optional kit A2C59510864

Functional:

Ampere Measurement Range:	-100A to +100A DC
Shunt:	Order separately
Input signal ammeter:	Veratron Shunt 0 to 60 mV DC
Measurement accuracy:	< 2.5 % of the full scale
Connection	Hirschmann 8 pin MQS connector

Power supply:

Supply voltage:	8 to 32 Volts DC
Power consumption:	< 140 mA including warning LED
Reverse polarity protection:	Yes - 5 minutes
Short-circuit resistance:	Yes - 1 minute

Scale & pointer:

Graduation:	240°
Scale color:	White
Scale lighting:	Amber LED backlight 605nm
Pointer:	Red with LED lighting
Alarm LED:	Red (632nm)

Version:

Model:	Veratron ViewLine Standard
Front glass type:	Single - Anti-Glare
Standard front ring:	Triangle chrome (Interchangeable)

Degree of protection and certification:

Front protection class:	IP67 (IEC 60529)
Back protection class	IP52
Relative humidity:	Maximum 95%
Operating Temperature:	-30°C to +70°C (Front ring chrome)
CE Certification:	Yes
DNV GL Certification:	Yes
Vibration test:	25G - 6ms - 1Hz
Shock test:	100G - 11ms
Drop test:	1 Meter - 3x
Fire safety:	UL94-VD
