VDO ViewLine Adapter cable for open collector

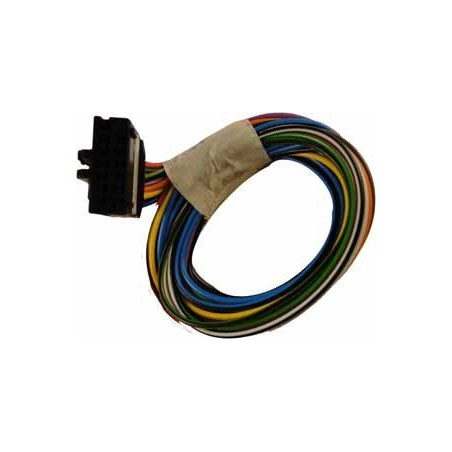

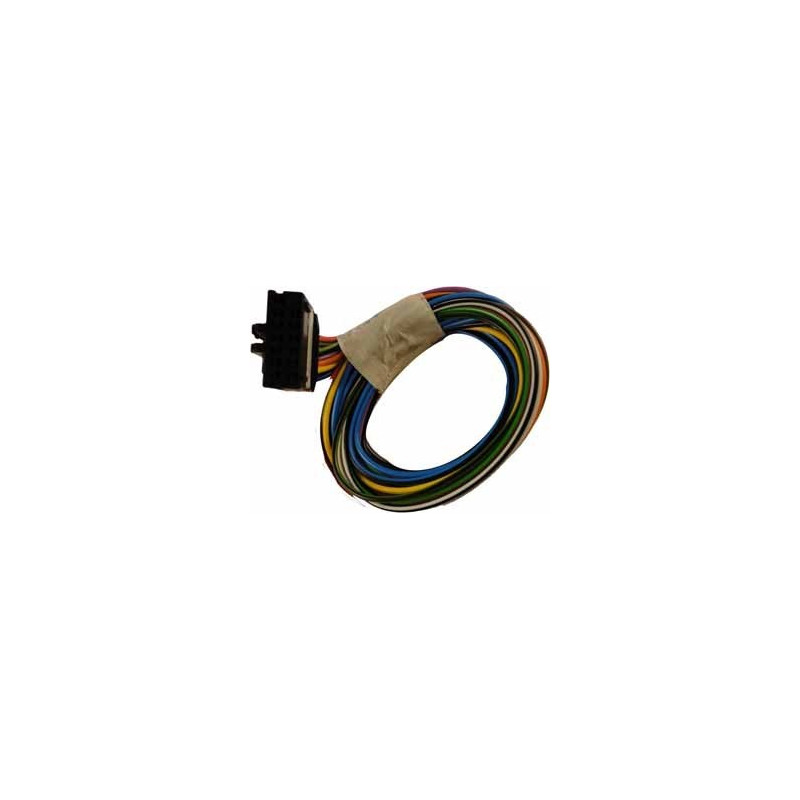

Description VDO ViewLine MQS Open collector Adapter Cable:

The VDO viewline instruments are equipped with an MQS connection connector. These connectors are made by Tyco or Hirschmann. They are widely used in automotive and industry because of their reliability and simplicity of use. Depending on the ViewLine model, an 8-pin or 14-pin MQS connector or a combination of both is used. The ViewLine instruments in Retail packaging are supplied complete with an MQS connection cable. The VDO ViewLine instruments in OEM packaging are delivered without connection cables. The wire length of the connection cable is approximately 50 cm. The ViewLine Ammeter is equipped with 2 extra long wires for connecting the external shunt. VDO addition to complete connection cables, we also supply separate connector blocks and connector pins to assemble a connection cable yourself. This can be done as a complete connector set or from separate parts.

VDO A2C59514546 Open Collector Adapter Cable Specifications:

Open collector adapter cable features:

Tyco Parts Order Numbers and Tools:

• Tyco No. 539635-1 Crimping Tool MQS Connectors
• Tyco No. 1355718-1 Single contacts 0.14 to 0.22 mm2 tin plated
• Tyco No. 963729-1 Single contacts 0.5 to 0.75 mm2 tin plated
• Tyco No. 539682-2 Fitting die for crimping tool
• Tyco No. 1355717-1 Strip 0.14 to 0.22 mm2 tin plated
• Tyco No. 928999-1 Strip 0.25 to 0.5 mm2 tin plated
• Tyco No. 963715-1 Strip 0.5 to 0.75 mm2 tin plated
