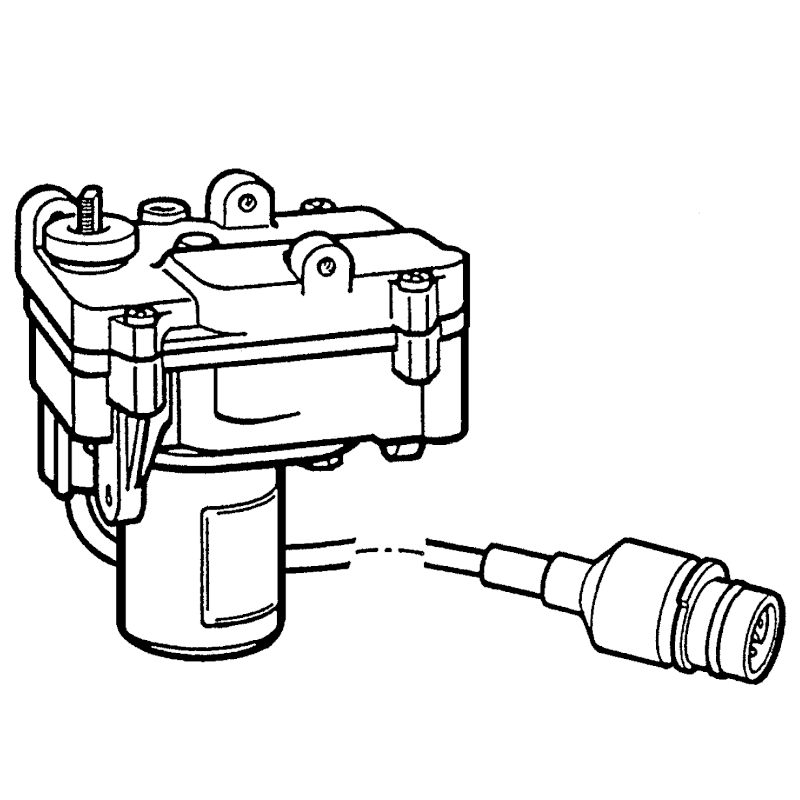

Continental VDO E-Gas II Electronic Actuator - 12 Volt - 7-Pin Connector
Part-number:
VDO 408-221-005-001C
- From the E-Gas I/II series.
- Electronic actuator E-Gas II
- Different actuators can be adjusted to the supply voltage and the desired response time.
- Gear/control with electric clutch, limit switch.
- 12 volts
Logistical information:
- HS Code: 84818059
- Weight: 1.38kg
Description
This Electric Actuator is designed by VDO to operate the diesel engine injection pump lever in conjunction with a VDO electronic controller. A pulse width modulated PWM) signal is used to send the Motor CC to permanent magnet.
Construction
Die-cast aluminum housing with PTFE membrane for pressure equalization. The three-stage transmission transmits the power from the DC motor to the output shaft via an electromagnetic coupling. A conductive plastic potentiometer provides feedback. Connection cable with plug.
408-221-005-001C
Data sheet
- Article status
- Expired product
Specific References
- MPN
- 408-221-004-002P
VDO 408-221-005-001C
- From the E-Gas I/II series.
- Electronic actuator E-Gas II
- Different actuators can be adjusted to the supply voltage and the desired response time.
- Gear/control with electric clutch, limit switch.
- 12 volts
