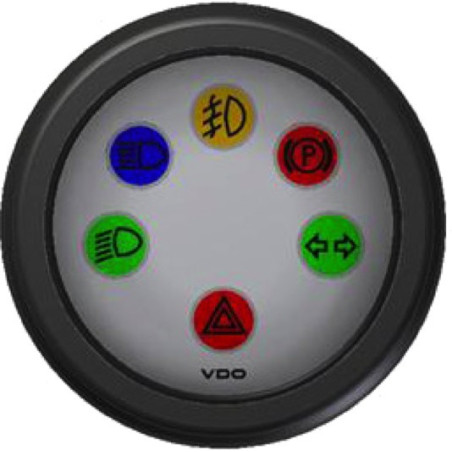

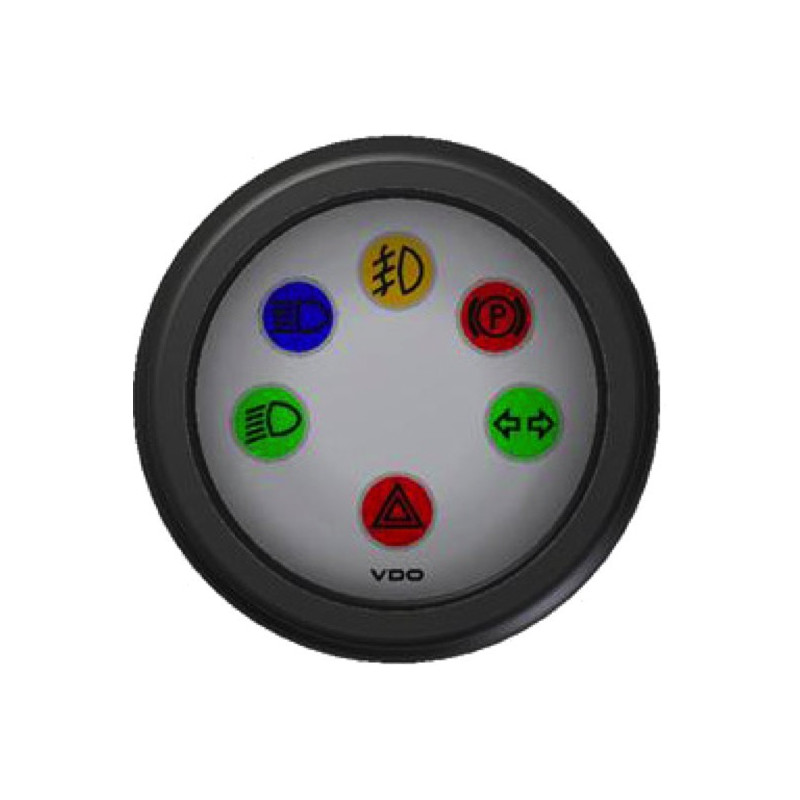

Veratron ViewLine Led Motor Controller Black 52mm

Part-number:

Veratron A2C59506160

  • Color: Black
  • Panel hole diameter: 52 mm - 2 1/16"
  • 6 x ISO Control Led
  • Front: Double glazing - Anti-fog
  • Retail Packaging 1 Motor Controller
Logistical information:
Expired productClick here for detailed information.
  • Weight: 0.50kg
Discontinued article
Replacement article on request

Functional description ViewLine Led Motor Control module:

Veratron ViewLine A2C59506160 Specifications:

Dimensions and assembly:

Built-in (Hole) diameter and Outside diameter: 52 mm - 2 1/16 Inch and 59.25 mm - 2 1/3 Inch
Installation depth: 50 mm
Panel thickness with spinlock nut: 0.5mm - 20mm
Panel thickness with bracket mounting: 2mm - 15mm (Optional)
Flushmount mounting: Optional kit A2C59510864

Functional:

Entrance: 6 N/O contacts with ground
Led WL1 Amber: ISO Symbol Fuel Level
LED WL2 Red: ISO Symbol Cooling Water Temperature
LED WL3 Red: ISO Symbol Battery voltage
LED WL4 Red: ISO Oil Pressure Symbol
LED WL5 Red: ISO Symbol Oil temperature
Led WL6 Amber: ISO symbol preheating
Suitable sensors: Veratron Pressure switches
Veratron Temperature switches
Universal N/O contacts
Connection: Hirschmann 8 pin MQS connector

Power supply:

Supply voltage: 8 to 16 Volts
Power consumption: 20mA per warning LED
Reverse polarity protection: No Veratron
Short-circuit resistance: No Veratron

Scale:

Scale color:BlackScale lighting:Amber LED backlight 605nm

Version:

Model: Veratron ViewLine Standard
Front glass type: Double - Anti-fog - Anti-glare
Standard front ring: Triangle chrome (Interchangeable)

Degree of protection and certification:

Front protection class: IP67 (IEC 60529)
Back protection class IP52
Relative humidity: Maximum 95%
Operating Temperature: -30°C to +70°C (Front ring chrome)
CE Certification: Yes
DNV GL Certification: Yes
Vibration test 25G - 6ms - 1Hz
Shock test: 100G - 11ms
Drop test: 1 Meter - 3x
Fire safety: UL94-VD

Retail packaging:

  • Veratron ViewLine Black A2C59506160 Motor Control Indicator
  • Cable with Hirschmann connector 8-pin
  • Front ring triangle chrome (Interchangeable)
  • Spinlock nut
  • Rubber gasket
  • QR code
  • Safety and Installation Instructions
  • Delivery excluding Veratron Pressure and Temperature switches
A2C59506160

Data sheet

Measuring range
6 x ISO symbol LED
Warning indication
Red LED Via plus and minus
Supply voltage
8 - 12 Volt DC
Packaging
VDO Instrument retail
Application
VDO Engine control
Signal analog
6 Contacts
Series
Veratron ViewLine Retail
Lens
Plastic double anti-fog
Color
Black
IP Class front
IP67 (IEC 60529)
Input
Make contacts
Installation size
52 mm - 2 1/16 Inch
Functionality
Led Motor Controller
Front ring interchangeable
Yes - Clip-on
Front ring model
Chrome triangle
Communication
Make contacts
Category
Control modules
Article status
Expired product

Specific References

MPN
A2C59506160
