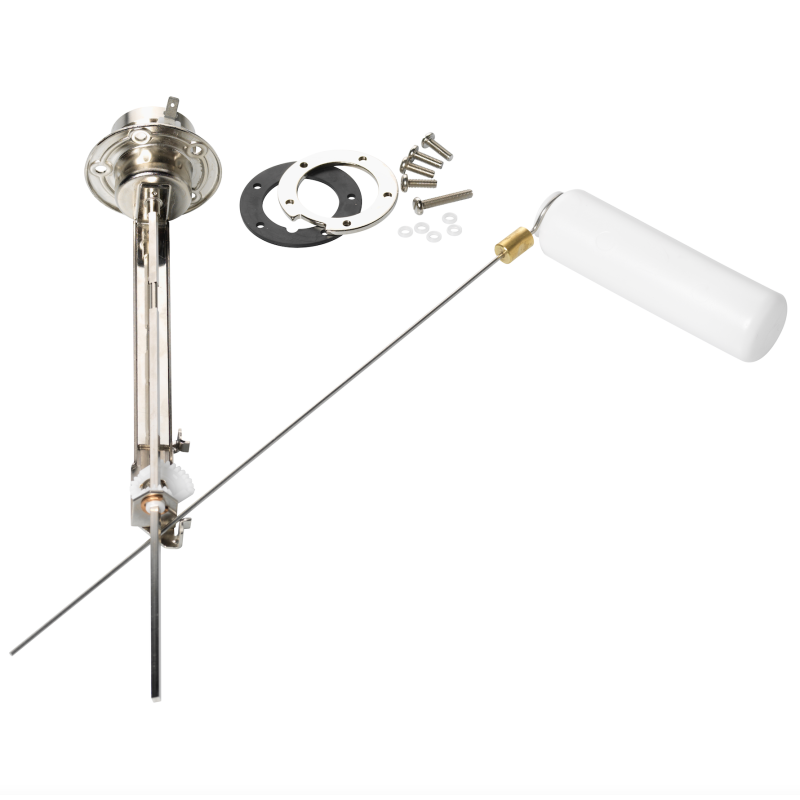

226-828-001-001K Veratron Drinking Water Siphon Float 3-180 Ohm
search
  • 226-828-001-001K Veratron Drinking Water Siphon Float 3-180 Ohm

Veratron Drinking Water Siphon Float 3-180 Ohm

€447.70 (tax incl.)

€370.00 (VAT Excl.)

Part-number:

Veratron 226-828-001-001K

  • Application: Drinking water level
  • Tank depth: 200 mm to 600 mm
  • Measuring System: Siphon Float
  • Resistance empty-full: 3.0 - 180.0 Ohm
  • Retail packaging 1 Drinking water sensor
Logistical information:
Expired productClick here for detailed information.
  • HS Code: 90269000
  • Ean Code: 7640178725027
  • Weight: 1.42kg
Quantity

Technical description siphon float drinking water level sensor:

VDO 226 828 001 001K Specifications:

Mechanical properties:

Tank depth: 200 mm - 600 mm
Mounting flange: 54 mm
Tank types: Plastic - Stainless Steel - Aluminum
Operating Temperature: -30 °C to +70 °C
Liquids: Drinking water

Electrical properties:

Supply voltage: 6 - 24 V DC
Resistance value empty: 3 Ohms
Resistance value full: 180 Ohms
Warning contact: None
Warning function: Optional VDO A2C59510886 Makepoint Switch

Datasheets and tables:

VDO 2014 EN Full Program Catalog: Page 205

Retail packaging:

  • VDO 226 828 001 001K Drinking Water Level Sensor
  • VDO Sensors are - unless otherwise stated - supplied without connection material
Veratron VDO
226-828-001-001K

Data sheet

Measuring range
Drinking water siphon sensors
Warning contact
None
Supply voltage
6 - 24 Volt DC
Adjustable sensor
Yes
Packaging
VDO Sensor retail packaging
Application
VDO Level measurement
Tank depth range
200 mm to 600 mm
Signal analog
Empty - Full : 3 - 180 Ohm
Sensor signal
Minus in mass
Sensor material
Stainless steel
Installation size
54mm SAE 5-Hole Flange
Functionality
Drinking water level
Connector type
Flat plug 6.3 x 0.8 mm
Communication
Analogue
Category
Water level sensors
Article status
Expired product
Alternate format
828/1/1

Specific References

EAN13
7640178725027
MPN
226-828-001-001K
