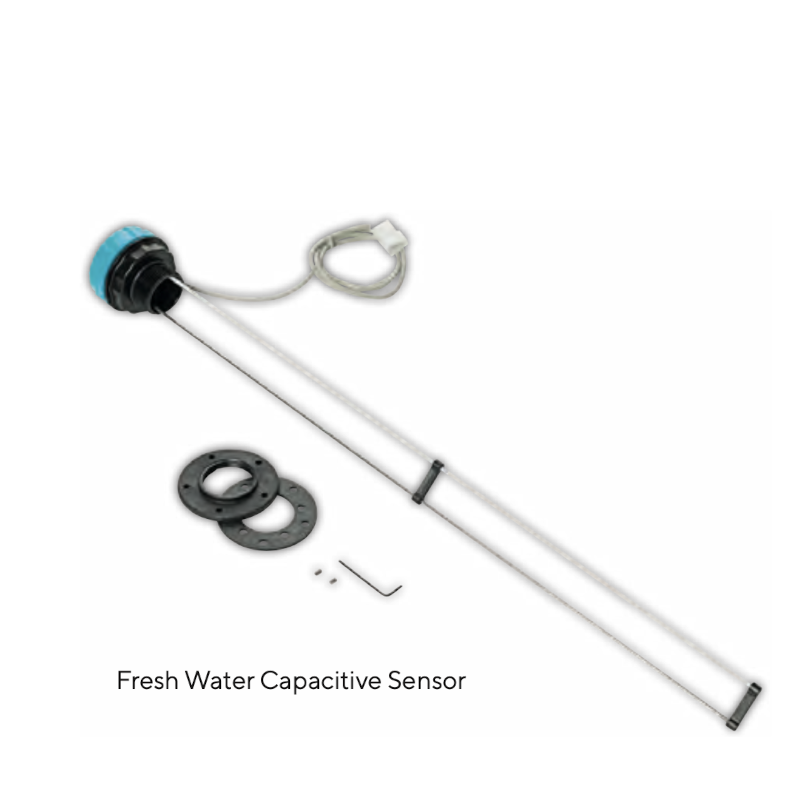

VDO OceanLine Drinking Water Sensor 4-20mA Tank Depth 80-600mm
Part-number:
VDO OceanLine N02-240-802
- Application: Drinking water level
- Tank depth: 80 mm to 600 mm
- Measuring System: Capacitive
- Output signal empty-full: 4 - 20 mA
- Retail packaging 1 Drinking water sensor
Logistical information:
- Weight: 0.67kg
Technical description capacitive drinking water level sensor:
The use of VDO tank sensors (capacitive) protects you from surprises. The VDO 4-20 mA sensor N02-240-802 is designed for use in drinking water tanks and guarantees reliable measurement. Absolutely wear-free because the sensor has no moving parts. The sensor can be shortened depending on the tank depth. This sensor is not suitable for aluminum tanks. It is also recommended to use the sensor only for drinking water tanks. Delivery includes mounting flange and gasket. Applicable for 12 Volt and 24 Volt systems and suitable for all instruments with a 4-20mA input.
VDO N02 240 802 specifications:
Mechanical properties:
| Tank depth: | 80 mm - 600 mm |
| Outer diameter sensor surface-mounted part: | 71 mm |
| Sensor net hole size: | 42 mm |
| Mounting flange: | 54 mm |
| Sensor height above tank: | 32 mm |
| Tank types: | Plastic and stainless steel - no aluminum |
| Operating Temperature: | -30 °C to +70 °C |
| Liquids: | Drinking water |
Electrical properties:
| Supply voltage: | 6 - 24 V DC |
| Output signal: | 4 - 20 mA |
| Warning contact: | None |
Retail packaging:
- VDO N02 240 801 Drinking Water Level Sensor
- Sealant N05-016-930
- VDO Sensors are supplied - unless otherwise stated - without connection material
N02-240-802
Data sheet
- Measuring range
- Drinking water capacitive sensors
- Warning contact
- None
- Supply voltage
- 6 - 24 Volt DC
- Packaging
- VDO Sensor retail packaging
- Application
- VDO Level measurement
- Tank depth range
- Adjustable: 80 mm - 600 mm
- Signal analog
- 4 - 20 mA
- Sensor type
- Drinking water capacitive sensors
- Sensor signal
- Isolated from mass
- Installation size
- 54mm SAE 5-Hole Flange
- Functionality
- Water level
- Connector type
- Flat plug 6.3 x 0.8 mm
- Communication
- Analogue
- Category
- Water level sensors
- Article status
- Expired product
Specific References
- MPN
- N02-240-802
