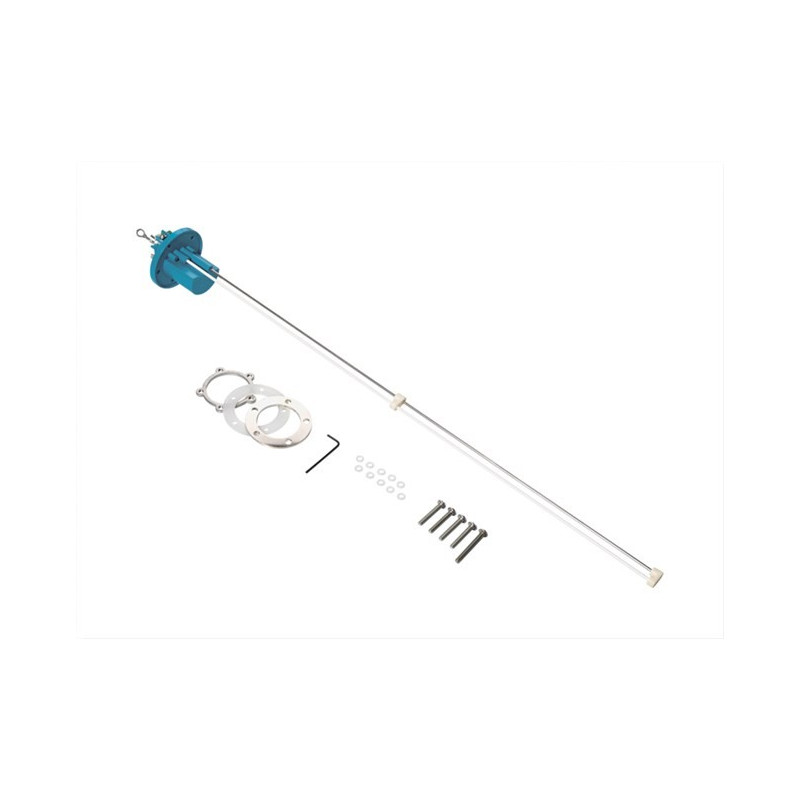

Veratron Drinking Water Sensor 4-20mA – Tank Depth 80-600mm
€195.15
(tax incl.)
€161.28 (VAT Excl.)
Part-number:
Veratron N02-240-402
- Application: Drinking water level
- Tank depth: 80 mm to 600 mm
- Measuring System: Capacitive
- Output signal empty-full: 4 - 20 mA
- Retail packaging 1 Drinking water sensor
Logistical information:
- Ean Code: 7640178725065
- Weight: 1.50kg
Technical description capacitive drinking water level sensor:
The use of VDO tank sensors (capacitive) in combination with a ViewLine drinking water level meter protects you from surprises. The VDO 4-20 mA sensors N02-240-402 - N02-240-404 - N02-240-406 are designed for use in drinking water tanks and guarantee reliable measurement. Absolutely wear-free because the sensors have no moving parts. The sensors can be shortened depending on the tank depth and are available in 3 different base lengths. This series is not suitable for aluminum tanks. It is also recommended to use the sensors only for drinking water tanks. Delivery includes mounting flange and gasket. Applicable for 12 Volt and 24 Volt systems and suitable for all instruments with a 4-20mA input.
VDO N02 240 402 specifications:
Mechanical properties:
| Tank depth: | 80 mm - 600 mm |
| Outer diameter sensor surface-mounted part: | 71 mm |
| Sensor net hole size: | 42 mm |
| Mounting flange: | 54 mm |
| Sensor height above tank: | 32 mm |
| Tank types: | Plastic and stainless steel - no aluminum |
| Operating Temperature: | -30 °C to +70 °C |
| Liquids: | Drinking water |
Electrical properties:
| Supply voltage: | 6 - 24 V DC |
| Output signal: | 4 - 20 mA |
| Warning contact: | None |
Datasheets and tables:
| VDO 2014 EN Full Program Catalog: | Page 205 |
Retail packaging:
- VDO N02 240 401 (N02-240-401) Drinking Water Level Sensor
- Sealing kit N05-001-370
- VDO Sensors are supplied - unless otherwise stated - without connection material
N02-240-402
Data sheet
- Measuring range
- Drinking water capacitive sensors
- Warning contact
- None
- Supply voltage
- 6 - 24 Volt DC
- Packaging
- VDO Sensor retail packaging
- Application
- VDO Level measurement
- Tank depth range
- Adjustable: 80 mm - 600 mm
- Signal analog
- 4 - 20 mA
- Sensor type
- Drinking water capacitive sensors
- Sensor signal
- Isolated from mass
- Installation size
- 54mm SAE 5-Hole Flange
- Functionality
- Water level
- Connector type
- Flat plug 6.3 x 0.8 mm
- Communication
- Analogue
- Category
- Water level sensors
- Article status
- Available to order
Specific References
- EAN13
- 7640178725065
- MPN
- N02-240-402
Veratron N02-240-402
- Application: Drinking water level
- Tank depth: 80 mm to 600 mm
- Measuring System: Capacitive
- Output signal empty-full: 4 - 20 mA
- Retail packaging 1 Drinking water sensor
