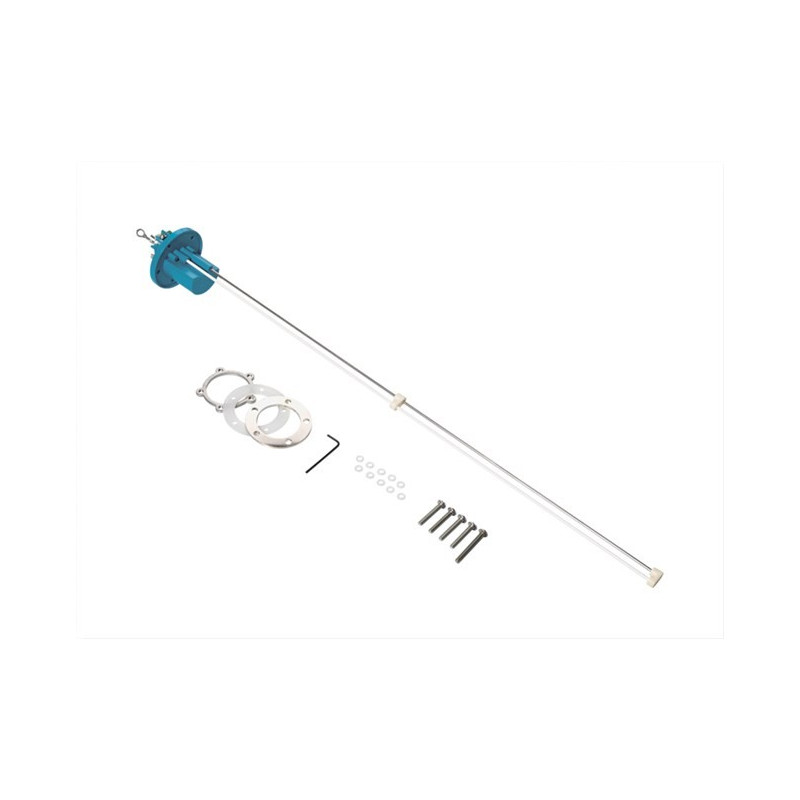

Veratron Drinking Water Sensor 4-20 mA – Tank Depth 1,200 -1,500mm

€576.35 (tax incl.)

€476.32 (VAT Excl.)

Part-number:

Veratron N02-240-406

  • Application: Drinking water level
  • Tank depth: 1200 mm to 1500 mm
  • Measuring System: Capacitive
  • Output signal empty-full: 4 - 20 mA
  • Retail packaging 1 Drinking water sensor
Logistical information:
Available to orderClick here for detailed information.
  • HS Code: 90269000
  • Ean Code: 7640178725089
  • Weight: 4.50kg
Quantity

Technical description capacitive drinking water level sensor:

The use of VDO tank sensors (capacitive) in combination with a ViewLine drinking water level meter protects you from surprises. The VDO 4-20 mA sensors N02-240-402 - N02-240-404 - N02-240-406 are designed for use in drinking water tanks and guarantee reliable measurement. Absolutely wear-free because the sensors have no moving parts. The sensors can be shortened depending on the tank depth and are available in 3 different base lengths. This series is not suitable for aluminum tanks. It is also recommended to use the sensors only for drinking water tanks. Delivery includes mounting flange and gasket. Applicable for 12 Volt and 24 Volt systems and suitable for all instruments with a 4-20mA input.

VDO N02 240 406 specifications:

Mechanical properties:

Tank depth: 1,200 mm - 1,500 mm
Outer diameter sensor surface-mounted part: 71 mm
Sensor net hole size: 42 mm
Mounting flange: 54 mm
Sensor height above tank: 32 mm
Tank types: Plastic and stainless steel - no aluminum
Operating Temperature: -30 °C to +70 °C
Liquids: Drinking water

Electrical properties:

Supply voltage: 6 - 24 V DC
Output signal: 4 - 20 mA
Warning contact: None

Datasheets and tables:

VDO 2014 EN Full Program Catalog: Page 205
Type of connection:

Retail packaging:

  • VDO N02 240 405 Drinking Water Level Sensor
  • VDO Sensors are supplied - unless otherwise stated - without connection material
Veratron VDO
N02-240-406

Data sheet

Measuring range
Drinking water capacitive sensors
Warning contact
None
Supply voltage
6 - 24 Volt DC
Adjustable sensor
Yes
Packaging
VDO Sensor retail packaging
Application
VDO Level measurement
Tank depth range
900 mm to 1,500 mm
Signal analog
4 - 20 mA
Sensor type
Level sensors capacitive
Sensor signal
Isolated from mass
Sensor material
Stainless steel
Installation size
54mm SAE 5-Hole Flange
Functionality
Drinking water level
Connector type
Flat plug 6.3 x 0.8 mm
Communication
Analogue
Category
Water level sensors
Article status
Available to order

Specific References

EAN13
7640178725089
MPN
N02-240-406
