VDO DS Pressure Sensor 0-28 Bar - 1/8-27 NPTF

€81.42 (tax incl.)

€67.29 (VAT Excl.)

Part-number:
VDO 362-081-002-004C
  • Pressure range: 0 to 28 Bar
  • Thread: 1/8 - 27 NPTF
  • Sender resistance range: 5 - 90 Ohm Dual
  • Sensor signal: 2-pole insulated return
  • No warning contact
Logistical information:
Available to orderClick here for detailed information.
  • HS Code: 90269000
  • Ean Code: 4103590691613
  • Weight: 0.11kg
Quantity

Description transmission oil pressure sender:

VDO 362 081 002 004C Full technical specifications:

Mechanical features:

Pressure measuring range:0 - 28 Bar
0 - 406 PSI
0 - 2800 KPa
Maximum pressure:50 Bar during 2 seconds

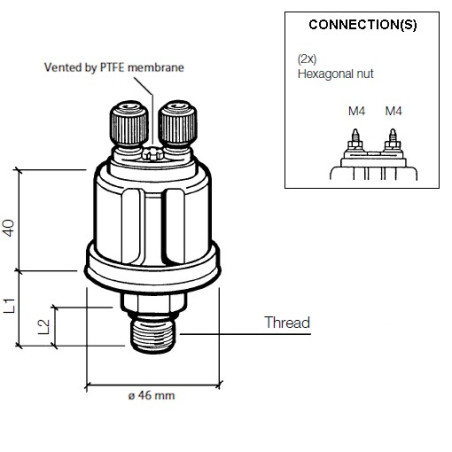

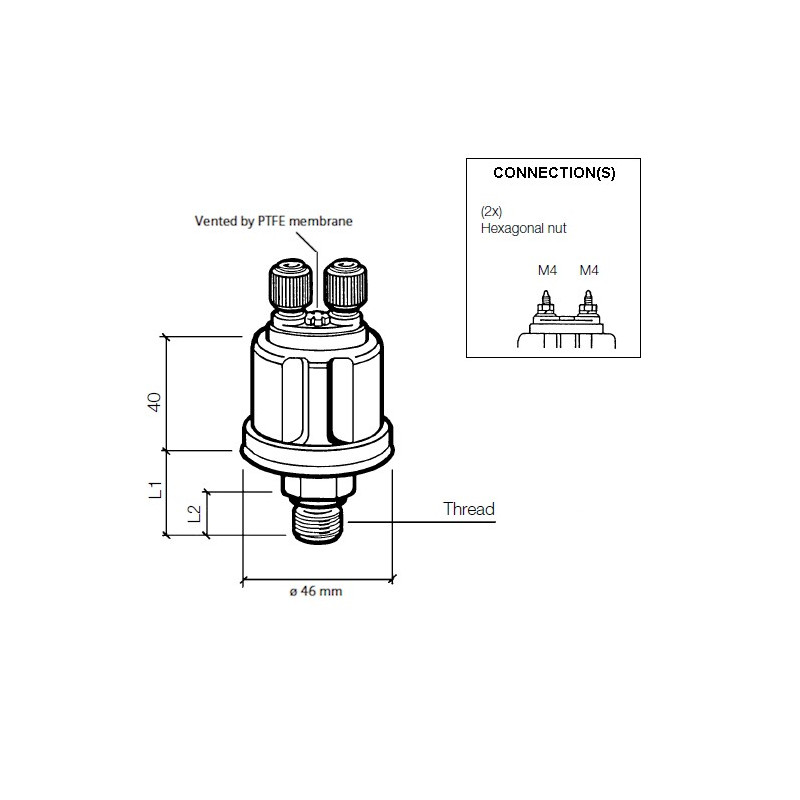

Thread:1/8 - 27 NPTF
Length thread + nut (L1):19.5 mm
Thread length (L2):11 mm
Torque:30 Nm
Operating temperature:-25 °C to +100 °C
Pressure medium:Oil - Fuel - Air

Electrical features:

Operating voltage:6 - 24 V DC
Resistor range:5 - 90 Ohm
Pressure sensor signal:Dual-Pole insulated return
Warning contact:None
Optional warning contact:VDO A2C59510886 Makepoint Switch
Special application:For 2 gauges Flybridge
Pressure sender connector:M4 Hexagonal nut

Datasheets and Tables:

VDO 2014 Vehicle Electronics Catalog:Page 126 - 127
Type of connection:D
VDO En Du Pressure senders Tables:VDO Datasheet table 7

Retail package:

  • VDO 362 081 002 004C Pressure sender
  • VDO Sensors are - unless otherwise noted - delivered without connecting material
VDO Continental I
362-081-002-004C

Data sheet

Pressure Measurement Range
0 - 28 Bar
Warning contact
None
Supply voltage
6 - 24 Volt DC
Packaging
VDO Sensor retail packaging
Application
VDO Engine control
Signal analog
5 - 90 Ohm Dual
Sensor signal
Isolated from mass
Thread
1/8" - 27 NPTF Male
Country of origin
Germany
Functionality
Transmission oil pressure
Connector type
M4 Hex Nut
Communication
Analogue
Category
Dual station pressure sensors
Article status
Available to order

Specific References

EAN13
4103590691613
MPN
362-081-002-004C
