362-081-003-001C VDO (DS) Pressure sensor 0-5 Bar - 1/8-27 NPTF
search
  • 362-081-003-001C VDO (DS) Pressure sensor 0-5 Bar - 1/8-27 NPTF
  • 362-081-003-001C VDO (DS) Pressure sensor 0-5 Bar - 1/8-27 NPTF
  • 362-081-003-001C VDO (DS) Pressure sensor 0-5 Bar - 1/8-27 NPTF

VDO (DS) Pressure sensor 0-5 Bar - 1/8-27 NPTF

€79.27 (tax incl.)

€65.51 (VAT Excl.)

Part-number:

VDO 362-081-003-001C

  • Pressure measuring range: 0 - 5 Bar
  • Thread: 1/8 - 27 NPTF
  • Resistance value: 5 - 90 Ohm
  • Output: Min to mass
  • No warning contact
Logistical information:
Available to orderClick here for detailed information.
  • HS Code: 90269000
  • Ean Code: 4103590949813
  • Weight: 0.14kg
Quantity

Technical description engine oil pressure sensor:

VDO 362 081 003 001C Specifications:

Mechanical properties:

Pressure measurement range: 0 - 5 Bar
0 - 72.5 PSI
0 - 500 KPa
Maximum pressure: 30 Bar for 2 seconds

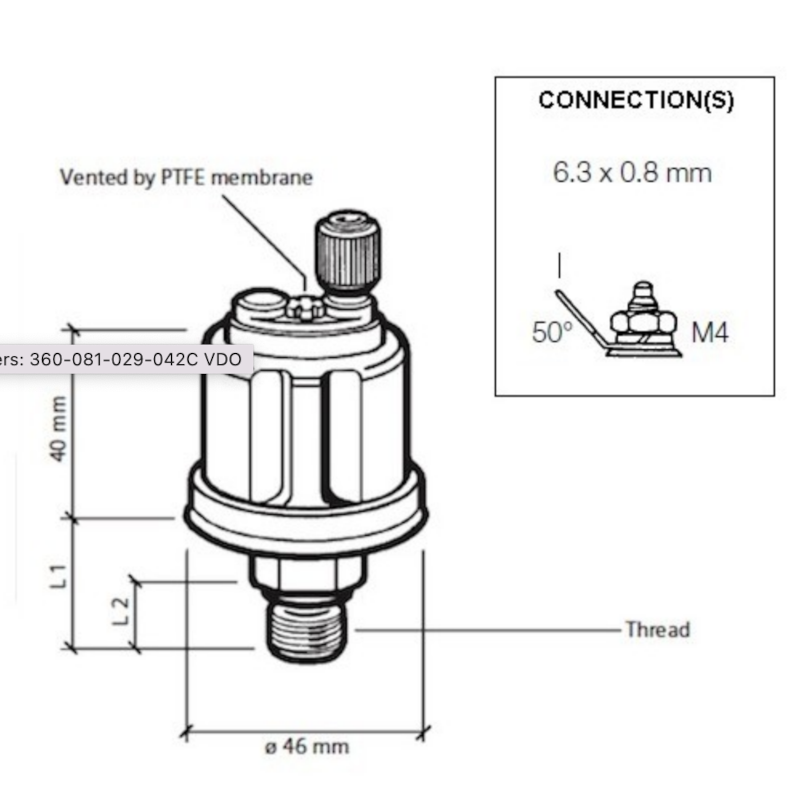

Thread: 1/8 - 27 NPTF
Thread + nut length (L1): 19.5 mm
Thread length (L2): 11 mm
Torque: 30 Nm
Operating Temperature: -25 °C to +100 °C
Pressure medium: Oil - petroleum - diesel - gasoline - air

Electrical properties:

Supply voltage: 6 - 24 V DC
Resistance value: 5 - 90 Ohm
Pressure sensor output signal: 2-pole insulated from ground
Warning contact: None
Warning function: Optional VDO A2C59510886 Makepoint Switch
Pressure sensor connection: M4 Plastic knurled nut

Datasheets and tables:

VDO 2014 Vehicle Electronics Catalog: Page 126 - 127
Type of connection: Model: A
VDO En Du Pressure Sensors Tables: VDO Datasheet Table 3
VDO Pressure sensors are used in, among other things: Automotive industry - Shipbuilding - Mechanical engineering - Agriculture and road construction Vehicles

Retail packaging:

  • VDO 362 081 003 001C Pressure Sensor
  • VDO Sensors are - unless otherwise stated - supplied without connection material
VDO Continental I
362-081-003-001C

Data sheet

Pressure Measurement Range
0 - 5 Bar
Warning contact
None
Supply voltage
6 - 24 Volt DC
Packaging
VDO Sensor retail packaging
Application
VDO Engine control
Signal analog
5 - 90 Ohm Dual
Sensor signal
Minus in mass
Sensor connector
M4 Flat plug 6.3 x 0.8 mm
Thread
1/8" - 27 NPTF Male
Country of origin
Germany
Functionality
Engine oil pressure
Connector type
Flat plug 6.3 x 0.8 mm
Communication
Analogue
Category
Dual station pressure sensors
Article status
Available to order
Alternate format
362 081 003 001C
362/81/3/1C

Specific References

EAN13
4103590949813
MPN
362-081-003-001C
