  • Fresh Water Sensors 3-180 Ohm: 226-828-001-001K VDO

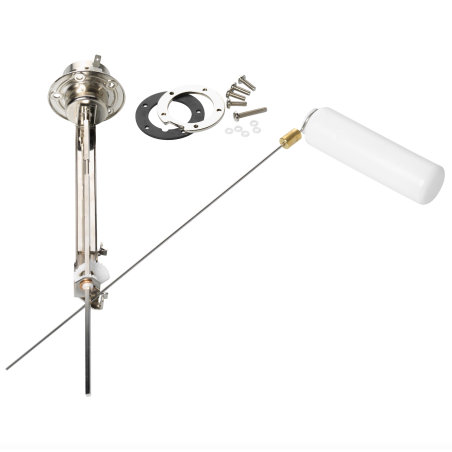

Veratron Fresh water lever arm sender 3-180 Ohm

€447.70 (tax incl.)

€370.00 (VAT Excl.)

Part-number:

Veratron 226-828-001-001K

  • Application: Only fresh water
  • Tank depth: 200 mm to 600 mm
  • Sensor system: Lever arm sender
  • Resistance empty-full: 3.0 - 180.0 Ohm
  • Retail package 1 Fresh water sensor
Logistical information:
  • HS Code: 90269000
  • Ean Code: 7640178725027
  • Weight: 1.42kg
Quantity

Description lever-arm fresh water sensor:

VDO 226 828 001 001K Full technical specifications:

Mechanical features:

Tank depth: 200 mm - 600 mm
Mounting flange: 54 mm
Tank type: Plastic - Stainless steel - Aluminium
Operating temperature: -30 °C to +70 °C
Liquids: Fresh water

Electrical features:

Operating voltage: 6 - 24 V DC
Resistance empty: 3 Ohm
Resistance full: 180 Ohm
Warning contact: None

Datasheets and Tables:

VDO 2014 EN Full Program Catalog: Page 205

Retail package:

  • VDO 226 828 001 001K Fresh water lever arm sender
  • VDO Sensors are - unless otherwise noted - delivered without connecting material
Veratron VDO
226-828-001-001K

Data sheet

Measurement range
Drinkwater hevelsensoren
Warning contact
None
Operating voltage
6 - 24 Volt DC
Adjustable sensor
Ja
Packaging
VDO Sensor retail package
Application
VDO Level measurement
Tank depth range
200 mm to 600 mm
Signal analogue
Empty - Full : 3 - 180 Ohm
Sensor signal
Common ground
Sensor material
Stainless Steel
Installation dimension
54 mm SAE 5-Hole flange
Functionality
Fresh water level
Connector type
AMP Blade 6.3 x 0.8 mm
Communication
Analog
Category
Water level sensors
Article status
