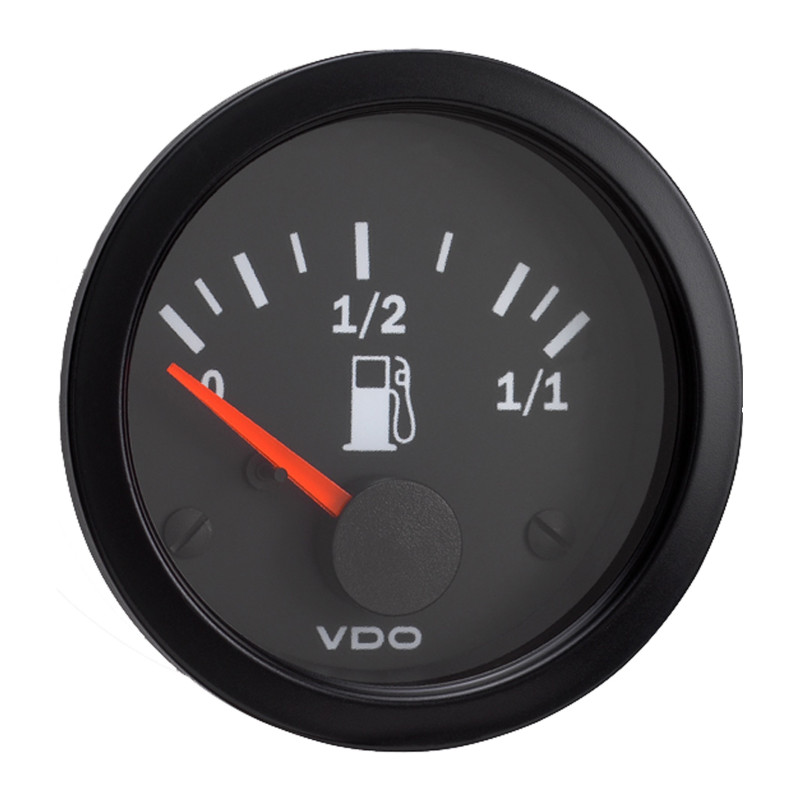

10 Pieces VDO Cockpit Vision Fuel Level 3-180 Ohm 52mm 24V

Part-number:

VDO 301-020-001C

  • Color: Black
  • Panel hole diameter: 52 mm - 2 1/16"
  • Measuring range: 0 - 1/2 - 1/1
  • Supply voltage: 24 Volt DC
  • 10 Pieces OEM Fuel Gauges
Logistical information:
Expired productClick here for detailed information.
  • HS Code: 90269000
  • Weight: 0.50kg
Discontinued article
Replacement article on request

Functional description Cockpit Vision Fuel Level Gauge:

VDO Cockpit Vision 301 020 001C Specifications:

Dimensions and assembly:

Built-in (Hole) diameter and Outside diameter: 52 mm - 2 1/16 Inch and 59.25 mm - 2 1/3 Inch
Installation depth: 61 mm
Panel thickness with spinlock nut: 0.5 mm - 23 mm
Panel thickness with bracket mounting: Not available
Flushmount mounting: None

Functional:

Fuel level measurement range: 0 - 1/2 - 1/1
Fuel level gauge input signal: VDO Siphon float 3 - 180 Ohm EU
Measurement accuracy: No statement VDO available
Connection: Flat plug 6.3 x 0.8mm (3x)
Connection scale lighting: Flat plug 6.3 x 0.8mm (2x)

Power supply:

Supply voltage: 21.5 - 30 Volt DC
Power consumption without shell lighting: < 86 mA
Reverse polarity protection: Yes
Short-circuit resistance: No statement VDO

Scale & pointer:

Graduation: 90°
Scale color: Black
Scale lighting: Backlight 12V - 2 Watt White - Green - Red and 24V - 2 Watt - Optional
Pointer: Red backlight
Alarm indication: None
Programmable: No

Version:

Model: Cockpit Vision
Front glass type: Single - Anti-Glare
Standard front ring: Triangle black (Screw ring)

Degree of protection and certification:

Front protection class: IP64 (DIN 40050) - Ozone resistant - UV resistant
Back protection class IP42 (DIN 40050)
Relative humidity: No Statement VDO Available
Operating Temperature: -30°C to +85°C
CE Certification: Yes
DNV GL Certification: No statement VDO available
Vibration test 8 hours: Max: 1G - 25Hz - 2000Hz
EMC Test: According to EN 13309 and ISO 13677
Nominal position: NL 0 to NL 90 - DIN 16257
Housing: Plastic Fire Retardant

OEM (10 pcs) packing:

  • VDO Cockpit Vision 301 020 001C Fuel Level Gauge
  • Order connection material separately
  • Spinlock nut
301-020-001C

Data sheet

Level Measurement Range
0 - 1/2 - 1/1
Warning indication
None
Supply voltage
21.5 - 30 Volt DC
Packaging
VDO Instruments OEM bulk
Application
VDO Level measurement
Signal analog
Empty - Full : 3 - 180 Ohm
Series
VDO Cockpit Vision
Lens
Plastic single anti-reflective
Color
Black
IP Class front
IP64 (DIN 40050)
Installation size
52 mm - 2 1/16 Inch
Functionality
EU Siphon Floats 3-180 Ohm
Front ring interchangeable
Yes - Special tools required
Front ring model
Black triangle
Communication
Analogue
Category
Fuel level gauges
Article status
Expired product

Specific References

MPN
301-020-001C
