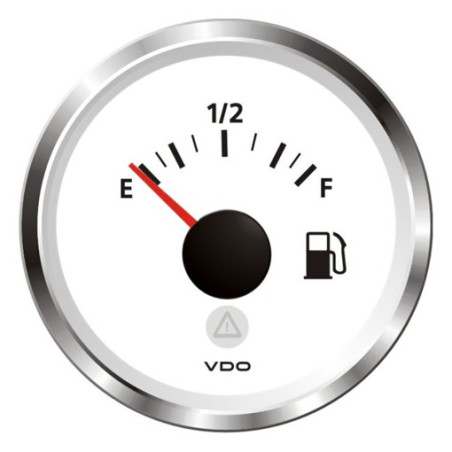

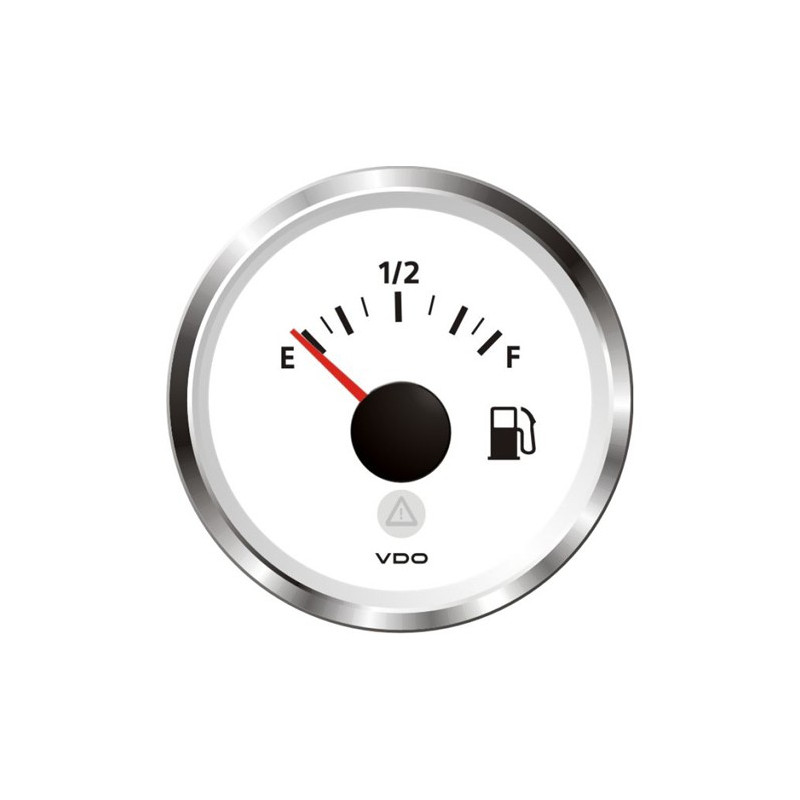

Veratron ViewLine Fuel Level 0-90 Ohm White 52mm

Part-number:

Veratron A2C59514187

  • Color: White
  • Panel hole diameter: 52 mm - 2 1/16"
  • Measuring range: E -1/2 - F = 0 - 90 Ohm
  • Front: Double glazing - Anti-fog
  • Retail Packaging 1 Fuel Gauge
Logistical information:
Expired productClick here for detailed information.
  • Weight: 0.50kg
Discontinued article
Replacement article on request

Functional description ViewLine Fuel level gauge:

Veratron ViewLine A2C59514187 Specifications:

Dimensions and assembly:

Built-in (Hole) diameter and Outside diameter: 52 mm - 2 1/16 Inch and 59.25 mm - 2 1/3 Inch
Installation depth: 50 mm
Panel thickness with spinlock nut: 0.5mm - 20mm
Panel thickness with bracket mounting: 2mm - 15mm (Optional)
Flushmount mounting: Optional kit A2C59510864

Functional:

Fuel level measurement range: E -1/2 - F
Resistor empty: 0 Ohm
Resistance full: 90 Ohm
Fuel level input signal: Veratron Lever Float 0 - 90 Ohm VS
Measurement accuracy: < 3.6° of the full scale
Connection Hirschmann 8 pin MQS connector

Power supply:

Supply voltage: 8 - 32 V DC
Power consumption: < 140 mA including warning LED
Reverse polarity protection: Yes - 5 minutes
Short-circuit resistance: Yes - 1 minute

Scale & pointer:

Graduation: 90°
Scale color: White
Scale lighting: Amber LED backlight 605nm
Pointer: Red with LED lighting
Alarm LED: Red (632nm)
Programming: Veratron USB software kit

Version:

Model: Veratron ViewLine Marine
Front glass type: Double - Anti-fog - Anti-glare
Standard front ring: Triangle chrome (Interchangeable)

Degree of protection and certification:

Front protection class: IP67 (IEC 60529)
Back protection class IP52
Relative humidity: Maximum 95%
Operating Temperature: -30°C to +70°C (Front ring chrome)
CE Certification: Yes
DNV GL Certification: Yes
Vibration test: 25G - 6ms - 1Hz
Shock test: 100G - 11ms
Drop test: 1 Meter - 3x
Fire safety: UL94-VD

Retail packaging:

  • Veratron ViewLine White A2C59514187 Fuel Level Gauge
  • Cable with Hirschmann connector 8-pin
  • Front ring triangular chrome (interchangeable)
  • Spinlock nut
  • Rubber gasket
  • QR code
  • Safety and Installation Instructions
  • Delivery excluding Veratron fuel sensor
A2C59514187

Data sheet

Level Measurement Range
E - 1/2 - F
Warning indication
Red LED Via plus and minus
Supply voltage
8 - 32 Volt DC
Packaging
VDO Instrument retail
Application
VDO Level measurement
Signal analog
Empty - Full : 0 - 90 Ohm
Series
Veratron ViewLine Retail
Lens
Plastic double anti-fog
Color
White
IP Class front
IP67 (IEC 60529)
Input
Analogue
Installation size
52 mm - 2 1/16 Inch
Functionality
EU Siphon Floats 2-90 Ohm
Front ring interchangeable
Yes - Clip-on
Front ring model
Chrome triangle
Communication
Analogue
Category
Fuel level gauges
Article status
Expired product

Specific References

MPN
A2C59514187
