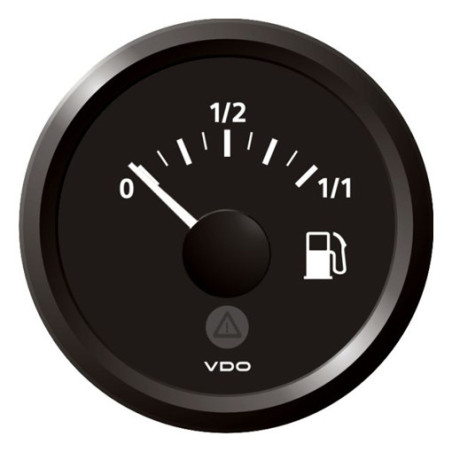

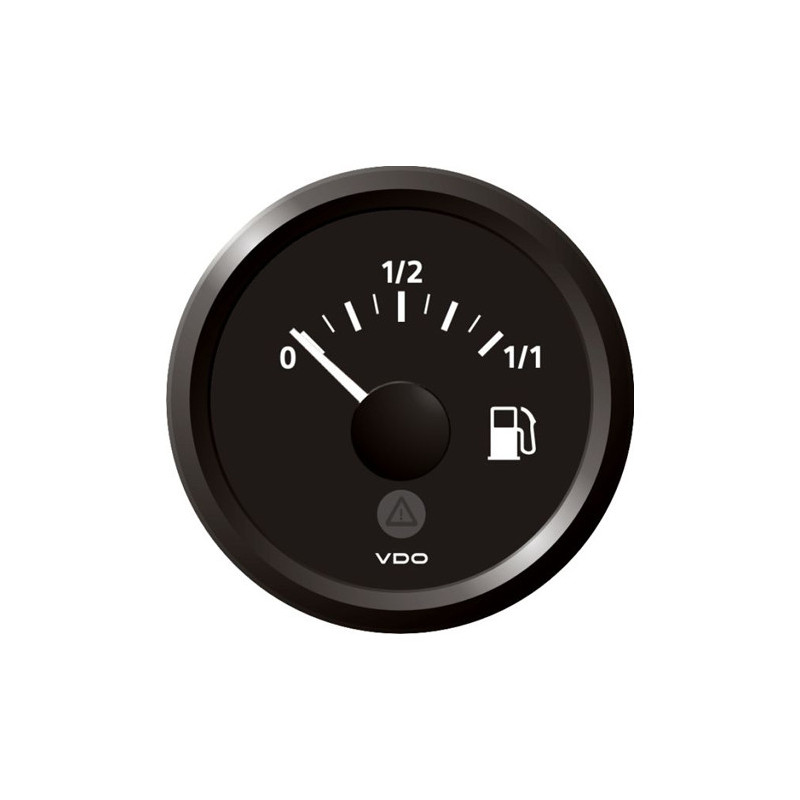

Veratron ViewLine Fuel Level 90-0.5 Ohm* Black 52mm
Part-number:
Veratron A2C59514081
- Colour: Black
- Panel hole diameter: 52 mm - 2 1/16"
- Range: 0 - 1/2 - 1/1 = 90 - 0 Ohm
- Lens: Dual - Anti-Fog
- Retail package 1 Fuel level gauge
Logistical information:
- HS Code: 90261000
- Ean Code: 7640178724952
- Weight: 0.45kg
Description ViewLine Fuel level gauge:
Veratron ViewLine A2C59514081 Full technical specifications:
Sizes and mounting:
| Installation (Hole) diameter and Outside diameter: | 52 mm - 2 1/16 Inch and 59 mm - 2 1/3 Inch |
| Installation depth: | 50 mm |
| Locking height with Spinlock nut: | 0.5 mm - 20 mm |
| Locking height with bracket: | 2 mm - 15 mm (Optional) |
| Flushmount: | Optional kit A2C59510864 |
Functionality:
| Fuel level measurement range: | 0 - 1/2 - 1/1 |
| Resistance empty: | 90 Ohm |
| Resistance full: | 0 Ohm |
| Sensor signal input fuel level gauge: | Veratron Dip pipe sender 90 - 0.5 Ohm EU Adjustable |
| Accuracy: | < 3.6 angular degrees |
| Connection: | Hirschmann 8 pins MQS connector |
Power supply:
| Operating voltage: | 8 - 32 V DC |
| Current consumption: | < 140 mA including warning LED |
| Reverse polarity protection: | Yes - 5 Minutes |
| Short circuit protection: | Yes - 1 Minute |
Dial & Pointer:
| Deflection angle: | 90° |
| Dial colour: | Black |
| Dial Illumination: | Amber LED backlight 605nm |
| Pointer: | White LED backlight |
| Warning LED: | Red (632nm) |
| Programming: | Veratron USB software kit |
Design:
| Model: | Veratron ViewLine Marine |
| Lens: | Dual - Anti-glare - Anti-Fog |
| Standard bezel: | Triangular black (Interchangeable) |
Protection and standards:
| Front protection class: | IP67 (IEC 60529) |
| Rear protection class: | IP52 |
| Relative humidity: | Maximum 95% |
| Operating temperature: | -30°C to +80°C (Plastic bezel) |
| CE standard: | Yes |
| DNV GL Certification: | Yes |
| Mechanical shock continuous: | 25G - 6ms - 1Hz |
| Mechanical single shock: | 100G - 11ms |
| Free fall test: | 1 Meter - 3x |
| Housing flame retarding: | UL94-VD |
Retail package:
- Veratron ViewLine Black A2C53412986 Fuel level gauge
- Spinlock nut
- Bezel triangular black (Interchangeable)
- Adapter cable with 8 pole MQS connector
- Rubber seal
- QR code
- Safety instructions and installation manual
- Veratron Fuel level sender not included
A2C59514081
Data sheet
- Level Measurement range
- 0 - 1/2 - 1/1
- Warning light
- Red LED Via plus and min
- Operating voltage
- 8 - 32 Volt DC
- Packaging
- VDO Instrument retail
- Application
- VDO Level measurement
- Signal analogue
- Empty - Full : 60-90 - 0.5 Ohm
- Serie
- Veratron ViewLine Retail
- Lens
- Plastic double anti-fog
- Color
- Black
- IP Class front
- IP67 (IEC 60529)
- Input
- Analog
- Installation dimension
- 52 mm - 2 1/16 Inch
- Functionality
- EU Tubular pipe sender 90-0 Ohm
- Bezel Interchangeable
- Yes - Clip-on
- Bezel model
- Black triangle
- Communication
- Analog
- Category
- Fuel level gauges
- Article status
- Discontinued product
