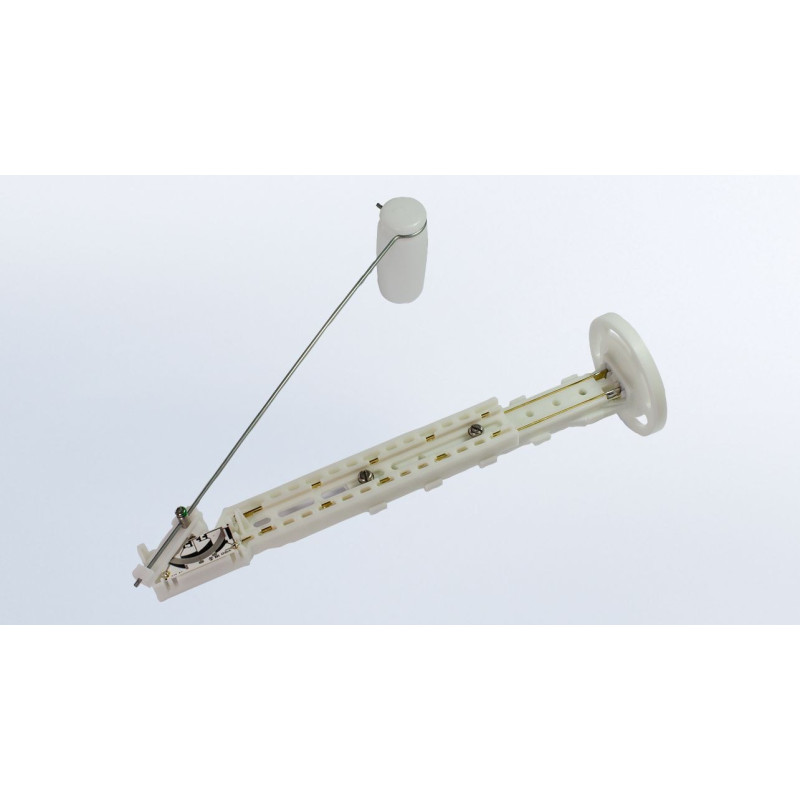

A2C1364580001 VDO Fuel Siphon Float 150-600mm Adjustable 240 - 33.5 Ohm
search
  • A2C1364580001 VDO Fuel Siphon Float 150-600mm Adjustable 240 - 33.5 Ohm

VDO Fuel Siphon Float 150-600mm Adjustable 240 - 33.5 Ohm

€127.05 (tax incl.)

€105.00 (VAT Excl.)

Part-number:

VDO A2C1364580001

  • For 1 fuel gauge
  • Tank depth: 150 - 600 mm (Adjustable)
  • 5-Hole SAE Flange 54 mm
  • Resistance empty-full: 240 - 33.5 Ohm
  • Retail Packaging 1 Plastic siphon float sensor
Logistical information:
Available to orderClick here for detailed information.
  • HS Code: 90261000
  • Ean Code: 7640178725102
  • Weight: 0.40kg
Quantity

Technical description Fuel Lever float sensor:

VDO A2C1364580001 specifications:

Mechanical properties:

Tank depth: 150 mm - 600 mm
Mounting flange: 5-Hole SAE 54 mm
Operating Temperature: -25 °C to +65 °C
Fuel: Oil - petroleum - diesel - petrol

Electrical properties:

Supply voltage: 6 - 24 V DC
Resistance value empty: 240 Ohms ± 1.5 Ohms
Resistance value full: 33.5 Ohms
Warning contact: None
Warning function: Optional VDO A2C59510886 Makepoint Switch

Datasheets and tables:

VDO 2012 EN-DE Lever arm sender: Page 4

Retail packaging:

  • VDO A2C1364580001 Fuel siphon float level sensor
  • N05-801-432 Mounting kit
  • VDO Sensors are - unless otherwise stated - supplied without connection material
A2C1364580001

Data sheet

Measuring range
240 - 33.5 Ohm
Warning contact
None
Supply voltage
6 - 24 Volt DC
Adjustable sensor
Yes
Packaging
VDO Sensor retail packaging
Application
VDO Level measurement
Tank depth range
Adjustable: 150mm - 600mm
Signal analog
Empty - Full : 240 - 33 Ohm
Sensor type
Fuel siphon sensors as standard
Sensor signal
Isolated from mass
Country of origin
Switzerland
Installation size
54mm SAE 5-Hole Flange
Functionality
Fuel level and pump
Connector type
Flat plug 6.3 x 0.8 mm
Communication
Analogue
Category
Fuel level sensors
Article status
Available to order

Specific References

EAN13
7640178725102
MPN
A2C1364580001
